Trade Discount 33%

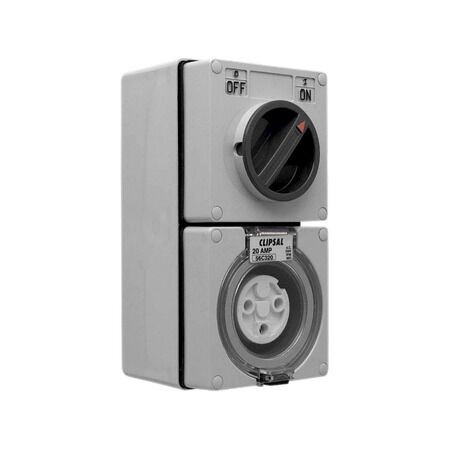

Switched Socket Outlet 250V 20A | IP66 | 3 Round PIN | Chemical Grey by Clipsal
Switched socket outlet with 250V, 20A capacity and IP66 rating—ideal for industrial and commercial use. Built for durability, with 3 round pins and chemical grey finish for robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 250V, 20A, 3 Round PIN, IP66, 1 Pole Chemical Grey
Brand: Clipsal
SKU: 56C320-GY
Alternatively Known As: Clipsal 56 Series Socket, 250V Socket Outlet, Industrial Socket Outlet
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 250V AC 50Hz
- Number of poles: 3
- Number of power socket outlets: 1
- Protection type: Without protection
- Connections - terminals: Screw terminals for cables 2.5-6 mm²
- Material: ABS housing, phosphor bronze pins
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1 kg
Key Features
- IP66 rated for protection against dust and water.
- Designed for surface mounting with screw terminals.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended.
Applications
- Industrial: Small commercial, industry, utility
Standards & Compliance
- Complies with AS/NZS 3123 and AS/NZS 3133 standards.
Environmental Benefits
- Compliant with RoHS directives, contributing to reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications.
