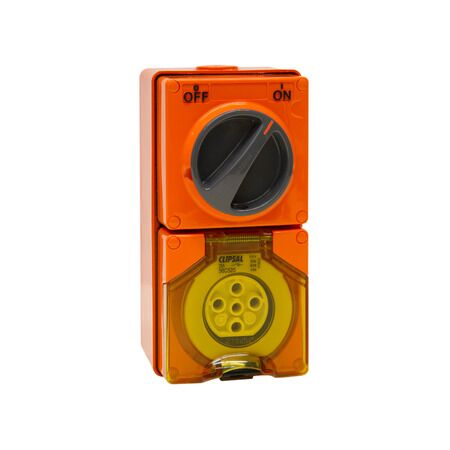

Switched Socket Outlet 500V 20A | 5 Round PIN | IP66 Surface Mount by Clipsal
Switched socket outlet with 500V and 20A rating, featuring a 5 round pin configuration and IP66 protection—ideal for industrial applications. Built for secure connections, with surface mount design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 500V, 20A, 5 Round PIN, IP66, 3 Pole, Surface Mount - Woolworths Grey
Brand: Clipsal
SKU: 56C520-WW
Alternatively Known As: Clipsal 56 Series Socket, 500V Socket Outlet, Industrial Socket Outlet
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 500V AC 50Hz
- Number of poles: 5
- Device mounting: Surface
- Connections: Screw terminals for cables 2.5-6 mm²
- Material: ABS housing, phosphor bronze pins
- Ambient temperature range: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1.066 kg
Key Features
- IP66 rated for protection against dust and water
- 5 round pin configuration for secure connections
- Surface mount design for easy installation
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Small commercial, utility, and industry applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 standards.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for industrial applications.
