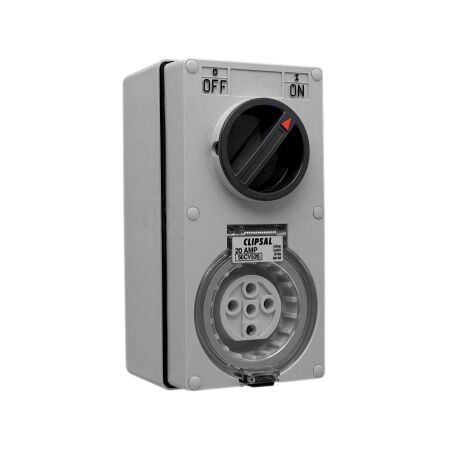

Switched Socket Outlet 500V 20A | 5 Round PIN | IP66 Vertical by Clipsal
Switched socket outlet with 500V and 20A rating, featuring 5 round pins and IP66 protection—ideal for industrial and commercial power supply. Built for robust performance, with surface-mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 500V, 20A, 5 Round PIN, IP66, 3 Pole, Vertical - Resistant Orange
Brand: Clipsal
SKU: 56CV520-RO
Alternatively Known As: Clipsal 56 Series Socket, Industrial Socket Outlet, 5 Round Pin Socket
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 500V AC 50Hz
- Number of poles: 5
- Device mounting: Surface
- Connections: Screw terminals for cables 2.5-16 mm²
- Material: Polycarbonate cover, phosphor bronze pins
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1.015 kg
Key Features
- IP66 rated for protection against dust and water
- Rated for 500V and 20A for robust power supply
- Surface mounted design for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial utilities
Standards & Compliance
- Complies with AS/NZS 3123 and AS/NZS 3133 standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications.
