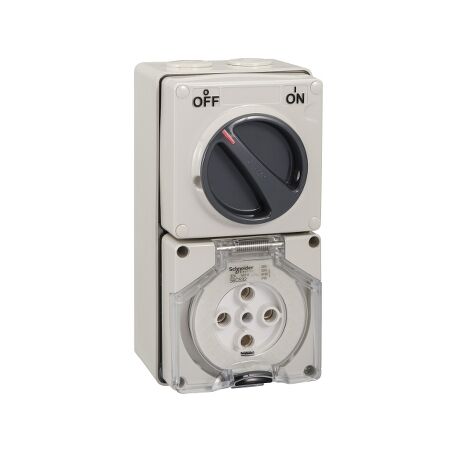

Switched Socket Outlet 500V 32A | 5 Round PIN | IP66 Surface Mount by Clipsal
Switched socket outlet with 500V and 32A rating, featuring a 5 round pin configuration and IP66 protection—ideal for industrial and commercial power supply. Built for secure connections, with surface mount design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 500V, 32A, 5 Round PIN, IP66, 3 Pole, Surface Mount - Grey
Brand: Clipsal
SKU: 56C532-GY
Alternatively Known As: Clipsal 56 Series Socket, Industrial Socket Outlet, 32A Socket Outlet
Technical Specifications
- Rated current: 32A
- Rated operational voltage: 500V AC 50Hz
- Number of poles: 5
- Device mounting: Surface mount
- Connections: Screw terminals for cables 4-16 mm²
- Material: ABS housing, phosphor bronze pins
- Ambient temperature range: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1.112 kg
Key Features
- IP66 rated for protection against dust and water
- 5 round pin configuration for secure connections
- Rated for 32A and 500V AC
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications
Standards & Compliance
- Complies with AS/NZS 3123 and AS/NZS 3133 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications.
