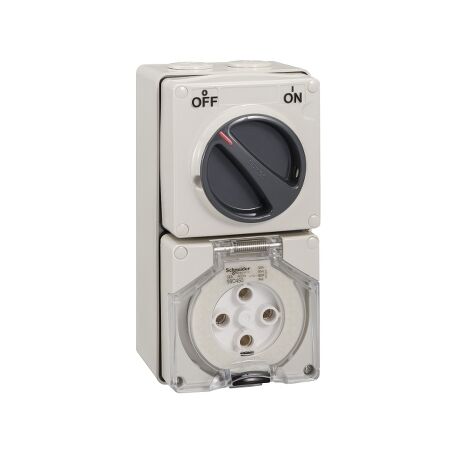

Switched Socket Outlet 500V 50A | 4 Round PIN | IP66 Grey by Clipsal
Switched socket outlet with 500V and 50A rating, featuring 4 round pins and IP66 protection—ideal for industrial and commercial power supply. Built for durability, with surface mounting and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 500V, 50A, 4 Round PIN, IP66, 3 Pole Grey
Brand: Clipsal
SKU: 56C450-GY
Alternatively Known As: Clipsal 56 Series Socket, Industrial Socket Outlet, 50A Switched Socket
Technical Specifications
- Number of poles: 4
- Rated current: 50A
- Rated operational voltage: 500V AC 50Hz
- Protection type: Without protection
- Connections: Screw terminals for cables 10-16 mm²
- Material: Polycarbonate cover, phosphor bronze pins
- Ambient air temperature for operation: -25 to 75 °C
- Standards: AS/NZS 3123, AS/NZS 3133
- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1.25 kg
Key Features
- IP66 rated for protection against dust and water
- Designed for surface mounting
- Rated for 50A at 500V AC
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications requiring robust power solutions
Standards & Compliance
- Complies with AS/NZS 60529 for IP66 rating.
Environmental Benefits
- Compliant with RoHS directives, reducing harmful substances in manufacturing.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications.
