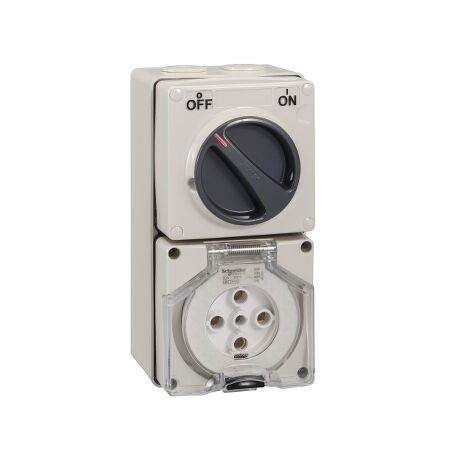

Switched Socket Outlet 500V 50A | 5 Round PIN | IP66 Surface Mount by Clipsal
Switched socket outlet with 500V and 50A rating, featuring 5 round pins and IP66 protection—ideal for industrial and commercial use. Built for durability, with surface mount design and robust ABS housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 500V, 50A, 5 Round PIN, IP66, 3 Pole, Surface Mount Chemical Grey
Brand: Clipsal
SKU: 56C550-GY
Alternatively Known As: Clipsal 56 Series Socket, 5 Round Pin Socket, Industrial Socket Outlet
Technical Specifications
- Rated current: 50A
- Rated operational voltage: 500V AC 50Hz
- Number of poles: 5
- Device mounting: Surface
- Connections: Screw terminals for cables 10-16 mm²
- Material: ABS housing, phosphor bronze pins
- Ambient temperature range: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1.284 kg
Key Features
- IP66 rated for protection against dust and water
- Designed for surface mounting
- Rated for 50A and 500V AC
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications
Standards & Compliance
- Complies with AS/NZS 3123 and AS/NZS 3133 standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and small commercial applications.
