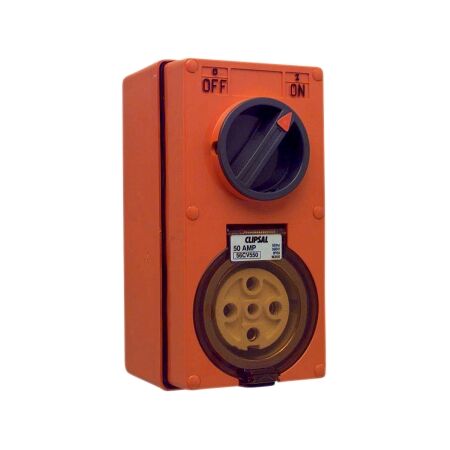

Switched Socket Outlet 500V 50A | 5 Round PIN | IP66 Vertical by Clipsal
Switched socket outlet with 500V and 50A capacity—ideal for industrial and commercial use. Built for heavy-duty applications, with IP66 rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket Outlet, 500V, 50A, 5 Round PIN, IP66, 3 Pole, Vertical - Grey
Brand: Clipsal
SKU: 56CV550-GY
Alternatively Known As: Industrial Socket Outlet, Heavy Duty Socket, 5 Round Pin Socket
Technical Specifications
- Rated current: 50A
- Rated operational voltage: 500V AC 50Hz
- Number of poles: 5
- Device mounting: Surface
- Connections: Screw terminals for cables 10-25 mm²
- Material: Polycarbonate cover, phosphor bronze pins
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1.27 kg
Key Features
- IP66 rated for protection against dust and water
- Designed for heavy-duty applications with a rated current of 50A
- Surface mounted for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, workshops, and commercial buildings
- Utility: Power supply for heavy machinery and equipment
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 for safety and performance.
Environmental Benefits
- Compliant with RoHS regulations, ensuring reduced environmental impact.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal 56 Series Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power supply.
