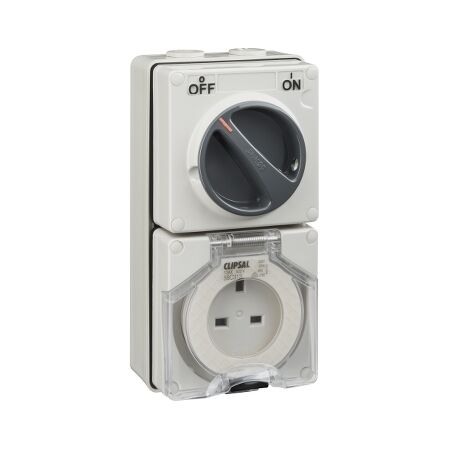

Switched Socket Surface IP66 | 13A 250V | Grey by Clipsal
Switched socket with IP66 rating and 13A capacity—ideal for industrial and utility applications. Built for surface mounting, with easy screw terminal installation and robust polycarbonate construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket, Surface Ip56 3 PIN 13A Grey
Brand: Clipsal
SKU: 56C313-GY
Alternatively Known As: Clipsal 56 Series Socket, IP66 Socket, 13A Switched Socket
Technical Specifications
- Rated current: 13A
- Rated operational voltage: 250V AC 50Hz
- Number of poles: 1
- Number of power socket outlets: 1
- Protection type: Without protection
- Connections - terminals: Screw terminals for cables 1.5-6 mm²
- Material: Polycarbonate cover, phosphor bronze pins
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 204mm x 83mm x 101mm
- Weight: 0.72 kg
Key Features
- IP66 rated for superior protection against dust and water.
- Designed for surface mounting with screw terminals for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Small commercial, utility, and industry applications
Standards & Compliance
- Complies with AS 60529 for IP66 rating and BS 1363-1 for safety standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Switched Socket Surface IP56 3 PIN 13A Grey is available now for immediate purchase. Ideal for industrial applications requiring reliable power supply.
