Trade Discount 33%

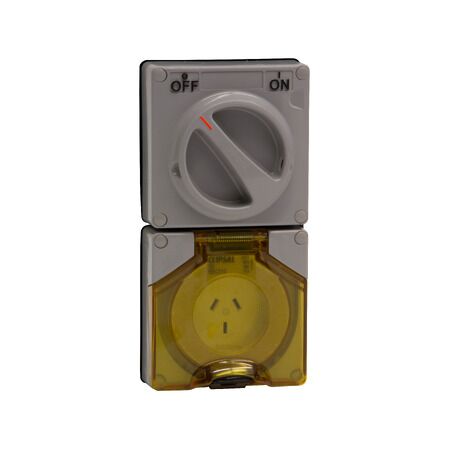

Switched Socket Surface IP66 3 PIN 10A | 250V AC | Grey by Clipsal
Switched socket with IP66 rating and 3 PIN 10A capacity—ideal for industrial and small commercial applications. Built for durability, with surface mounting and screw terminals for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switched Socket, Surface IP66 3 PIN 10A Grey
Brand: Clipsal
SKU: 56C310LE-RO
Alternatively Known As: Clipsal 56 Series Socket, IP66 Socket, 10A Switched Socket
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Number of poles: 3
- Number of power socket outlets: 1
- Protection type: Without protection
- Connections: Screw terminals for cables 1.5-6 mm²
- Material: Polycarbonate cover, phosphor bronze pins
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 198mm x 45mm x 101mm
- Weight: 0.404 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Designed for surface mounting with screw terminals.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Utility: Suitable for small commercial applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS/NZS 3123 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal 56 Series Switched Socket Surface IP66 3 PIN 10A is available now for immediate purchase. Ideal for industrial and small commercial applications.
