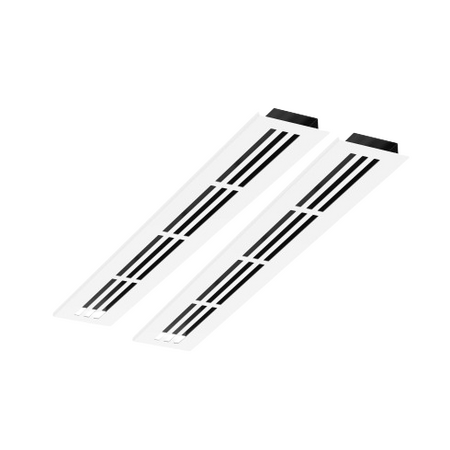

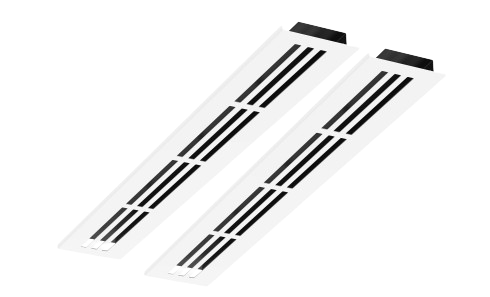

'T-Bar Recessed Air Flow Frame 400x1200mm for Matrix Panels Haneco'
'Haneco T-bar recessed frame features 400x1200mm size, air flow slots and T-bar grid mounting. Ideal for installing Matrix panels in T-bar ceilings.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Vented Recessed Panel Frame, T-Bar Panel Frame, Air Flow Ceiling Frame, Haneco Matrix Panel Frame
Technical Specifications
- Product Code: RF0412-AF
- SAP Number: 2001091
- Application: T-bar recessed mounting for 400 x 1200 mm LED panels
- Frame Type: Vented recessed air flow frame
- Material: Steel
- Finish: White
- Compatible Products: PANNELLO, MATRIX LG Sensor, MATRIX EVO, MATRIX G4, PANNELLO G2 and MATRIX EVO G2
- Manufacturer Dimensions: 1196 x 397 x 40 mm
- Installation: Ceiling-mounted within a suspended T-bar grid
- Weight: Approximately 2.0 kg; estimated because Haneco does not publish a product weight
- Dimensions (H x L x W): 40mm x 1196mm x 397mm
- Weight: 2 kg
Key Features
- Provides a recessed mounting solution for compatible 400 x 1200 mm LED panels
- Air flow slots support ventilation around the recessed panel installation
- Designed for suspended T-bar ceiling grids
- White steel frame suits commercial interior ceiling applications
- Compatible with multiple Haneco panel ranges, including MATRIX G4
- Suitable for offices, retail areas, showrooms, medical facilities and other commercial spaces
Professional Installation Requirements
- The frame is a passive mechanical accessory and may be fitted by a competent ceiling or lighting installer. Electrical connection and commissioning of the compatible LED panel must be performed by a licensed electrician in accordance with the panel installation instructions.
Applications
- Recessed installation of Haneco Matrix LED panels
- Suspended T-bar ceiling systems
- Commercial offices and boardrooms
- Retail spaces and showrooms
- Medical, hospitality and educational interiors
- Manufacturing and general commercial areas
Standards & Compliance
- AS/NZS 60598.2.2:2026 is relevant to recessed and recessed air-handling luminaires used with this frame; the frame itself is a passive mounting accessory and is not identified as a standalone luminaire compliance product.
Environmental Benefits
- Steel construction is recyclable at end of service life
- Air-flow design can help manage heat around the installed panel and support product longevity
- Reusable mounting accessory can reduce replacement waste when compatible panels are upgraded
Warranty Information
Haneco standard product warranty covers manufacturing defects for 3 years unless otherwise stated, generally by direct replacement. Warranty conditions require installation according to Haneco instructions; electrical work must be completed by a licensed electrician. ([haneco.com.au](https://haneco.com.au/support/?utm_source=openai))
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors. ([haneco.com.au](https://haneco.com.au/products/mounting-supports-panels/?utm_source=openai))
