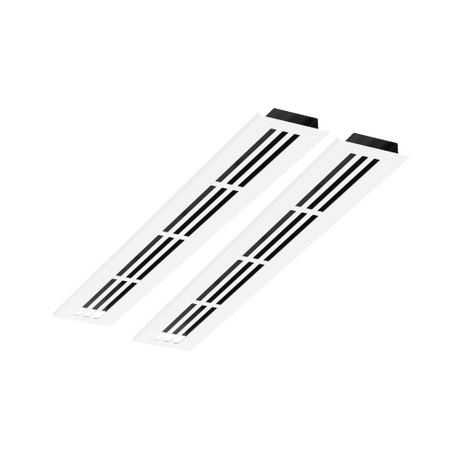

'T-Bar Recessed Air Flow Frame to Suit 300x1200mm Panel Haneco'

BRAND: Haneco
SKU: RF0612-AF
$188.30 List price: $251.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
'Haneco T-bar recessed frame features air flow slots, recessed design and 300x1200mm panel fit. Ideal for T-bar ceilings with air flow requirements.'

Alternatively Known As: Haneco Vented Recessed Panel Frame, Haneco T-Bar Air Flow Frame, RF0612-AF

Technical Specifications
  • Product Code: RF0612-AF
  • SAP Code: 2000410
  • EAN: 9353931002225
  • Frame Type: Vented recessed frame
  • Compatible Panel Size: 300 x 1200 mm
  • Material: Aluminium
  • Finish: White
  • Mounting Application: Grid or T-bar suspended ceilings
  • Construction: Two-piece frame
  • Airflow Feature: Integrated ventilation slots
  • Dimensions (H x L x W): 10.5mm x 1196mm x 596mm
  • Weight: 0.9 kg
Key Features
  • Designed for recessed installation in T-bar suspended ceilings
  • Provides airflow around compatible LED panel fittings
  • White powder-coated aluminium construction
  • Two-piece design supports handling and installation
  • Compatible with selected Haneco Matrix, Pannello and Galaxy panel ranges
  • Suitable for commercial, office, education, retail and other interior applications
Professional Installation Requirements
  • Installation should be completed by a suitably qualified ceiling or electrical tradesperson where required, in accordance with the panel manufacturer's instructions and the suspended-ceiling system requirements.
Applications
  • T-bar suspended ceilings
  • Commercial offices
  • Schools and education facilities
  • Retail stores and showrooms
  • Medical and healthcare facilities
  • Boardrooms and meeting rooms
  • Storage and function areas
Standards & Compliance
  • Installation context: AS/NZS 2785:2020 Suspended ceilings — Design and installation
Environmental Benefits
  • Aluminium construction is recyclable at end of service life
  • Vented design can assist airflow and heat management around the LED panel
  • Durable powder-coated construction can support extended service life and reduce replacement waste
Warranty Information

Haneco standard product warranty: 3 years against manufacturing defects unless otherwise stated. Warranty is generally provided as a replacement product through the original supplier, subject to Haneco's warranty terms.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
