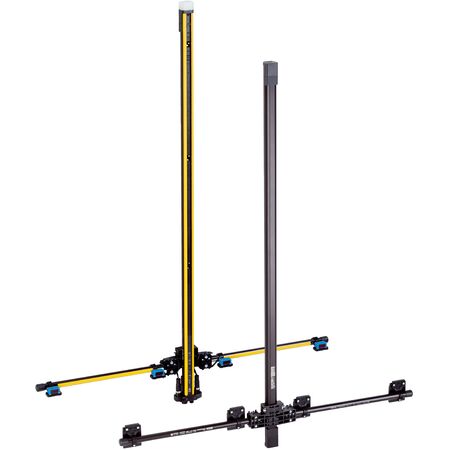

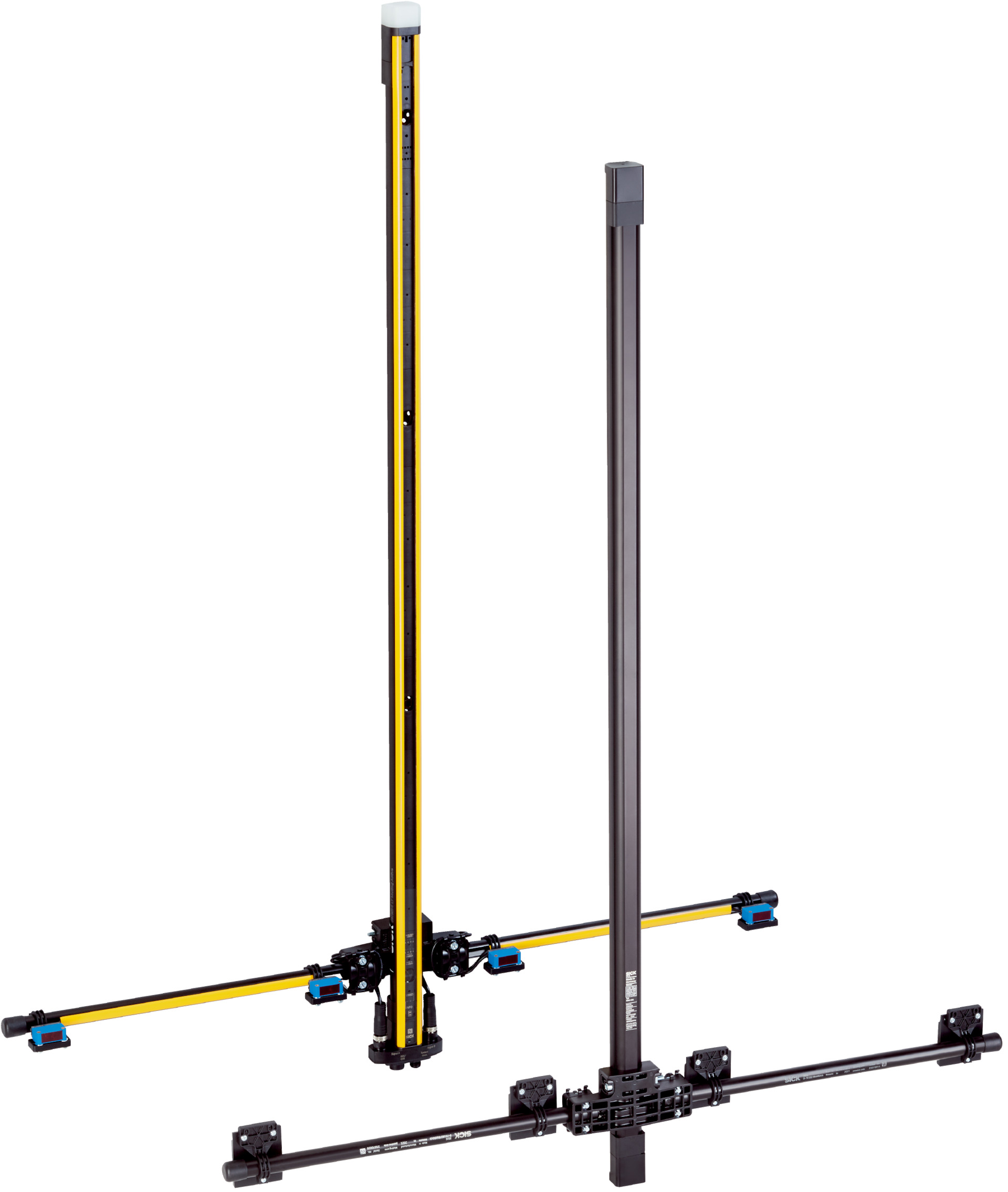

T-muting Safety Light Curtain | Active/Passive Muting | 4 Beams & 300 mm Beam Separation | by SICK
The T-muting safety light curtain is designed for industrial automation safety, featuring an active/passive muting system with 4 beams and a 300 mm beam separation. With a rapid response time of 20 ms, it ensures quick safety reactions, making it ideal for machine guarding and material handling systems. Built to withstand harsh environments, it boasts an IP65/IP67 rated enclosure and is perfect for applications requiring reliable safety measures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: deTem4 LT Muting A/P
- Functional principle: Active/passive muting
- Scanning range: 3.2 m
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 20 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 6.8 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 7 W
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Enclosure rating: IP65/IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 200mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Active/passive muting system with 4 beams and 300 mm beam separation
- Response time of 20 ms for fast safety reaction
- End cap with integrated LED for alignment and status indication
- Beam coding and restart interlock for enhanced safety
- Differentiation between man and material with T muting
- Concurrence monitoring and total muting time monitoring
- Sensor gap monitoring and muting with override
- Entry and exit monitoring with end of muting by ESPE
- Near Field Communication (NFC) for configuration and diagnostics
- Protection class III with 24 V DC supply voltage
- IP65 and IP67 rated enclosure for harsh environments
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtains and industrial safety standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety
- Machine guarding in manufacturing
- Material handling systems requiring muting
- Normal industrial environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces machine downtime and waste by preventing accidental shutdowns
- Durable IP65/IP67 rated design minimizes replacement frequency
- Energy-efficient 24 V DC operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK deTem4 LT T-muting safety light curtain is available for immediate purchase, ideal for industrial safety and machine guarding applications.
