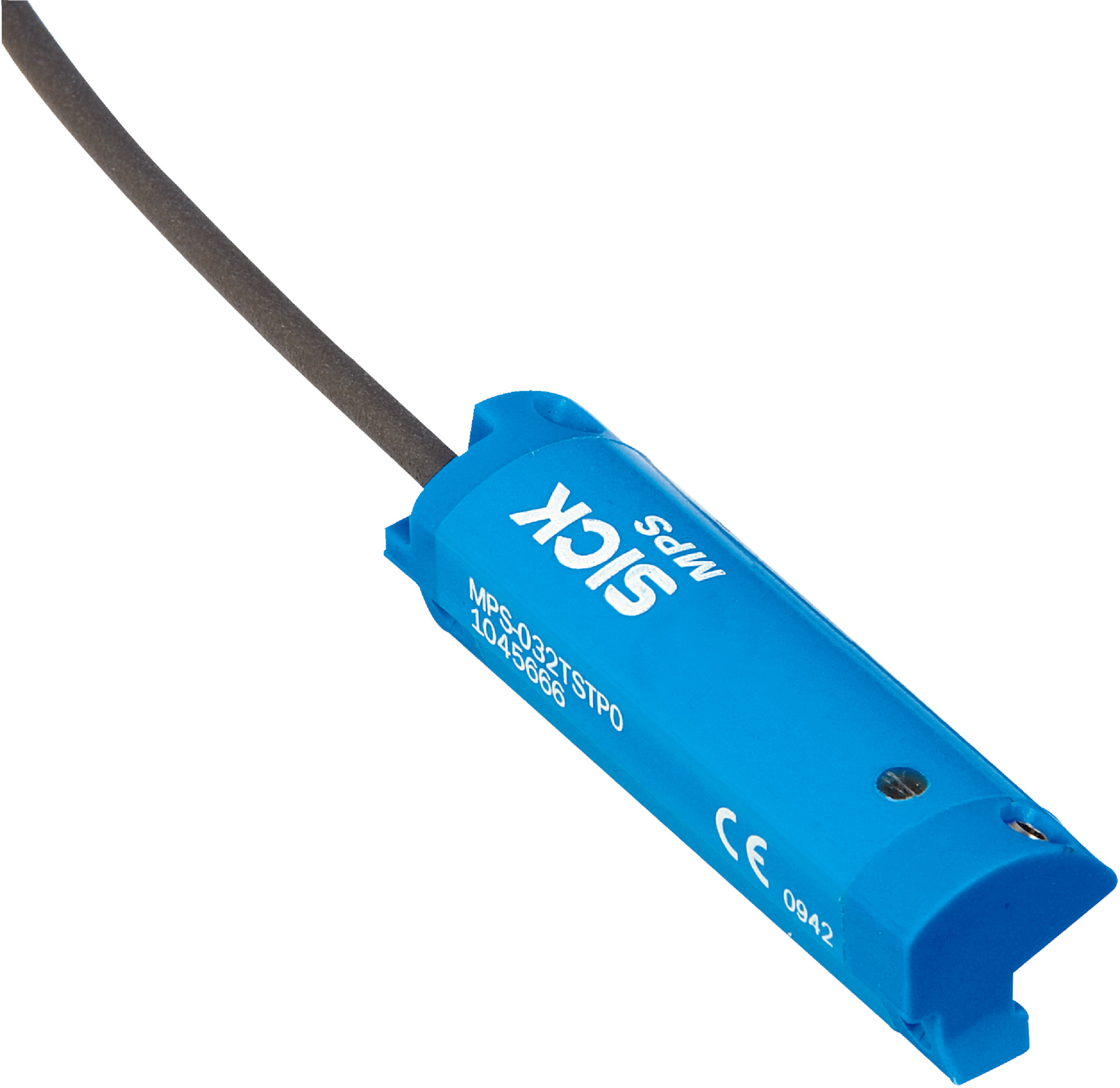

T-slot Cylinder Position Sensor | Analog Output 0-10V | IP67 Rated | by SICK
The T-slot Cylinder Position Sensor is designed for precise analog position feedback in industrial automation. With an analog output range of 0 V to 10 V and 4 mA to 20 mA, it’s perfect for pneumatic and hydraulic cylinder monitoring. Built to withstand harsh environments with an IP67 rating, this sensor ensures reliable performance across a wide temperature range of -20 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: T-slot Cylinder Position Sensor | Analog Output 0-10V | IP67 Rated | by SICK
Brand: SICK
SKU: 1050919
Alternatively Known As: Cylinder Position Sensor, Analog Cylinder Sensor, T-slot Cylinder Sensor, SICK Position Sensor
Technical Specifications
- Measuring range: 64 mm
- Housing length: 77 mm
- Output function: Analog voltage 0 V to 10 V and current 4 mA to 20 mA
- Electrical wiring: DC 4-wire
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 22 mA without load
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 1.5 s
- Magnetic field sensitivity: 4 mT to 30 mT
- Resolution: 0.03% FSR (max ≥ 0.05 mm)
- Linearity error: 0.3 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection included
- Connection type: 4-wire cable, 2 m length, PUR material
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-7
- Dimensions (H x L x W): 20mm x 77mm x 20mm
- Weight: 0.2 kg
Key Features
- T-slot cylinder type compatible with various cylinder profiles
- Analog output with voltage (0 V to 10 V) and current (4 mA to 20 mA) options
- High protection rating IP67 for harsh environments
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring precise analog position feedback
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (22 mA without load) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-064TSNU0 Analog T-slot Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
