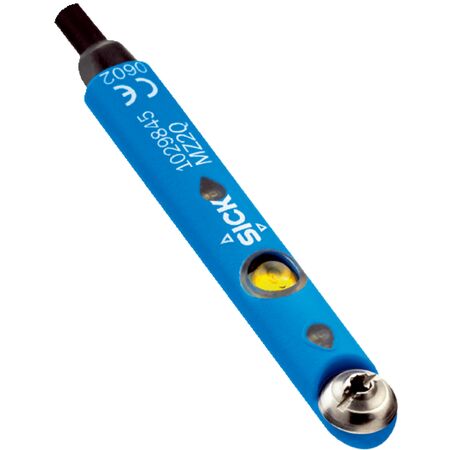

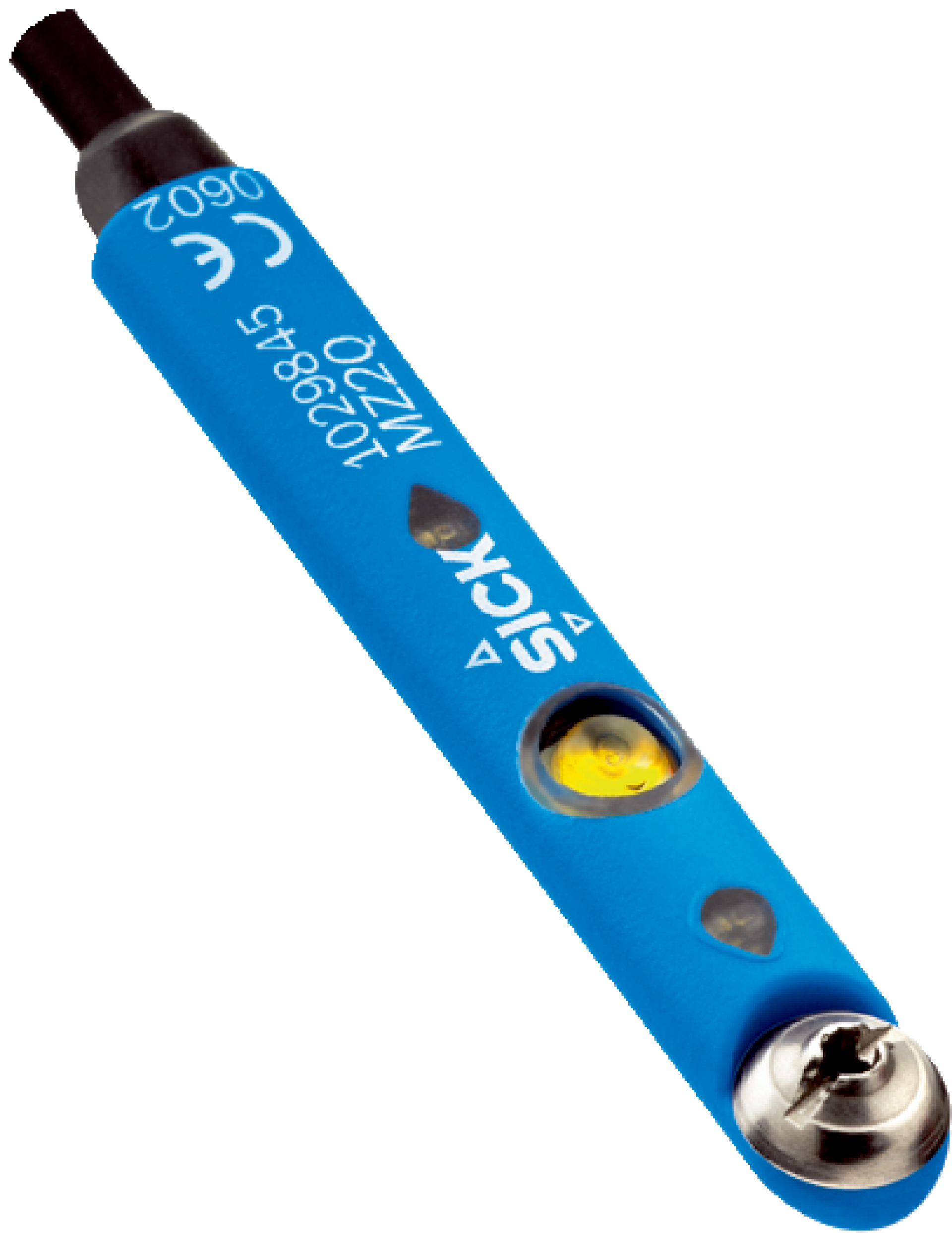

T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | 2 x PNP Outputs | IP67 Rated | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position detection, featuring a detection zone from 0 mm to 50 mm and dual PNP switching outputs. Ideal for industrial automation, this sensor is built to withstand harsh environments with its IP67 rated enclosure, ensuring reliable performance and longevity in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | 2 x PNP Outputs | IP67 Rated | by SICK
Brand: SICK
SKU: 1041323
Alternatively Known As: T-slot Cylinder Sensor, Magnetic Cylinder Sensor, PNP Cylinder Position Sensor, SICK Cylinder Sensor MZ2Q
Technical Specifications
- Cylinder type: T-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x normally open contacts
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator: LED
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Operating temperature range: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC compliance: According to EN 60947-5-2
- Connection type: Cable with M12 4-pin connector, 0.3 m length
- Cable diameter: 2.6 mm
- Cable outlet: Axial
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 40mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M12 4-pin connector, 0.3 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper function and safety.
Applications
- Industrial automation for cylinder position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (typ. 25 mA) supports energy efficiency
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-FTZPS-KQ0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
