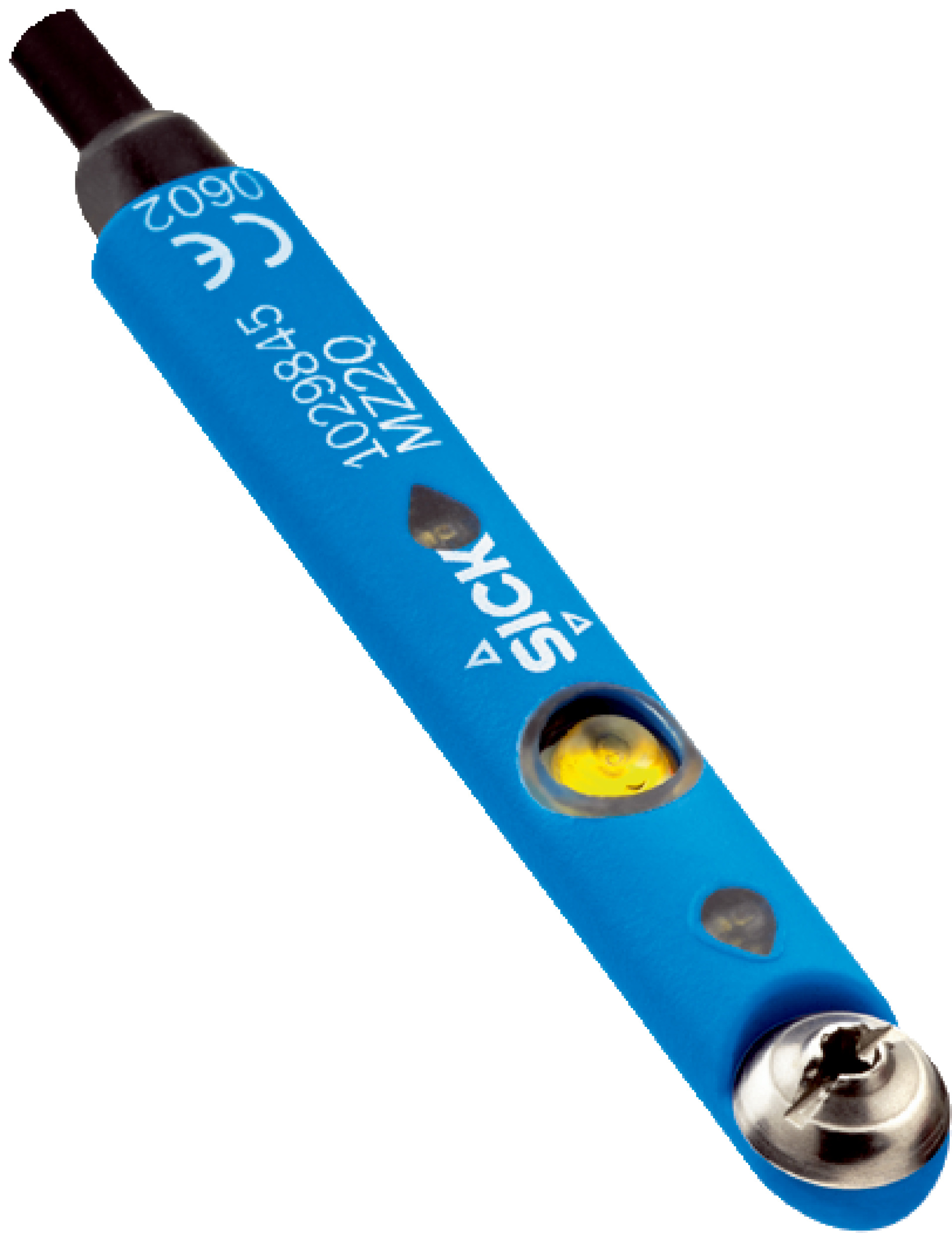

T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | IP67 Rated | IO-Link Communication | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position detection with a detection zone of 0 mm to 50 mm. Featuring dual PNP switching outputs and IP67 protection, it's perfect for industrial automation in harsh environments. With low power consumption and robust construction, this sensor ensures reliable operation and minimal downtime, making it an ideal choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | IP67 Rated | IO-Link Communication | by SICK
Brand: SICK
SKU: 1042228
Alternatively Known As: T-slot Cylinder Sensor, IO-Link Cylinder Position Sensor, SICK Cylinder Sensor MZ2Q, Magnetic Cylinder Sensor
Technical Specifications
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: Typical 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Operating temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Connection: Cable with M12 4-pin connector, 0.3 m length
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 2 Bit
- Material: Plastic housing, PUR cable
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Reverse polarity, short-circuit, and power-up pulse protection included
- Dimensions (H x L x W): 15mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor with detection zone 0 mm to 50 mm
- 2 x PNP switching outputs with IO-Link communication
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching points 1 and 2
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M12 4-pin connector, 0.3 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (typ. 25 mA) supports energy efficiency
- Reliable operation minimizes downtime and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

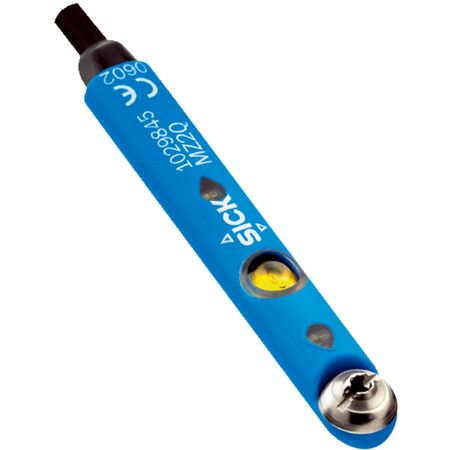

The SICK MZ2Q-TSLPSKQ0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
