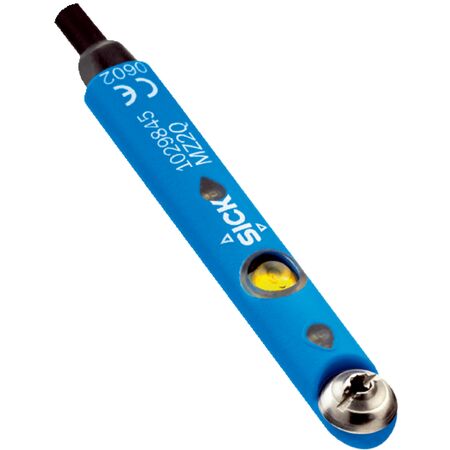

T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | IP67 Rated | IO-Link Communication | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position detection with a detection zone of 0 mm to 50 mm. Featuring IP67 protection, it’s perfect for industrial automation in harsh environments. With reverse polarity and short-circuit protection, this sensor ensures reliable performance, making it ideal for various applications including profile and tie rod cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection zone: 0 mm to 50 mm
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: Typical 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator: LED
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 2 Bit
- Connection type: 4-wire cable, 2 m length, PUR jacket
- Operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Enclosure rating: IP67
- Dimensions (H x L x W): 15mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor with detection zone 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts and IO-Link communication
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching points 1 and 2 with adjustable tolerance band
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration of IO-Link communication.
Applications
- Industrial automation for cylinder position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption (typ. 25 mA) reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZ2Q-TSLPSKU0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
