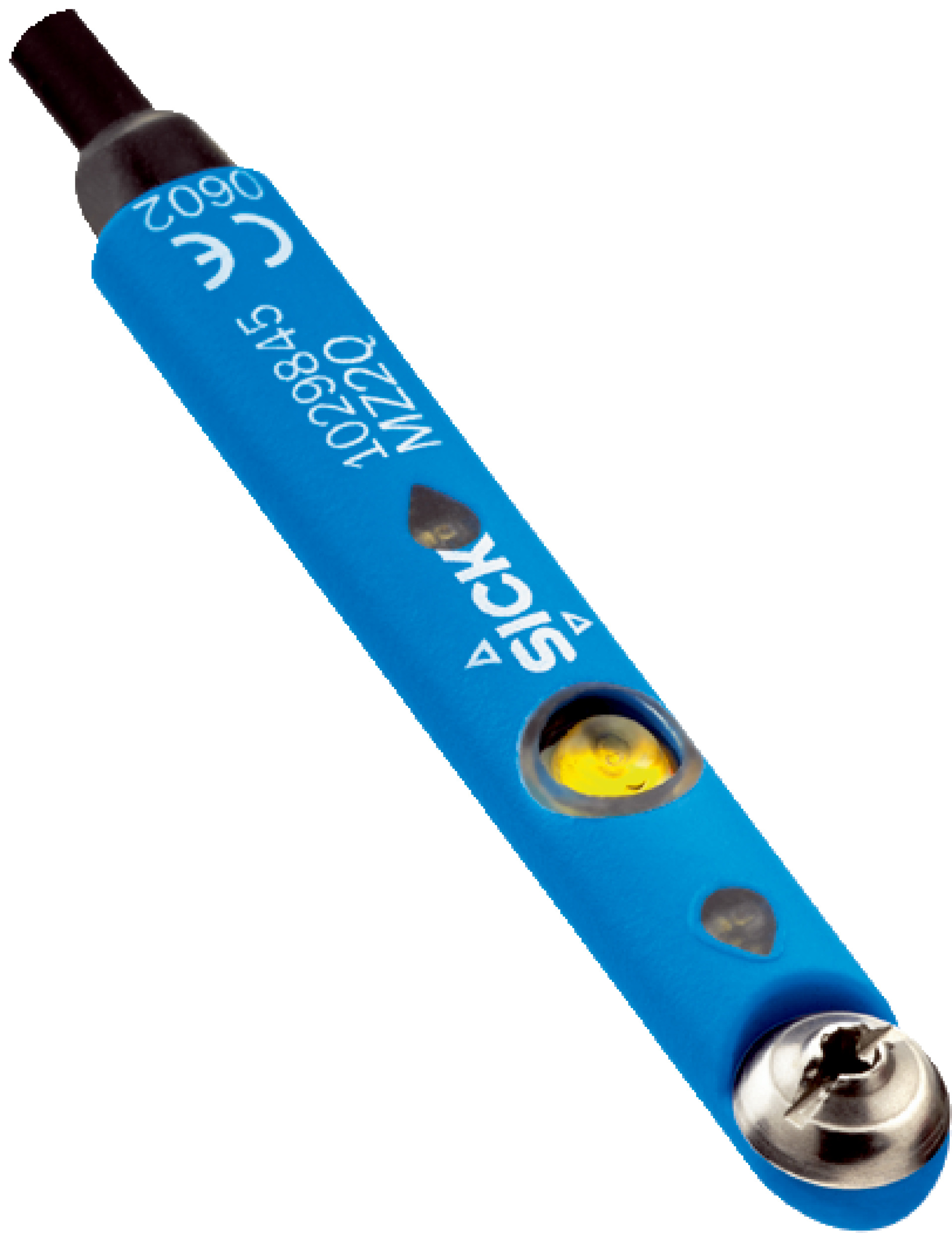

T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | IP67 Rated | IO-Link Communication | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position detection with a detection zone of 0 mm to 50 mm. Ideal for industrial automation, this sensor features IP67 protection for harsh environments and offers reliable IO-Link communication for seamless integration. With low power consumption and robust construction, it ensures durability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection zone: 0 mm to 50 mm
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: Typical 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator: LED
- Ambient operating temperature: –20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 4-pin connector, 0.3 m length
- Housing material: Plastic
- Cable material: PUR
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 40mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor with detection zone 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts and IO-Link communication
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Teach-in control panel for switching points 1 and 2 with adjustable tolerance band
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Communication interface IO-Link V1.0 with 2.3 ms cycle time
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration.
Applications
- Industrial automation for cylinder position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption (typ. 25 mA) reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

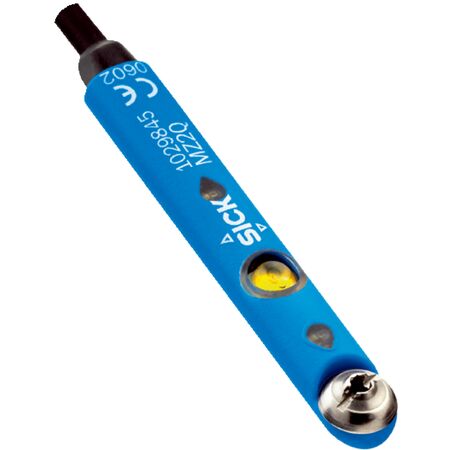

The SICK MZ2Q-TSLPSKR0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
