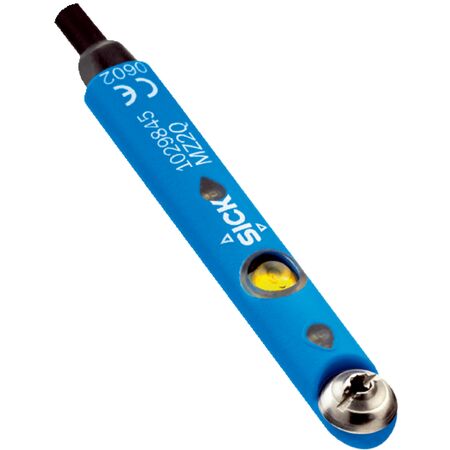

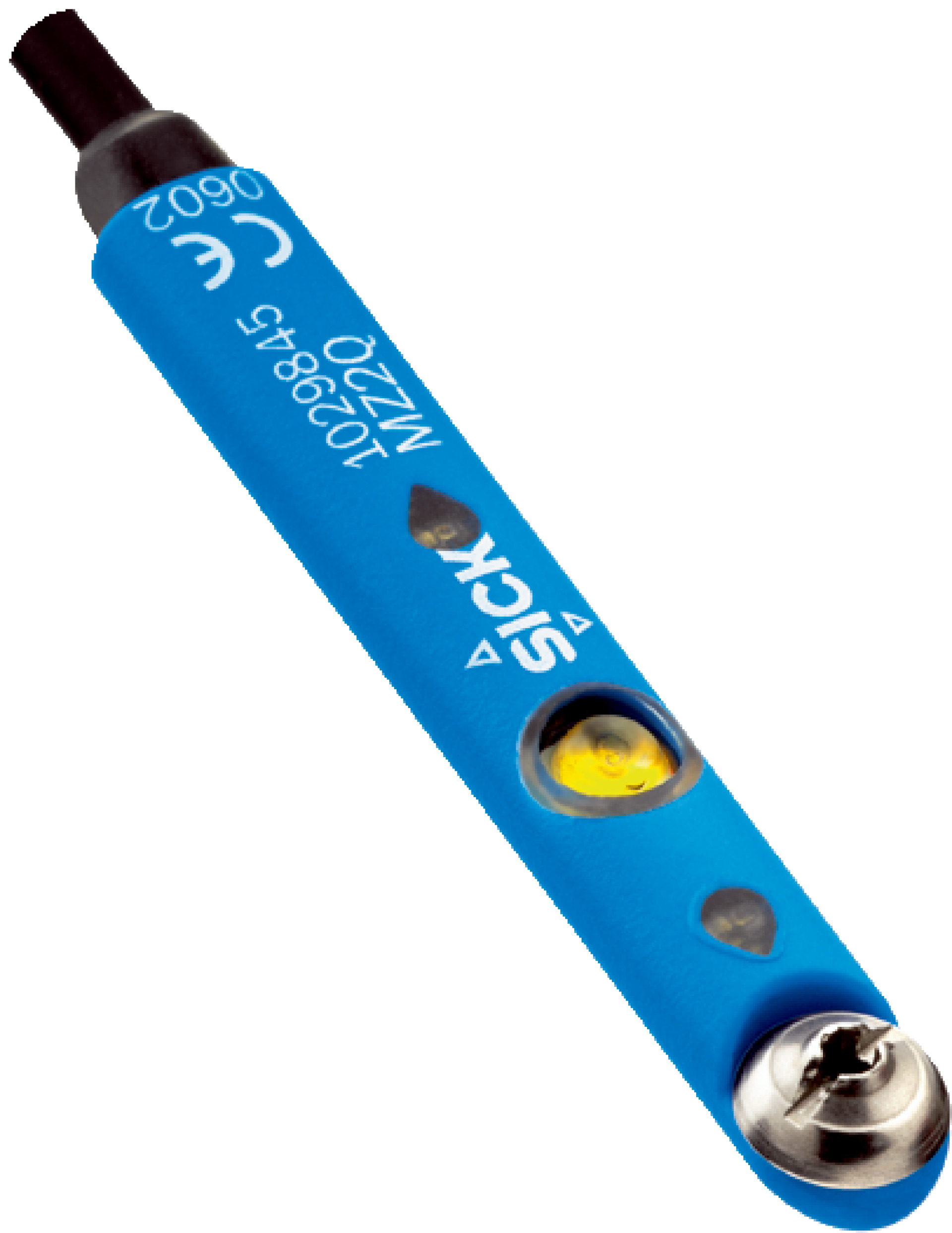

T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | IP67 Rated | PNP Outputs | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position detection with a detection zone ranging from 0 mm to 50 mm. Ideal for industrial automation, this sensor features IP67 protection, ensuring durability in harsh environments. With PNP switching outputs and a teach-in control panel, it offers reliable performance and easy installation for technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection zone: 0 mm to 50 mm
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator: LED
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Operating temperature range: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliance: According to EN 60947-5-2
- Connection: Cable with M12 4-pin connector, 0.8 m length
- Cable diameter: 2.6 mm
- Cable outlet: Axial
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 15mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with N/O contact function
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M12 4-pin connector, 0.8 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (typ. 25 mA) minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZ2Q-TFSPSKQD T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
