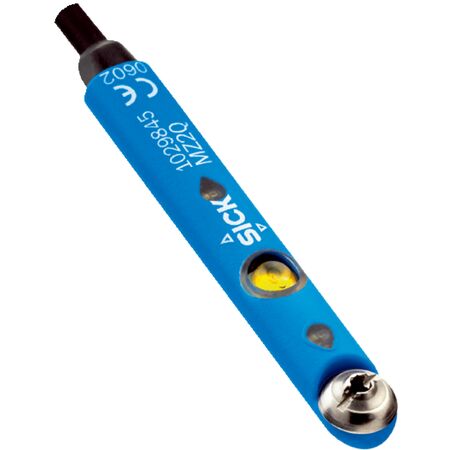

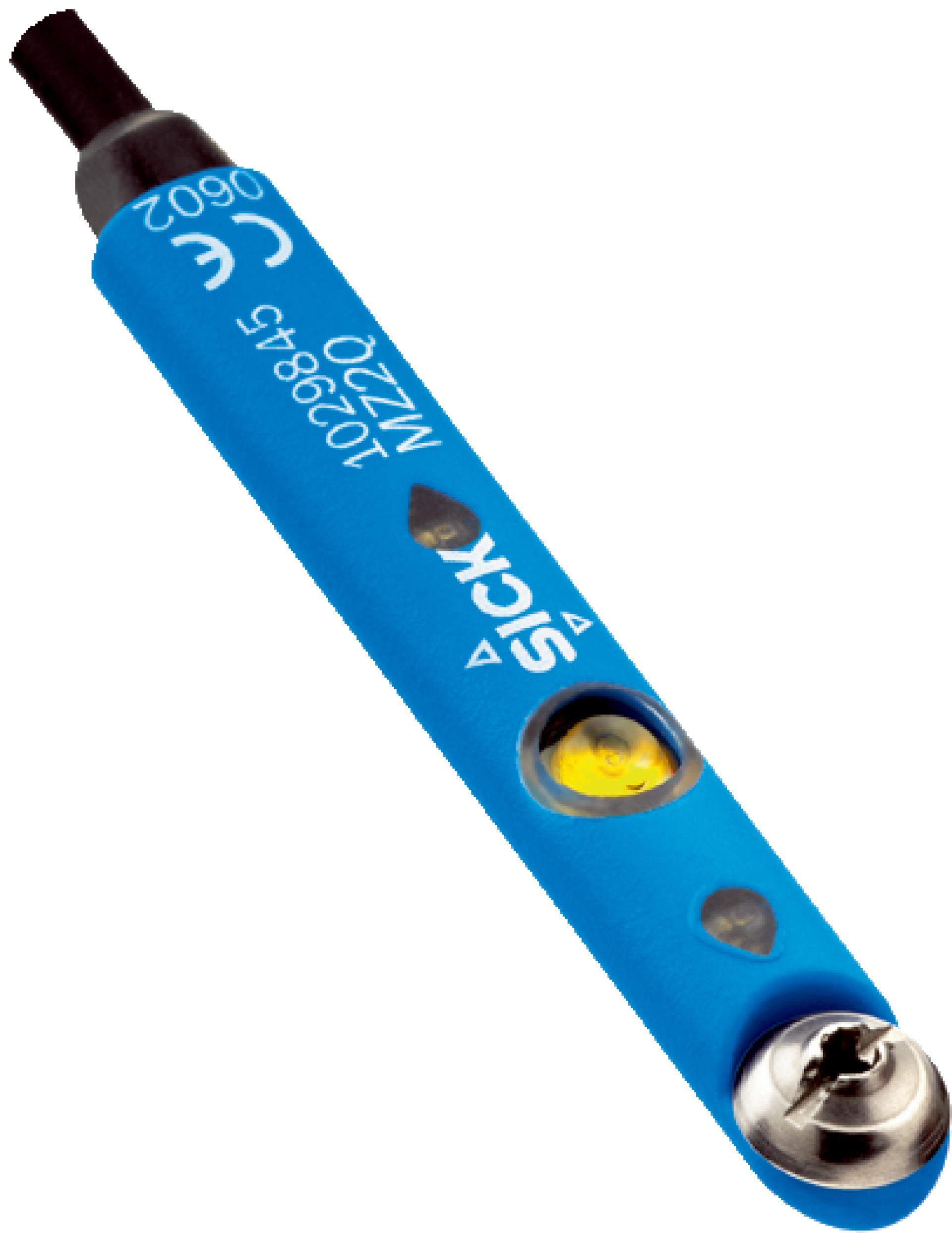

T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | IP67 Rated | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation, featuring a detection zone from 0 mm to 50 mm and dual NPN switching outputs. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for various applications including profile and tie rod cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: T-slot Cylinder Sensor | 0 mm to 50 mm Detection Zone | IP67 Rated | by SICK
Brand: SICK
SKU: 1048103
Alternatively Known As: T-slot Cylinder Sensor, Magnetic Cylinder Sensor, NPN Output Cylinder Sensor, SICK Cylinder Position Sensor
Technical Specifications
- Detection zone: 0 mm to 50 mm
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Connection type: 4-wire cable, 2 m length, axial outlet
- Cable diameter: 2.6 mm
- Material: Plastic housing, PUR cable
- Operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC compliance: According to EN 60947-5-2
- Status indicator: LED
- Protection: Reverse polarity, short-circuit, power-up pulse
- Dimensions (H x L x W): 15mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor
- Detection zone from 0 mm to 50 mm
- 2 x NPN switching outputs with 2 x N/O contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for cylinder position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (typ. 25 mA) minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-FTZNS-KU0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
