T-Slot Cylinder Sensor | Dual PNP Outputs | IP65 & IP67 Rated | High Switching Frequency | by SICK
The T-slot cylinder sensor MZT7-03VPS-KRTS13 features dual PNP switching outputs and a high switching frequency of 1,000 Hz, making it ideal for industrial automation and position sensing on various cylinder types. With robust IP65 and IP67 ratings, this sensor is built to withstand harsh environments, ensuring reliable performance and longevity in your applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Switching output: 2 x PNP, 2 x N/O contact
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP65 and IP67
- Connection type: Cable with M8 4-pin connector, 0.3 m length
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor compatible with multiple cylinder types
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP65 and IP67 enclosure ratings

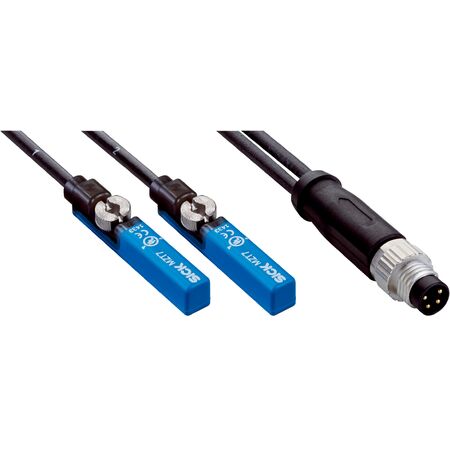

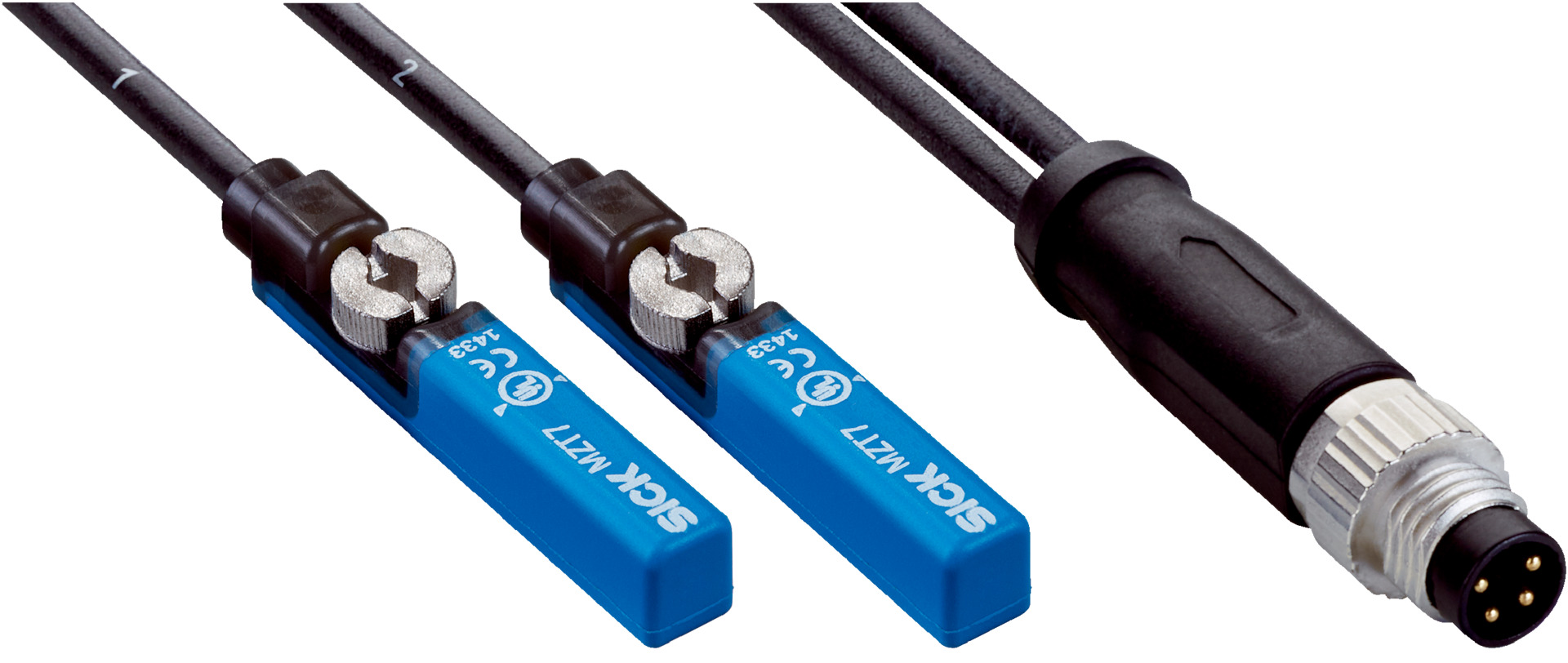

- Two sensor heads on one plug for efficient installation
- Cable with M8 4-pin connector, suitable for drag chain use
- Reverse polarity and short-circuit protection included
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -30°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for environments requiring IP65/IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT7-03VPS-KRTS13 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
