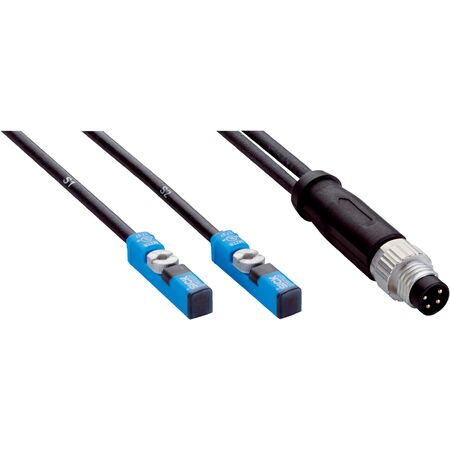

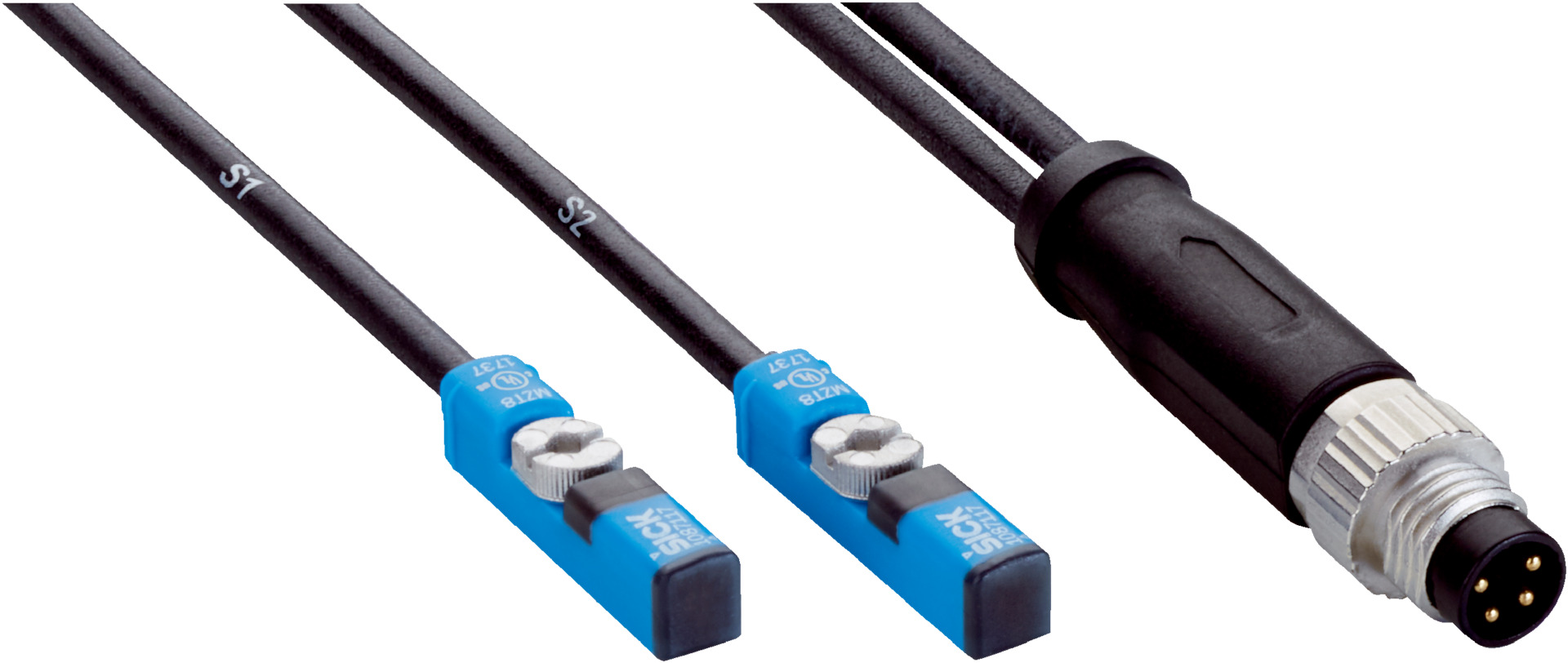

T-slot Cylinder Sensor | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The T-slot Cylinder Sensor MZT8-03VPS-KRTS11 features dual PNP outputs and a high switching frequency of 1,000 Hz, making it ideal for precise cylinder position sensing in industrial automation. With an IP68 rating for dust and water resistance, this sensor is built for durability and reliability in harsh environments, ensuring optimal performance in pneumatic and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 24 mm
- Switching output: 2 x PNP
- Switching frequency: 1,000 Hz
- Output function: 2 x N/O contact
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Time delay before availability: 25 ms
- Response sensitivity (typical): 2.6 mT
- Overrun distance (typical): 3 mm
- Hysteresis (typical): ≤ 0.5 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with connector M8, 4-pin, 0.3 m length
- Cable specifications: PUR cable, 0.14 mm² conductor cross section, 2.9 mm diameter, axial outlet
- Dimensions (H x L x W): 24mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile, tie rod, round body, dovetail groove, and SMC rails
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1,000 Hz for fast response
- Enclosure rating IP68 for dust and water resistance
- Two sensor heads on one plug for enhanced sensing capability
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
