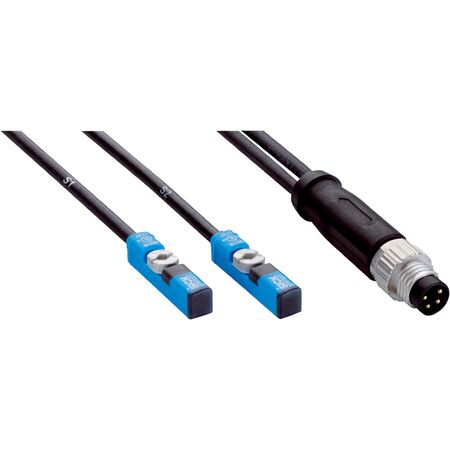

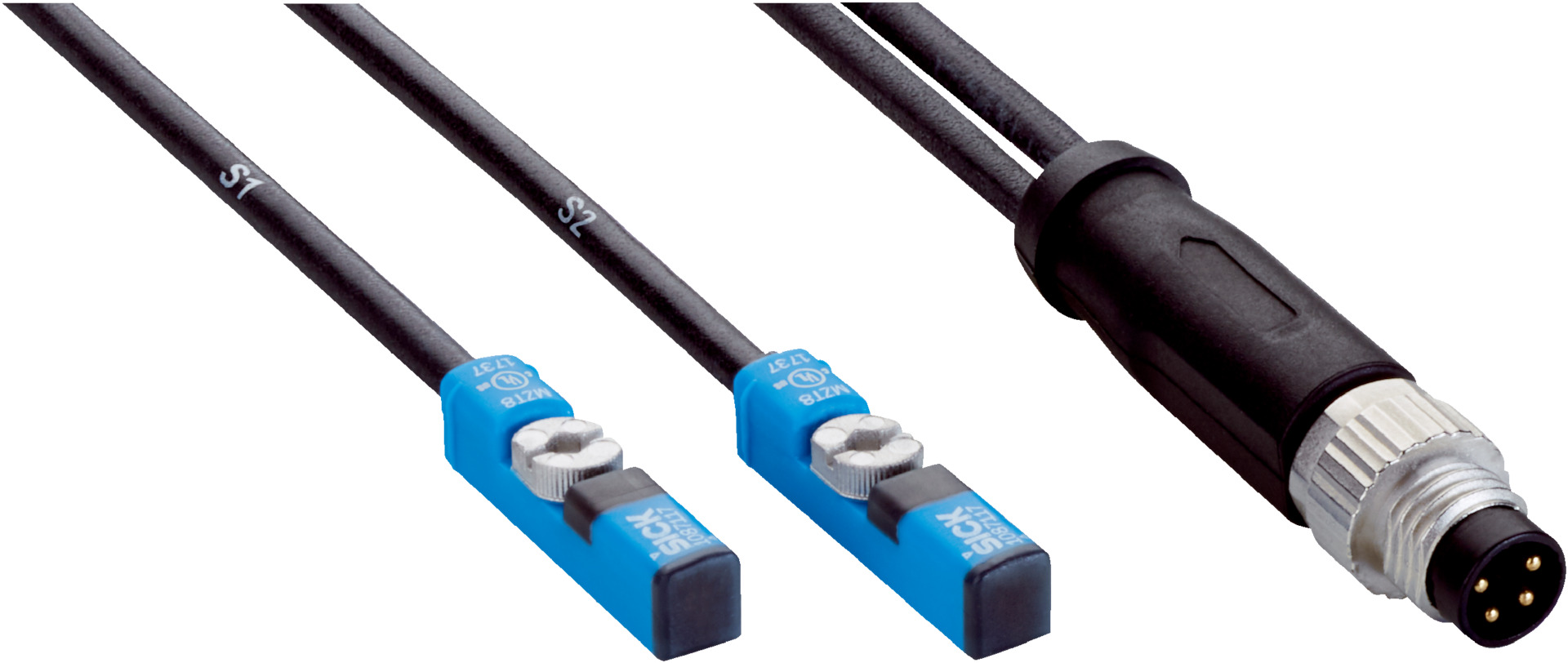

T-slot Cylinder Sensor MZT8-03VPS-KRTS12 | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The T-slot Cylinder Sensor MZT8-03VPS-KRTS12 is designed for precise position sensing in industrial automation. With dual PNP outputs and a high switching frequency of 1000 Hz, it ensures rapid response times. Its IP68 rated enclosure provides excellent protection against dust and water, making it ideal for harsh environments. Perfect for use with various cylinder types, this sensor enhances operational efficiency and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Switching frequency: 1000 Hz
- Output function: 2 x N/O contact, PNP
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Response sensitivity: 2.6 mT typical
- Overrun distance: 3 mm typical
- Hysteresis: ≤ 0.5 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: Cable with M8 4-pin connector, 0.75 m length
- Material: Housing - Plastic PA12, Cable - PUR
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder types including profile and tie rod
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1000 Hz for fast response
- IP68 rated enclosure for dust and water protection
- Two sensor heads on one plug for efficient wiring
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 4-pin connector, 0.75 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP68 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption of 10 mA reduces energy usage
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT8-03VPS-KRTS12 sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
