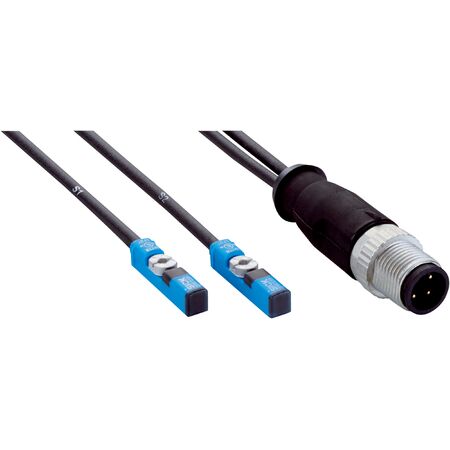

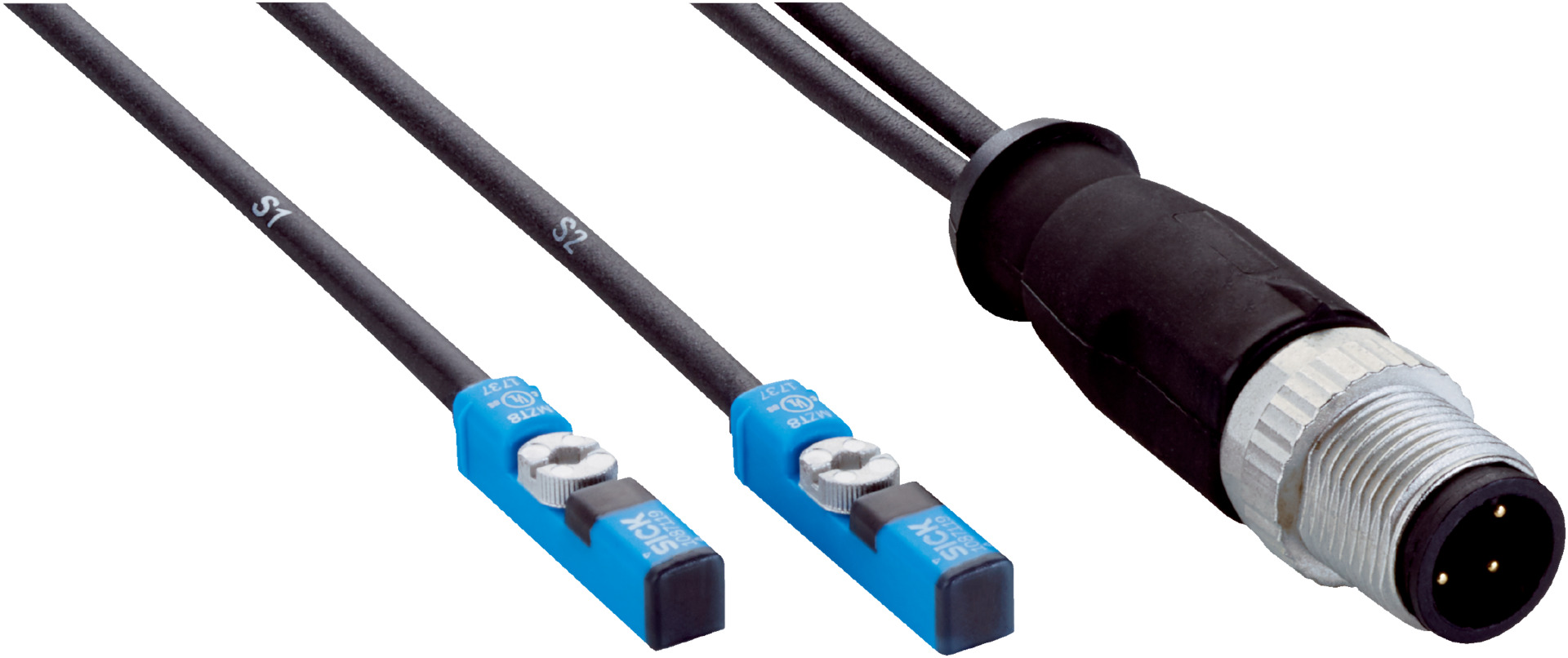

T-slot Cylinder Sensor | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. With dual PNP outputs and a high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic and hydraulic applications. Its robust IP68 rated enclosure provides excellent protection against dust and water, making it ideal for factory environments where durability is essential.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2 and ECDQ2
- Housing length: 24 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Response sensitivity: 2.6 mT typical
- Overrun distance: 3 mm typical
- Hysteresis: ≤ 0.5 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity, short-circuit, and power-up pulse protection included
- Status indicator LED present
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Connection: Cable with M12 4-pin connector, 0.5 m length
- Cable: PUR, diameter 2.9 mm, bending radius >3x cable diameter fixed installation
- Torsion cycles > 2,000,000, drag chain cycles > 2,000,000
- Dimensions (H x L x W): 24mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1,000 Hz
- IP68 rated enclosure for dust and water protection
- Two sensor heads on one plug for efficient wiring
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Robust mechanical design with shock and vibration resistance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring robust sensor solutions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP68 design reduces replacement frequency and waste
- Low power consumption of 10 mA minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT8-03VPS-KQTS13 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
