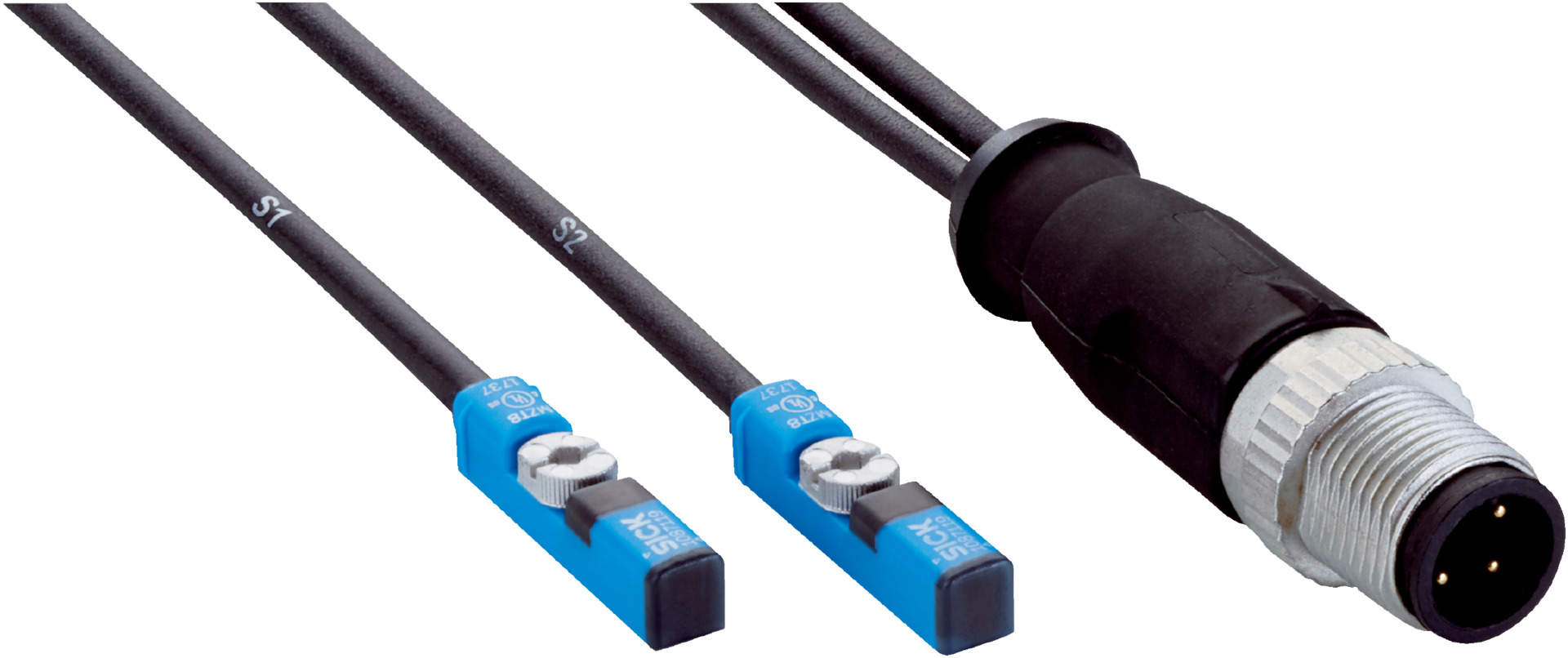

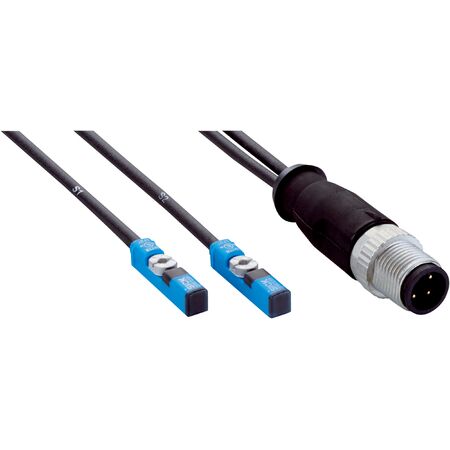

T-slot Cylinder Sensor | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. Featuring dual PNP outputs and a high switching frequency of 1,000 Hz, this sensor is perfect for mechanical engineering applications. With an IP68 rated enclosure, it withstands harsh environments, ensuring reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Switching frequency: 1,000 Hz
- Output function: 2 x N/O contact, PNP
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Response sensitivity: 2.6 mT typical
- Overrun distance: 3 mm typical
- Hysteresis: ≤ 0.5 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Connection type: Cable with M12 4-pin connector, 0.5 m
- Material: Housing - Plastic PA12, Cable - PUR
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1,000 Hz
- IP68 rated enclosure for harsh environments
- Visual installation aid with yellow LED indicator and green power LED
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M12 4-pin connector, 0.5 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Mechanical engineering for profile and tie rod cylinders
- Factory automation requiring robust sensor solutions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption of 10 mA without load
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT8-03VPSAKQTS47 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and mechanical engineering applications.
