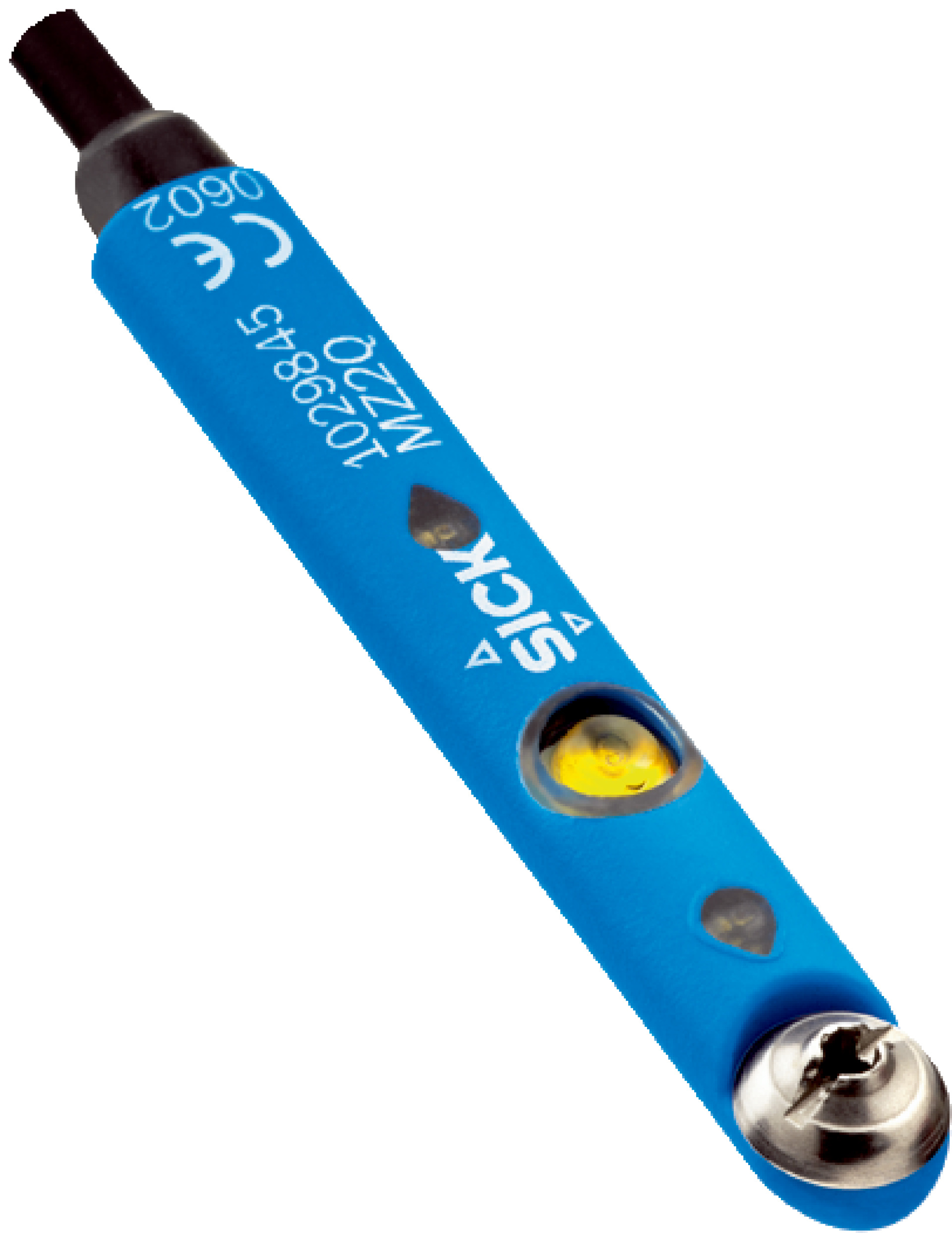

T-slot Cylinder Sensor | IP67 Rated | PNP Output | 0-50mm Detection Zone | by SICK
The T-slot Cylinder Sensor is designed for precise cylinder position detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a detection zone of 0 mm to 50 mm and two PNP switching outputs, it ensures reliable performance in various applications, including SMC rail cylinders. Built for durability and efficiency, this sensor is perfect for professionals seeking optimal alignment and electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: T-slot Cylinder Sensor | IP67 Rated | PNP Output | 0-50mm Detection Zone | by SICK
Brand: SICK
SKU: 1051024
Alternatively Known As: T-slot Cylinder Sensor, SICK Cylinder Position Sensor, PNP Output Cylinder Sensor, Industrial Cylinder Sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Connection type: Cable with M8 male connector, 4-pin, 0.3 m
- Cable diameter: Ø 2.6 mm
- Bending radius: > 5 x cable diameter (fixed), > 10 x cable diameter (flexible)
- Material: Plastic housing, PUR cable
- Operating temperature: +10 °C to +35 °C
- EMC: According to EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Dimensions (H x L x W): 15mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type sensor
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 male connector, 4-pin, 0.3 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for cylinder position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for SMC rail CDQ2 and ECDQ2 cylinders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (typ. 25 mA) supports energy efficiency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-FTZPS-KP0S03 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
