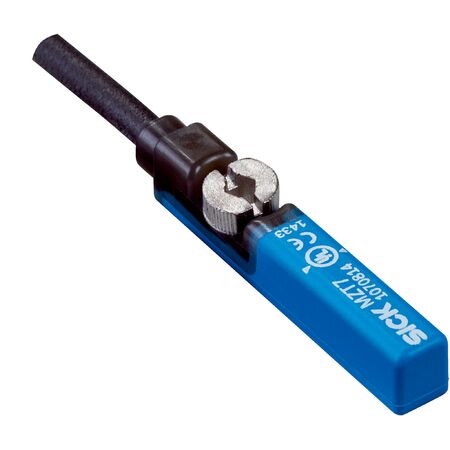

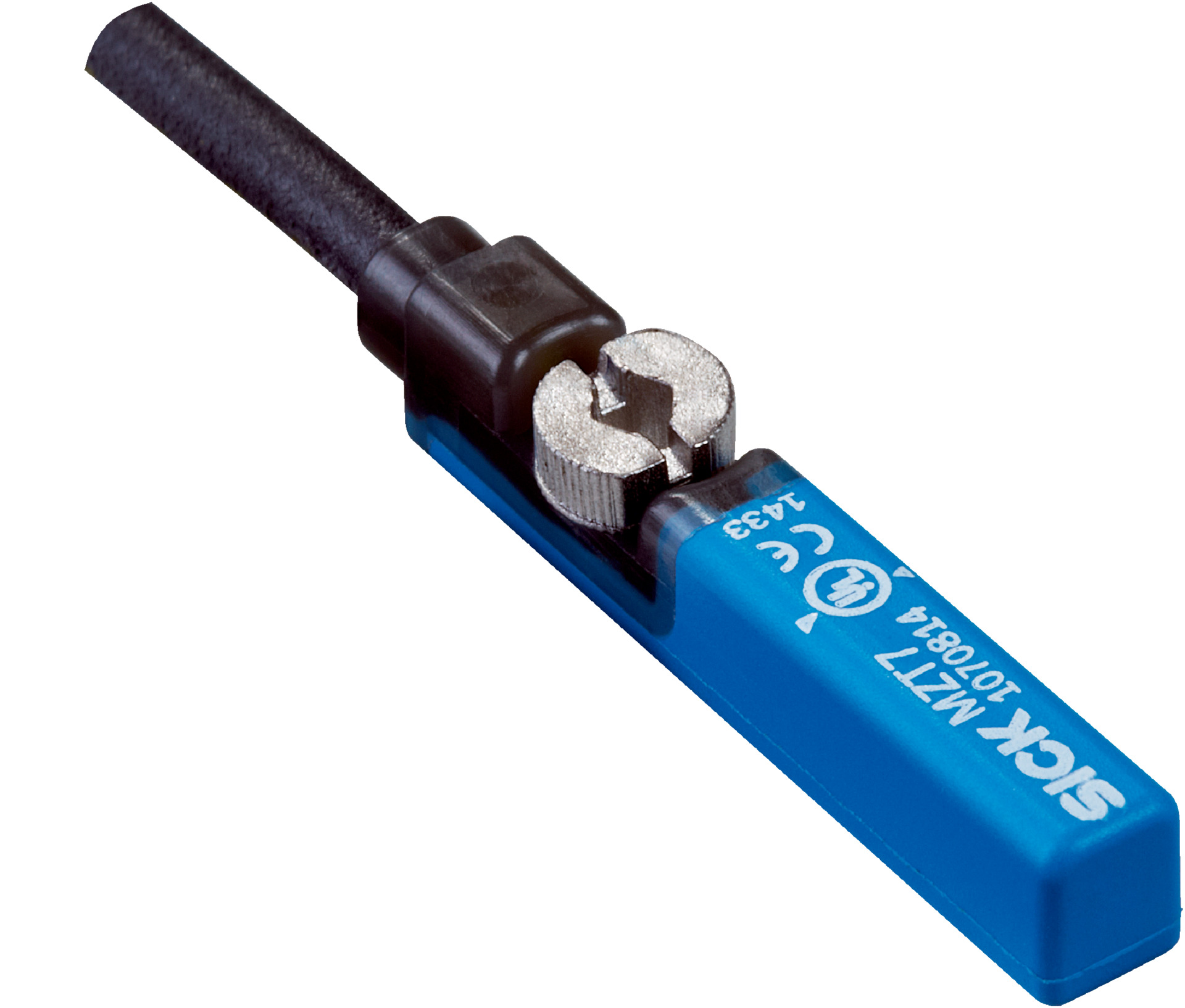

T-slot Cylinder Sensor MZT7-03VPS-KR0S03 | PNP Output | 1000 Hz Frequency | IP65/IP67 Rated | by SICK
The T-slot Cylinder Sensor MZT7-03VPS-KR0S03 is designed for precise cylinder position sensing in industrial automation. With a PNP switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic and hydraulic applications. Built for durability, it features an IP65/IP67 enclosure rating for dust and water protection, making it ideal for manufacturing process control and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin connector, 0.5 m length
- Cable: PUR, diameter 2.9 mm, axial outlet
- Torsion cycles: > 2,000,000
- Drag chain cycles: > 2,000,000
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- PNP switching output with normally open (NO) function
- High switching frequency up to 1,000 Hz
- Enclosure rating IP65 and IP67 for dust and water protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Robust plastic housing with PUR cable and axial cable outlet
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- EMC compliant according to EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT7-03VPS-KR0S03 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
