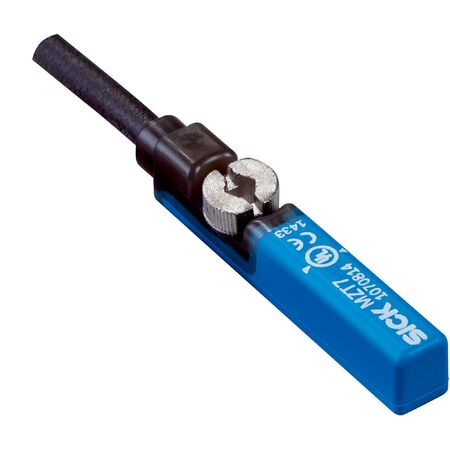

T-slot Cylinder Sensor MZT7-03VPS-KR0 | PNP Output | IP65/IP67 Rated | High Switching Frequency | by SICK
The T-slot cylinder sensor MZT7-03VPS-KR0 is designed for precise position sensing in industrial automation. With a PNP output and an impressive high switching frequency of 1,000 Hz, it ensures rapid response times. Rated IP65/IP67 for dust and water protection, this sensor is perfect for use with various cylinder types, making it an ideal choice for reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Connection: Cable with M8 3-pin connector, 0.5 m length
- Cable diameter: 2.9 mm
- Protection class: III
- Enclosure rating: IP65 and IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm amplitude
- EMC compliant according to EN 60947-5-2
- Reverse polarity and short-circuit protection included
- Status indicator LED present
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile and tie rod
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- Electrical wiring: DC 3-wire with cable and M8 3-pin connector
- Enclosure rating IP65 and IP67 for dust and water protection
- Reverse polarity and short-circuit protection included
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for environments requiring IP65/IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA minimizes energy use
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The SICK MZT7-03VPS-KR0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and position sensing applications.
