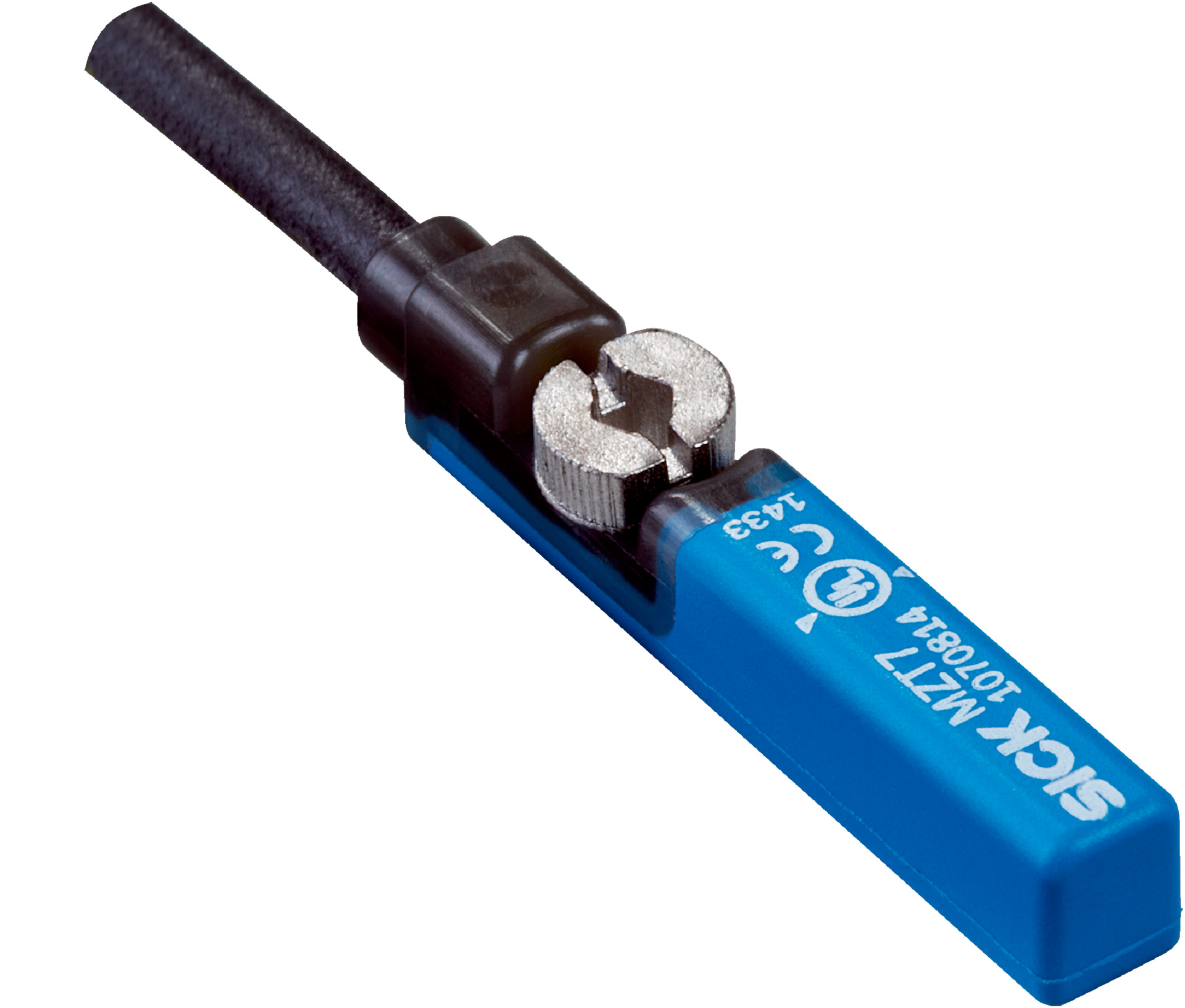

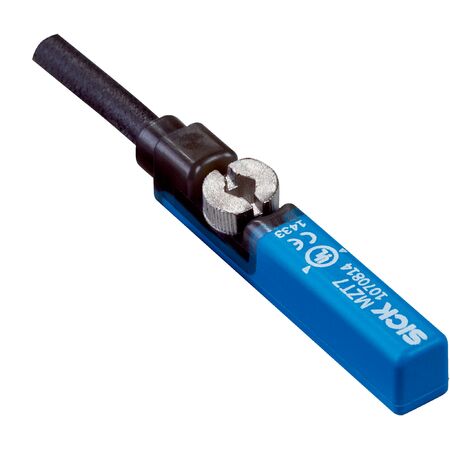

T-slot Cylinder Sensor MZT7-2V2PS-KU0 | PNP Output | IP65 & IP67 Rated | by SICK
The T-slot Cylinder Sensor MZT7-2V2PS-KU0 is designed for precise position sensing in industrial automation. With a PNP output and high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic systems. Its robust IP65 and IP67 ratings provide excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.2 mT typical
- Overrun distance: 3 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Connection type: 3-wire cable, 2 m length, axial outlet
- Cable specifications: PUR cable, 0.14 mm² conductor cross section, 2.9 mm diameter
- Enclosure rating: IP65 and IP67
- Switching frequency: 1,000 Hz
- Output function: Normally open (NO)
- Electrical wiring: DC 3-wire
- Status indicator: LED
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC compliance: According to EN 60947-5-2
- Reverse polarity and short-circuit protection: Yes
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile, tie rod, round body, dovetail groove, and SMC rails
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- Enclosure rating IP65 and IP67 for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Factory automation requiring reliable switching output
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT7-2V2PS-KU0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
