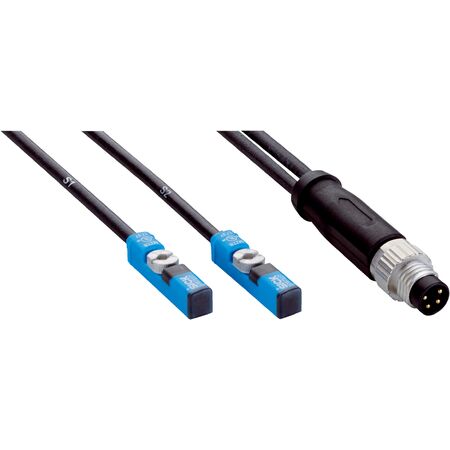

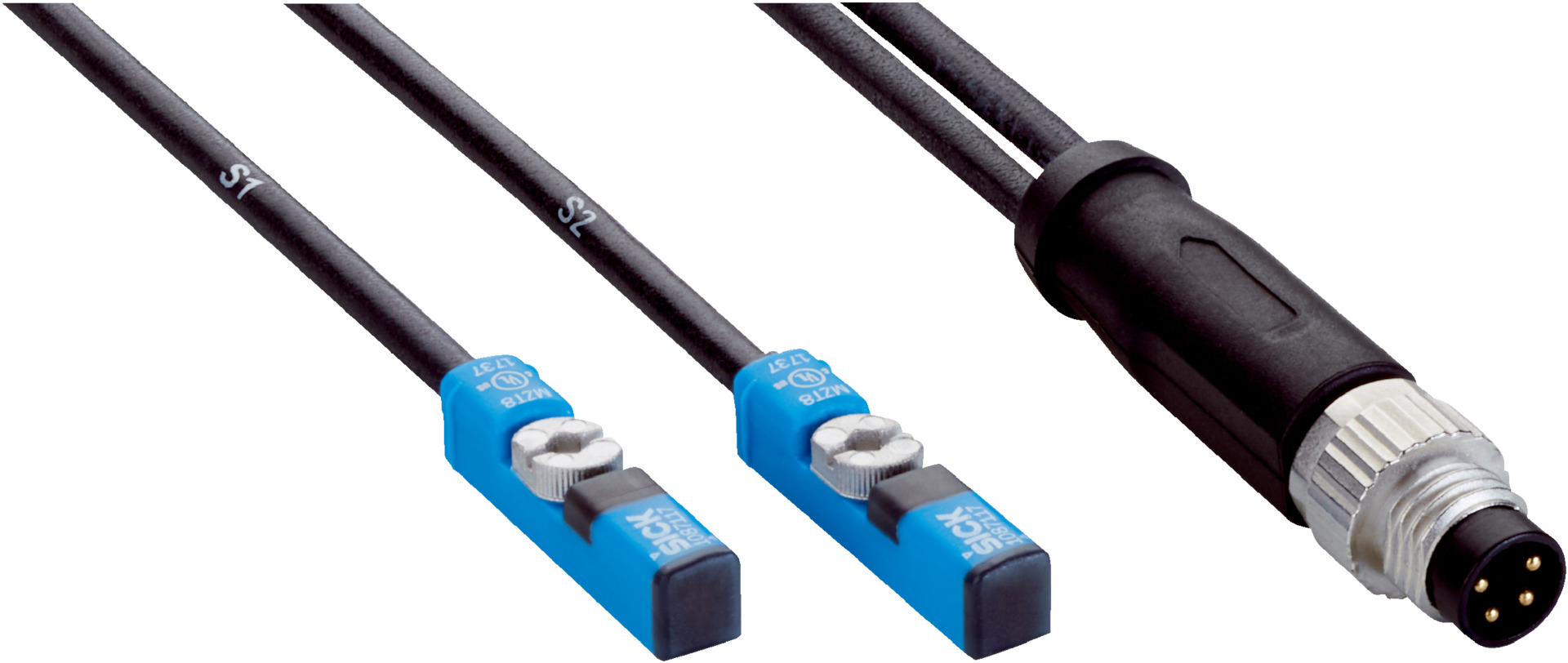

T-slot Cylinder Sensor MZT8-03VPS-KRT | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The T-slot Cylinder Sensor MZT8-03VPS-KRT is designed for precise cylinder position sensing in industrial automation. With dual PNP outputs and a high switching frequency of 1,000 Hz, it ensures reliable performance in harsh environments. Its IP68 rating provides excellent dust and water protection, making it ideal for various applications, including profile and tie rod cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 24 mm
- Switching output: 2 x PNP
- Switching frequency: 1,000 Hz
- Output function: 2 x N/O contact
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Time delay before availability: 25 ms
- Response sensitivity (typical): 2.6 mT
- Overrun distance (typical): 3 mm
- Hysteresis (typical): ≤ 0.5 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 4-pin connector, 0.5 m length
- Cable specifications: PUR, 0.14 mm² conductor cross section, 2.9 mm diameter
- Bending radius: Fixed installation > 8 x cable diameter, flexible use > 12 x cable diameter
- Material: Housing plastic PA12
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder types including profile and tie rod
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1,000 Hz
- IP68 rated enclosure for dust and water protection
- Two sensor heads on one plug for efficient wiring
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
