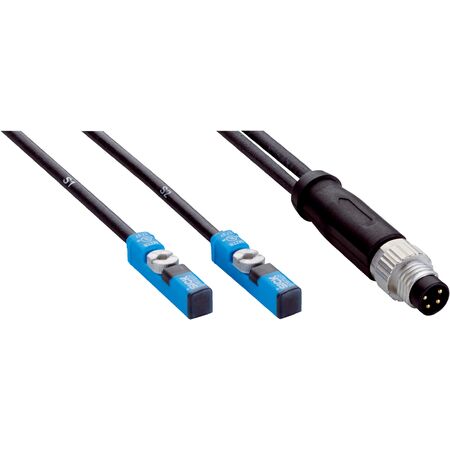

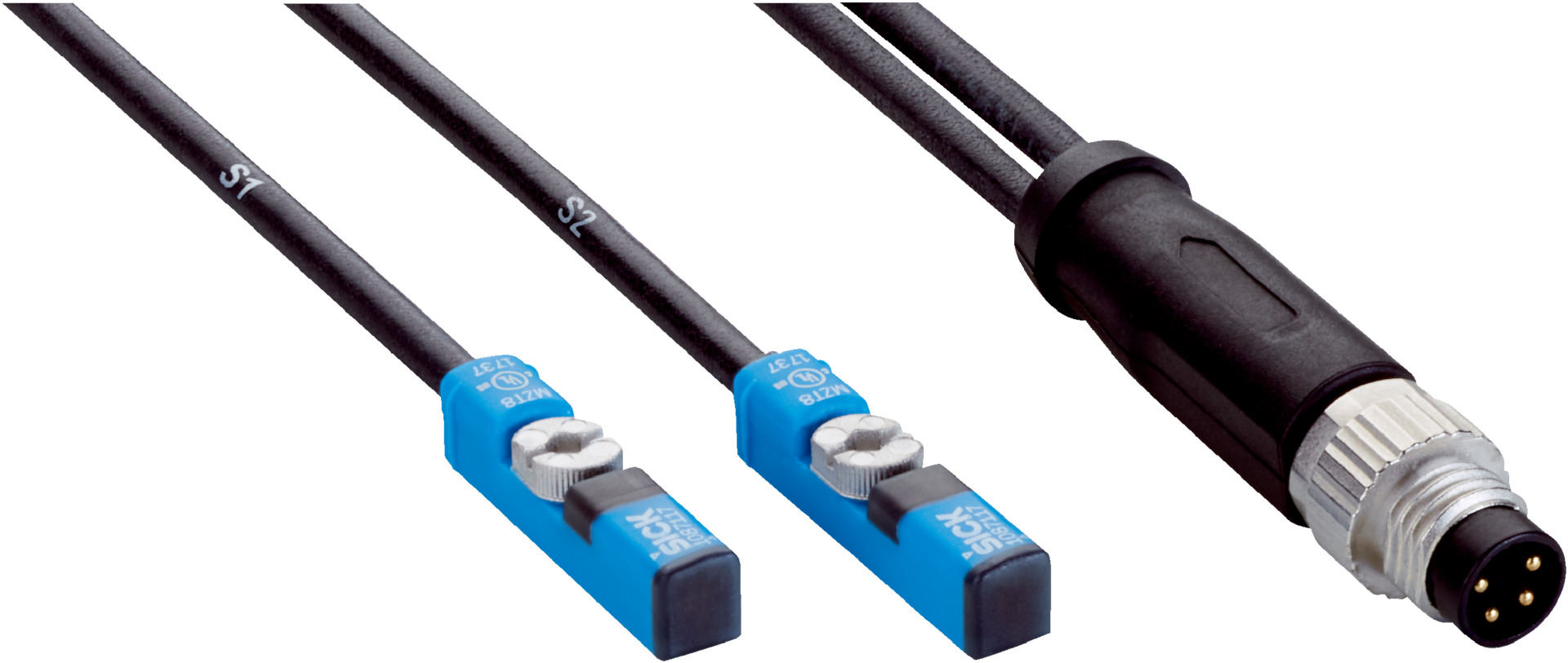

T-slot Cylinder Sensor MZT8-03VPS-KRTS37 | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The T-slot Cylinder Sensor MZT8-03VPS-KRTS37 is designed for precise cylinder position sensing in industrial automation. With dual PNP outputs and a high switching frequency of 1,000 Hz, it ensures rapid response times. Its robust IP68 rated enclosure provides excellent protection against dust and water, making it ideal for pneumatic and hydraulic applications in manufacturing and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 24 mm
- Switching output: 2 x PNP
- Switching frequency: 1,000 Hz
- Output function: 2 x N/O contact
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Time delay before availability: 25 ms
- Response sensitivity (typical): 2.6 mT
- Overrun distance (typical): 3 mm
- Hysteresis (typical): ≤ 0.5 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with connector M8, 4-pin, with knurled nut, 0.1 m
- Conductor cross section: 0.14 mm²
- Cable diameter: Ø 2.9 mm
- Bending radius: Fixed installation > 8 x cable diameter, Flexible use > 12 x cable diameter
- Cable outlet: Axial
- Housing material: Plastic, PA12
- Cable material: PUR
- Dimensions (H x L x W): 24mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile, tie rod, round body, dovetail groove, and SMC rails
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1,000 Hz for fast response
- IP68 rated enclosure for robust protection against dust and water
- Two sensor heads on one plug for efficient installation
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements, minimizing waste
- Low power consumption of 10 mA contributes to energy efficiency
- Robust design reduces downtime and resource use in maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
