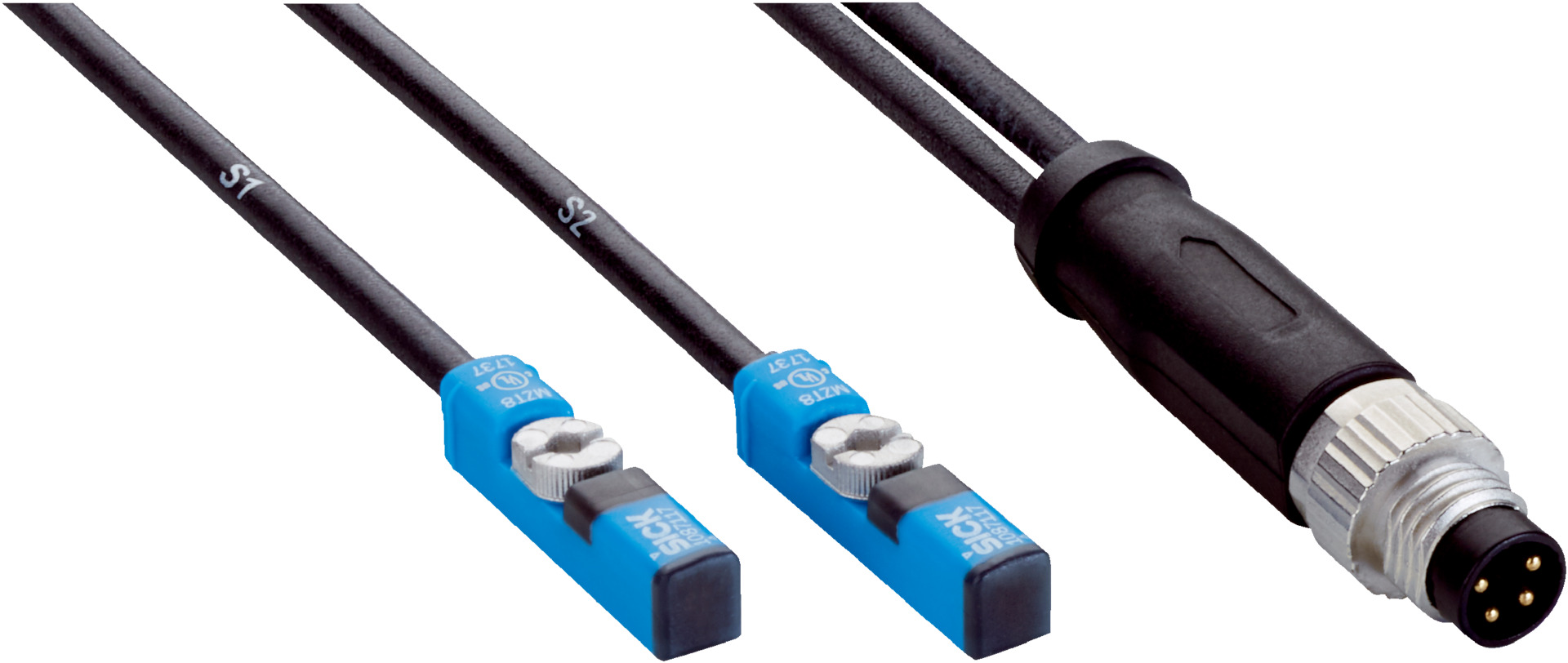

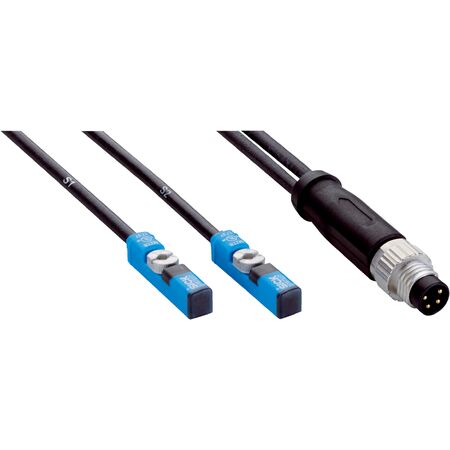

T-Slot Cylinder Sensor MZT8-03VPSAKRTS42 | Dual PNP Outputs | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The T-Slot Cylinder Sensor MZT8-03VPSAKRTS42 is designed for precise cylinder position sensing in industrial automation. With dual PNP outputs and a high switching frequency of 1,000 Hz, it ensures reliable performance in harsh environments. Its robust IP68 rated enclosure protects against dust and water, making it ideal for various applications, including profile and tie rod cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Switching frequency: 1,000 Hz
- Output function: 2 x N/O contact, PNP
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Response sensitivity: 2.6 mT typical
- Overrun distance: 3 mm typical
- Hysteresis: ≤ 0.5 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Connection type: Cable with M8 4-pin connector, 0.3 m length
- Material: Housing plastic PA12, cable PUR
- Dimensions (H x L x W): 10mm x 50mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder types including profile and tie rod
- Dual PNP switching outputs with 2 x N/O contacts
- High switching frequency of 1,000 Hz
- Visual installation aid with yellow LED indicator and green power LED
- Robust IP68 rated enclosure for protection against dust and water
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 4-pin connector, 0.3 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 10 mA without load
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT8-03VPSAKRTS42 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
