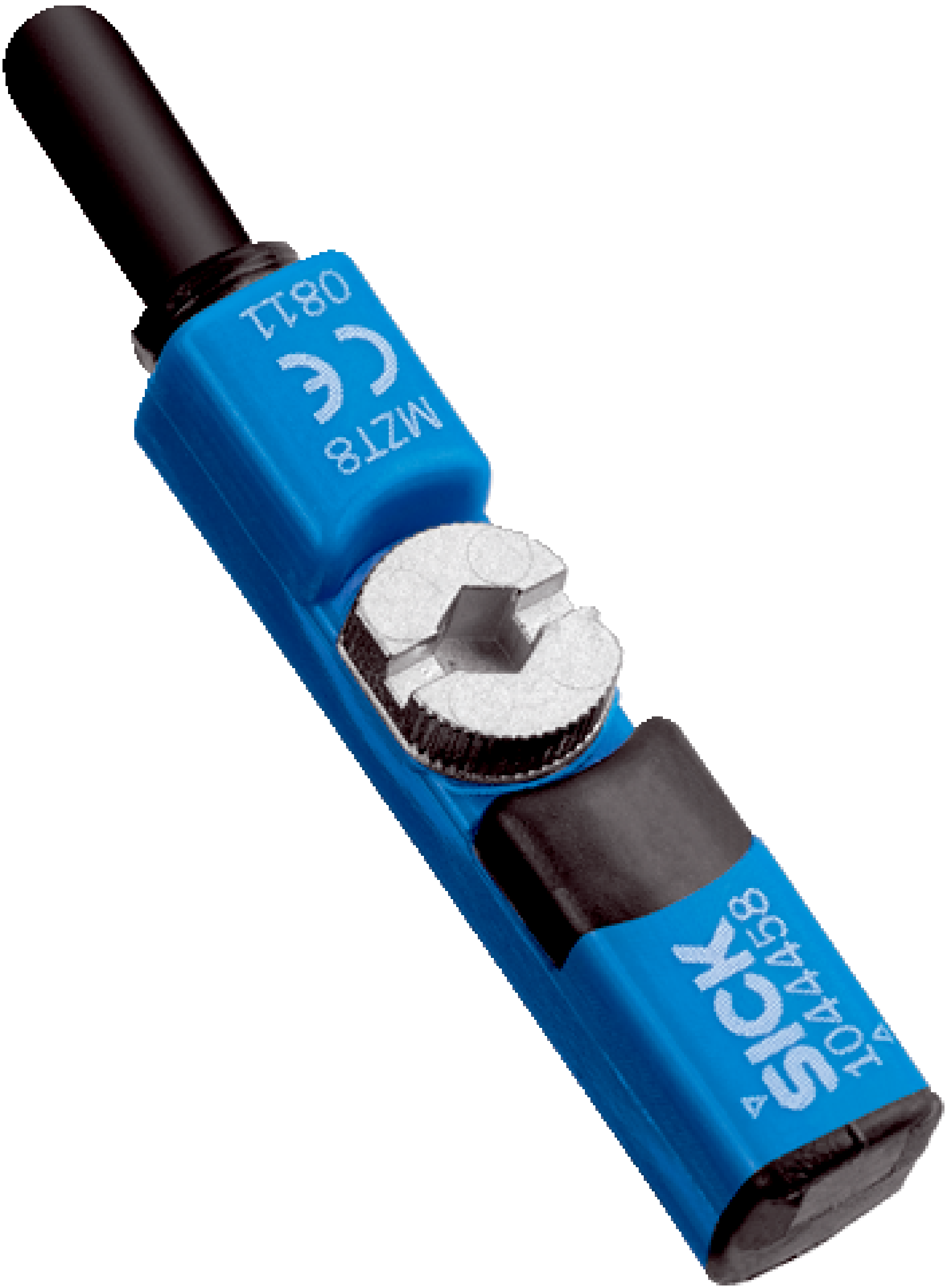

T-slot Cylinder Sensor MZT8-28VPS-KR0 | PNP Output | 1000 Hz Frequency | IP68 Rated | by SICK
The T-slot Cylinder Sensor MZT8-28VPS-KR0 is designed for precise position sensing in industrial automation. With a PNP switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic systems. Its IP68 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments. This sensor also features reverse polarity protection and a status indicator LED for operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: T-slot Cylinder Sensor, PNP Cylinder Sensor, SICK Cylinder Position Sensor, MZT8 Sensor
Technical Specifications
- Cylinder type: T-slot
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Time delay before availability: 25 ms
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.7 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin plug, 0.5 m length
- Cable material: PUR
- Housing material: Plastic, PA12
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- IP68 rated enclosure for dust and water protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin plug, suitable for drag chain use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Use in harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 10 mA without load
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZT8-28VPS-KR0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
