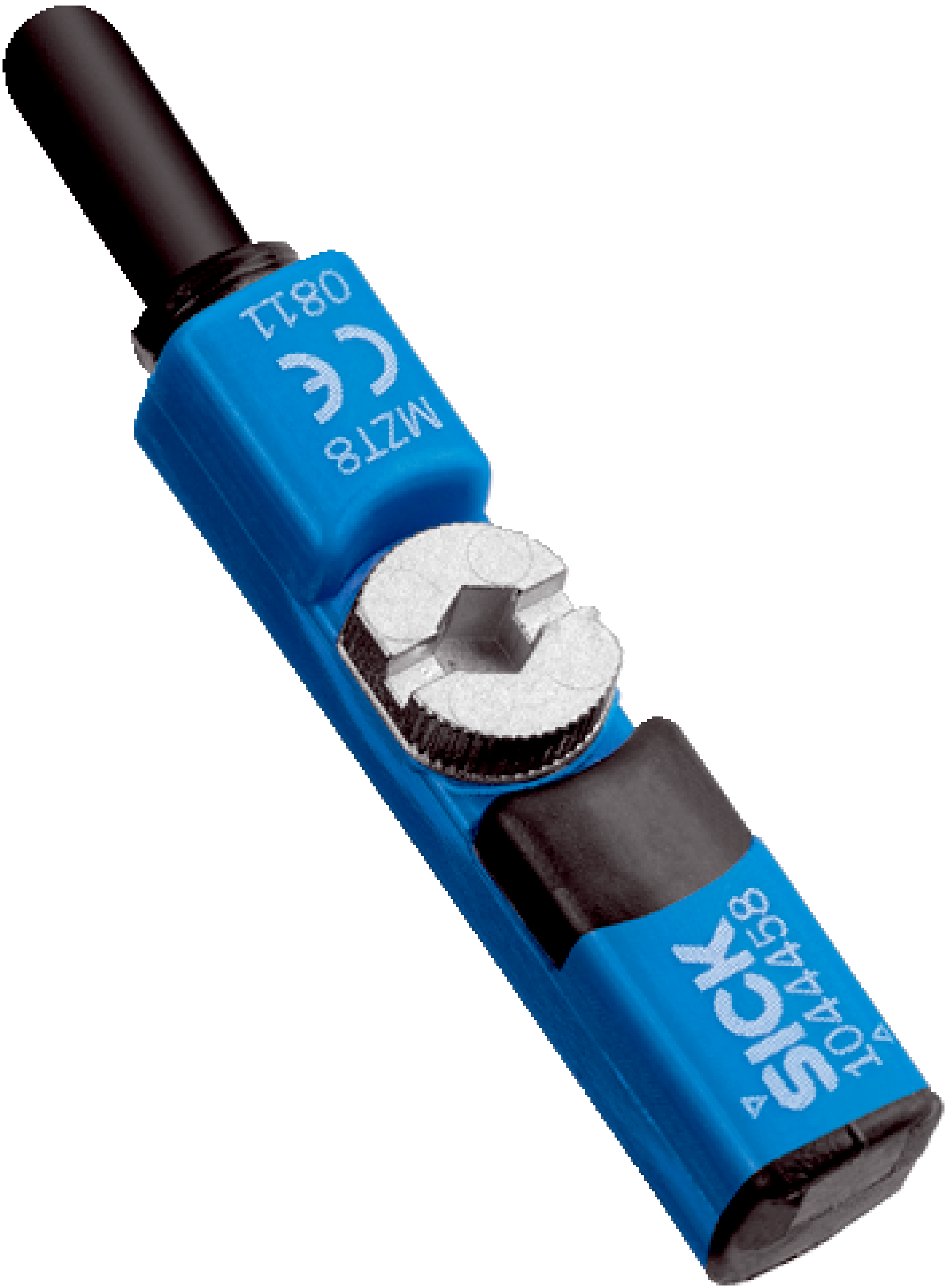

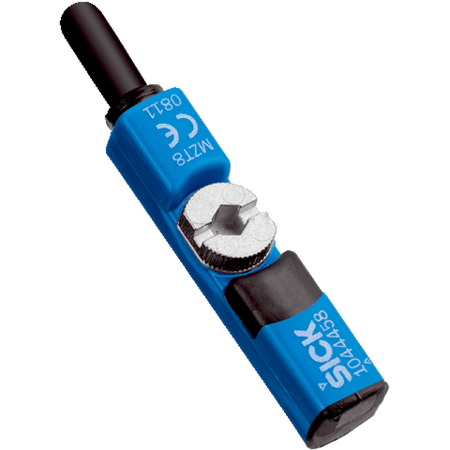

T-slot Cylinder Sensor | NPN Output | IP68 & IP69K Rated | 1000 Hz Frequency | by SICK
The T-slot Cylinder Sensor is designed for precise position sensing in industrial automation, featuring an NPN switching output and a high switching frequency of 1,000 Hz. With an IP68 and IP69K enclosure rating, it excels in harsh environments, ensuring reliable performance in pneumatic systems. Ideal for professionals seeking durability and efficiency, this sensor also includes reverse polarity and short-circuit protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: T-slot Cylinder Sensor, NPN Cylinder Sensor, SICK Position Sensor, Industrial Cylinder Switch
Technical Specifications
- Cylinder type: T-slot
- Switching output: NPN, normally open
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68 and IP69K
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.7 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED included
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: 3 m PUR cable, 3-wire, suitable for drag chain use
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- NPN switching output with normally open function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 and IP69K for dust and water resistance
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 10 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 3 m PUR cable suitable for drag chain use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Use in harsh environments requiring IP68/IP69K protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZT8-28VNS-KUA T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
