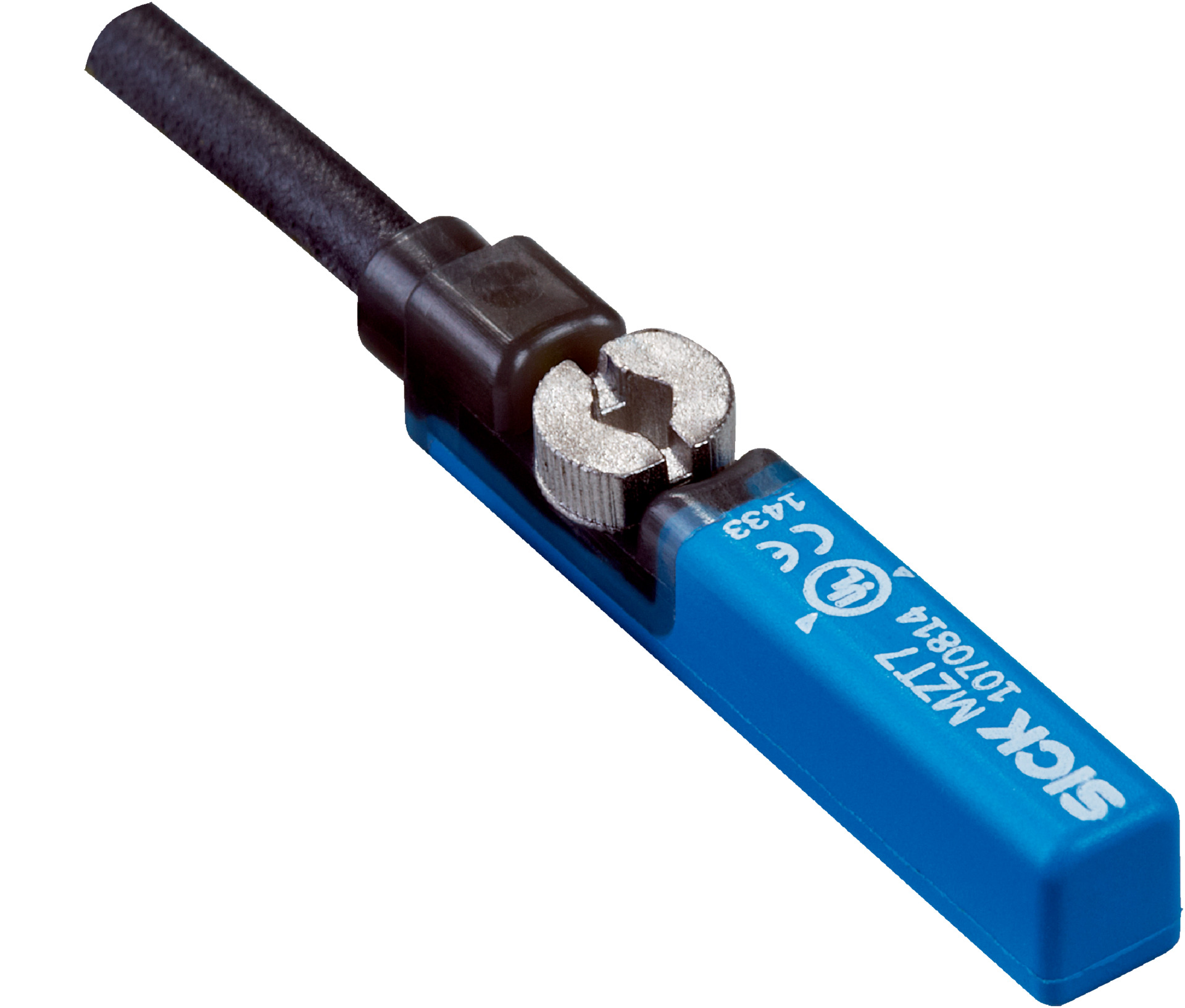

T-slot Cylinder Sensor | NPN Output | IP65 & IP67 Rated | 1000 Hz Switching Frequency | by SICK
The T-slot Cylinder Sensor is designed for precise position sensing in industrial automation, featuring an NPN output and high switching frequency of 1000 Hz. With an IP65 and IP67 enclosure rating, it ensures reliable performance in dusty and wet environments, making it ideal for pneumatic systems and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.2 mT typical
- Overrun distance: 3 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Connection type: 3-wire DC cable, 2 m length, axial outlet
- Cable specifications: PUR cable, 0.14 mm² conductor cross section, 2.9 mm diameter
- Enclosure rating: IP65 and IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC compliance: EN 60947-5-2
- Status indicator: LED
- Reverse polarity and short-circuit protection included
- Dimensions (H x L x W): 10mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile, tie rod, round body, dovetail groove, and SMC rails
- NPN switching output with normally closed (NC) function
- High switching frequency of 1,000 Hz
- Enclosure rating IP65 and IP67 for dust and water resistance
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –30 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Manufacturing process control
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

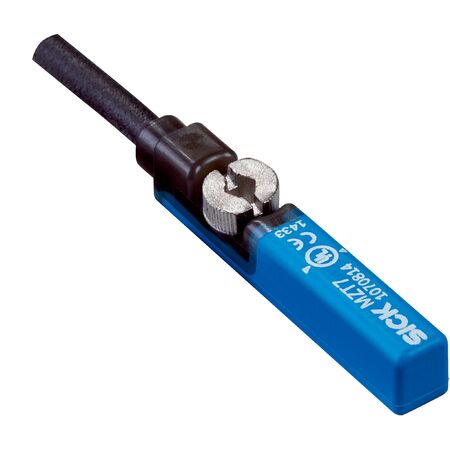

The SICK MZT7-2V2NO-KU0 T-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
