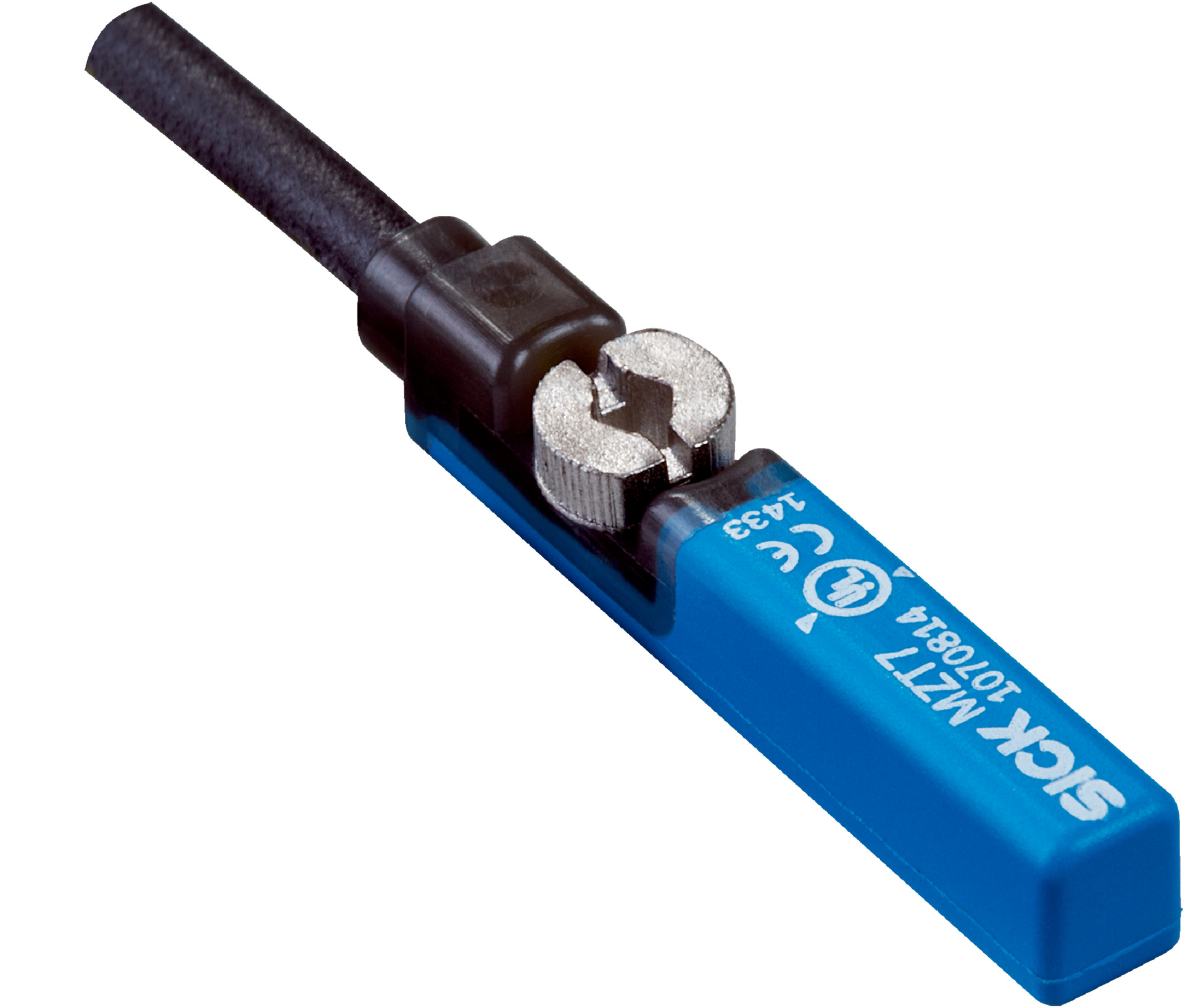

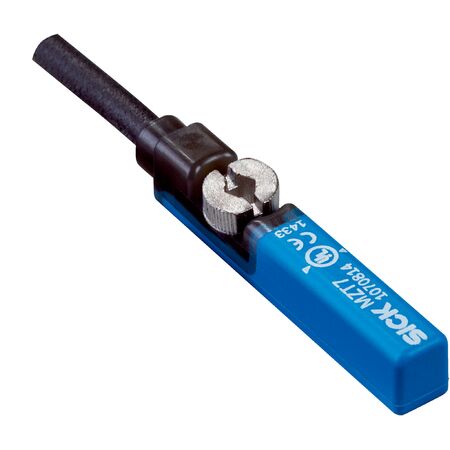

T-slot Cylinder Sensor | PNP Output | 1000 Hz Switching Frequency | IP65/IP67 Rated | by SICK
The T-slot Cylinder Sensor MZT7-03VPO-KP0 is designed for precise position sensing in industrial automation. With a PNP output and a high switching frequency of 1,000 Hz, it ensures reliable performance in various applications. Its IP65/IP67 rating provides excellent protection against dust and water, making it suitable for harsh environments. Ideal for use with profile, tie rod, and round body cylinders, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 29.5 mm
- Switching output: PNP
- Switching frequency: 1,000 Hz
- Output function: NC
- Electrical wiring: DC 3-wire
- Enclosure rating: IP65, IP67
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin connector, 0.3 m length, axial outlet
- Cable diameter: Ø 2.9 mm
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- PNP switching output with NC function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP65 and IP67 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 8 mA without load
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin connector, 0.3 m length, axial outlet
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP65/IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK MZT7-03VPO-KP0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and position sensing applications.
