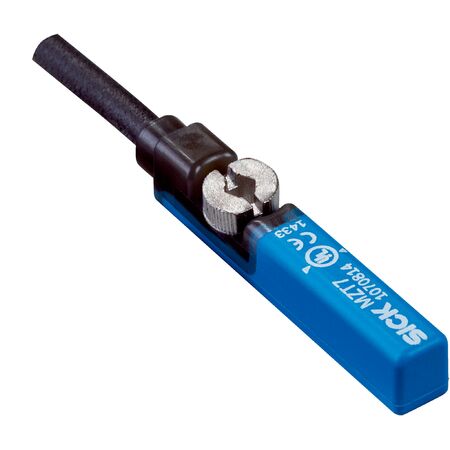

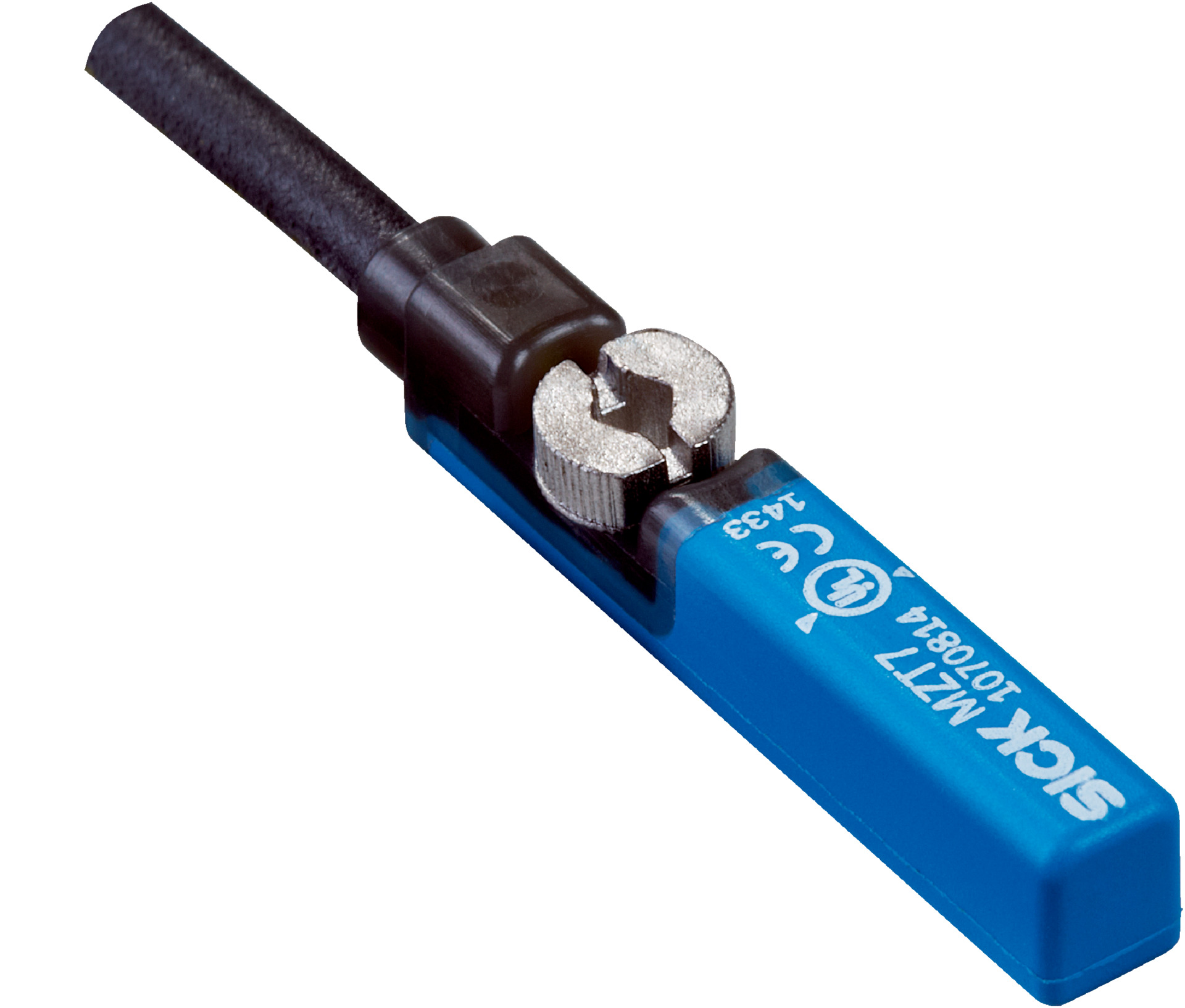

T-Slot Cylinder Sensor MZT7-03VPS-KRD | PNP Output | IP65/IP67 Rated | High Switching Frequency | by SICK
The T-slot cylinder sensor MZT7-03VPS-KRD is designed for precise position sensing in industrial automation. With a PNP switching output and an impressive high switching frequency of 1,000 Hz, it ensures rapid response times. Built to withstand harsh environments, this sensor features an IP65/IP67 enclosure rating, making it ideal for use with various cylinder types, including profile and tie rod cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Hysteresis: < 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Connection: Cable with M8 3-pin connector, 0.3 m length
- Cable diameter: 2.9 mm, PUR material
- Enclosure rating: IP65 and IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm amplitude
- EMC compliant with EN 60947-5-2
- Status indicator LED included
- Reverse polarity and short-circuit protection
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile and tie rod
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- Electrical wiring: DC 3-wire with cable and M8 3-pin connector
- Enclosure rating IP65 and IP67 for dust and water protection
- Reverse polarity and short-circuit protection included
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP65/IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK MZT7-03VPS-KRD sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
