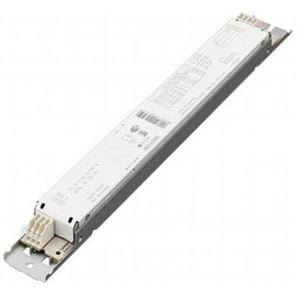

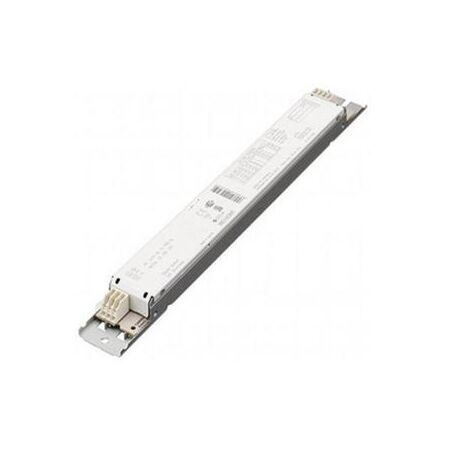

T5 Electronic Ballast | 28W Power | High Power Factor 0.96 | @Each of 1 | by Nelson

BRAND: Nelson
SKU: MT52X28S
$56.10 List price: $69.90
+ −
30 Days Return Delivery Options
The T5 Electronic Ballast is designed for T5 fluorescent fixtures, operating efficiently at 28W with a high power factor of 0.96. Ideal for both commercial and residential lighting installations, it ensures energy efficiency and supports longer lamp life, making it a perfect choice for maintenance and upgrades.

Product Name/Title: T5 Electronic Ballast | 28W Power | High Power Factor 0.96 | @Each of 1 | by Nelson

Brand: Nelson

SKU: MT52X28S

Alternatively Known As: T5 Electronic Ballast, 28W Ballast for T5 Lamps, Fluorescent Lamp Ballast, Electronic Ballast for T5 Fixtures

Technical Specifications
  • Voltage: 220-240V AC
  • Current: 0.27A
  • Frequency: 50/60Hz
  • Power Factor: 0.96
  • Maximum Case Temperature (Tc): 70°C
  • Ambient Operating Temperature (Ta): 0°C to 50°C
  • Dimensions (H x L x W): 30mm x 60mm x 120mm
  • Weight: 0.3 kg
Key Features
  • Compatible with T5 fluorescent fixtures
  • Operates at 220-240V AC
  • High power factor of 0.96 for energy efficiency
  • Frequency range of 50/60Hz
  • Maximum case temperature of 70°C
  • Operating ambient temperature range from 0°C to 50°C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
  • Lighting fixtures using T5 fluorescent lamps
  • Commercial and residential lighting installations
  • Replacement ballasts for T5 luminaire maintenance
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Improves energy efficiency of T5 lighting systems
  • Reduces power consumption compared to magnetic ballasts
  • Supports longer lamp life reducing waste
Warranty Information

1 year warranty against manufacturing defects.

Available Now

Nelson T5 Fixture 28W Electronic Ballasts pack of 2 is available for immediate purchase, ideal for maintenance and upgrade of T5 lighting fixtures.
