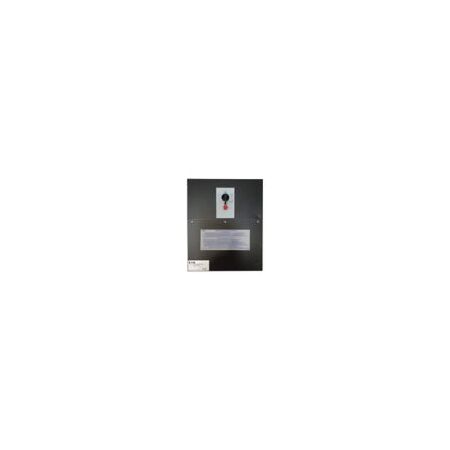

Tail End Maintenance Bypass Enclosure | 40A | 8kVA to 20kVA | Bottom Entry by Eaton
Tail End Maintenance Bypass Enclosure with 40A capacity and 8kVA to 20kVA range—ideal for industrial and commercial UPS maintenance. Built for seamless power switching with zero transfer time, ensuring reliable power management and reduced downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Tail End Maintenance Bypass Enclosure | 40A | 8kVA to 20kVA | Bottom Entry by Eaton
Brand: Eaton
SKU: MBS33TE40BW
Alternatively Known As: Eaton Maintenance Bypass Enclosure Tail End, Eaton MBS 3 Phase Bypass, Eaton UPS Bypass Enclosure
Technical Specifications
- Product Name: Eaton Hotswap MBP Maintenance Bypass Enclosure Tail-end
- Input nominal voltage: 230V default (220/230/240V)
- Input voltage range: 192-264 V
- Output nominal voltage: 230V default (220/230/240V)
- Output voltage range: 192-264 V
- Nominal frequency: 50-60 Hz
- Input frequency range: 50Hz-60Hz
- Output frequency: 50-60 Hz
- Electric current - max: 40A
- Phase (input): Three-phase
- Phase (output): Three-phase
- Transfer time: 0 ms
- Communication: Voltage-free relay interlock
- Potential free switch contact: Yes
- Altitude rating: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Construction type: Free standing model
- Input connection: Hardwired/fixed connection
- Dimensions (H x L x W): 492mm x 272mm x 368mm
- Weight: 15 kg
Key Features
- Free standing model with bottom entry
- Hardwired/fixed input connection
- Voltage-free relay interlock communication
- Potential free switch contact included
- Zero transfer time (0 ms) for seamless power switching
- Supports input and output nominal voltage of 230V (220/230/240V)
- Operates at nominal frequency of 50-60 Hz
- Suitable for altitudes 0-1500m at 0° to 40°C and 1500-3000m at 0° to 35°C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with UPS systems.
Applications
- Used with Eaton UPS models 93PS, 93E, 93PR, 93PM for maintenance bypass
- Industrial and commercial power management systems requiring three-phase bypass
- Electrical installations needing reliable power transfer and bypass functionality
Standards & Compliance
- Contact Manufacturer for specific AS/NZS compliance
Environmental Benefits
- Enables efficient maintenance without power interruption, reducing downtime and energy waste
- Supports reliable power management to optimize energy usage in electrical systems
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton Tail End MBS 3Ph/3Ph 40A Bottom Entry Maintenance Bypass Enclosure is available now for immediate purchase. Ideal for industrial and commercial UPS maintenance applications.
