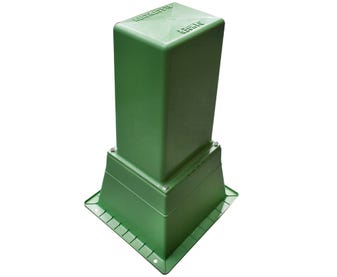

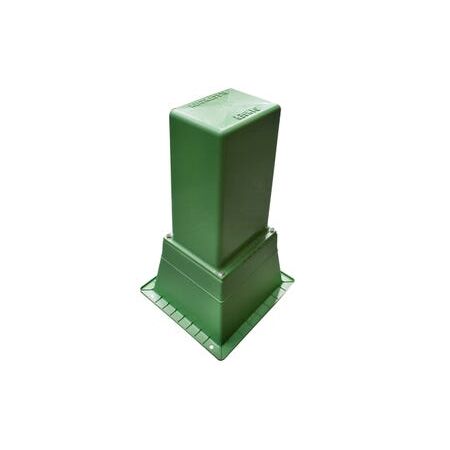

Tall Pillar Lid Base Vent | Bottom Venting & Baffle System | Nature Green by Cabac
The Cabac Tall Pillar Lid Base Vent Green D-Bolt Kit is a durable, cost-effective distribution cover designed for standard underground cable reticulation, featuring ventilation channels and a baffle system to protect internal components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TALL PILLAR LID BASE VENT GREEN DBOLT
Brand: Cabac
SKU: PBL-KITV
Alternatively Known As: Pillar Box Lid Vent, Cable Pillar Cover, Underground Cable Distribution Pillar, Ventilated Pillar Lid
Technical Specifications
- Material: Ultra-violet stabilised LS3 plastic
- Ventilation: Bottom venting channel and optional top venting
- Design: Baffle system to condense and divert water condensation
- Colour: Standard nature green, beige and special colours available
- Compatibility: Fits existing bases with standard bolt pattern
- Markings: Embossed 'Danger Electricity' on top
- Dimensions (H x L x W): 600mm x 300mm x 300mm
- Weight: 5 kg
Key Features
- Fits existing bases with standard bolt pattern and dimensions
- Bottom venting channel allows free air flow while blocking water and foreign bodies
- Optional top venting to exhaust hot air and maintain lower operating temperatures
- Baffle system design condenses humid air and diverts water condensation outside
- Standard covers embossed with 'Danger Electricity' on top
- Standard nature green color with beige and special colors available
- Made from recyclable, ultra-violet stabilised material with high impact and contaminant resistance
- Pillars can be stacked to reduce storage costs
Professional Installation Requirements
- Installation by qualified electrical or utility personnel recommended to ensure proper fitting and compliance with electrical safety standards.
Applications
- Underground cable reticulation distribution cover
- Power authority installations
- Electrical pillar box protection and ventilation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable materials
- UV stabilised for long life reducing replacement frequency
- High impact resistance reduces waste from damage
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Tall Pillar Lid Base Vent Green D-Bolt Kit is available now for immediate purchase. Ideal for underground cable reticulation and electrical distribution applications.
