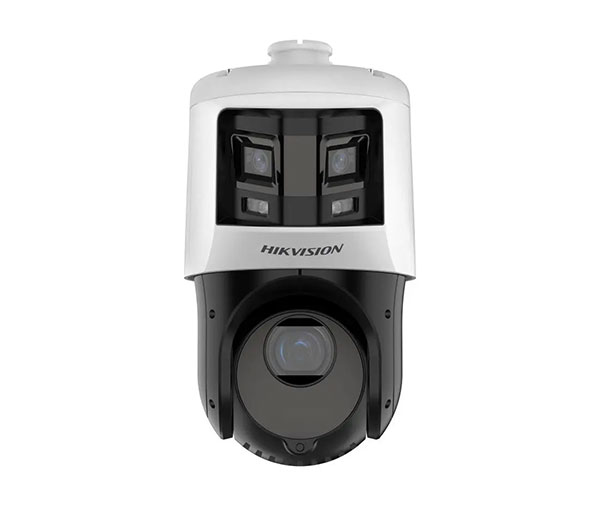

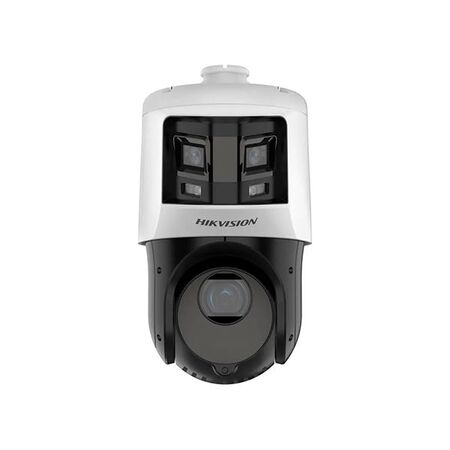

TandemVu PTZ Camera 6MP and 4MP Hikvision
Hikvision TandemVu PTZ camera features 6MP and 4MP resolution channels. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision TandemVu PTZ Camera, 6+4MP Panoramic PTZ Camera, ColorVu TandemVu Network Speed Dome
Technical Specifications
- Model: DS-2SE7C432MWG-EB/26(F0)
- Camera Channels: 6MP panoramic and 4MP PTZ
- Panoramic Resolution: 3632 × 1632
- PTZ Resolution: 2560 × 1440
- Optical Zoom: 32x
- Digital Zoom: 16x
- Panoramic Field of View: 180° horizontal, 80° vertical
- PTZ Lens: 5.9–188.8 mm motorised lens
- IR Distance: Up to 200 m for PTZ channel
- White Light Distance: Up to 30 m for panoramic channel
- Pan Range: 360°
- Tilt Range: -15° to 90°
- Video Compression: H.265+, H.265, H.264+, H.264
- Network Interface: 10/100 Mbps RJ45
- Storage: MicroSD, MicroSDHC or MicroSDXC up to 256 GB
- Power Supply: 24 VAC or Hi-PoE, maximum 60 W
- Ingress Protection: IP66
- Operating Temperature: -30°C to 65°C
- Material: ADC12 aluminium alloy, plastic and PC with glass fibre
- Smart Functions: AcuSense human and vehicle classification, face capture, auto-tracking and smart linkage
- Dimensions (H x L x W): 387.2mm x 222.3mm x 222.3mm
- Weight: 6 kg
Key Features
- Combines a panoramic camera and motorised PTZ camera in one housing
- Maintains the wide panoramic view while the PTZ channel tracks and zooms into targets
- 6MP panoramic channel with 180° horizontal field of view
- 4MP PTZ channel with 32x optical zoom and 16x digital zoom
- ColorVu low-light imaging with panoramic white light illumination
- Up to 200 m IR illumination for the PTZ channel
- AcuSense classification of human and vehicle targets
- Smart linkage between panoramic and PTZ channels
- Active strobe light and audio alarm functions
- Built-in microSD card recording support
- IP66-rated housing for outdoor CCTV installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV/security technician. Mounting, network configuration and connection to 24 VAC or Hi-PoE power should follow the manufacturer's installation instructions and applicable Australian requirements. State and territory licensing requirements may apply to security equipment installation.
Applications
- Commercial and industrial CCTV systems
- Perimeter and site surveillance
- Transport hubs, car parks and public spaces
- Large retail, commercial and education premises
- Critical infrastructure and remote-area monitoring
- Applications requiring simultaneous wide-area coverage and detailed PTZ tracking
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance systems for use in security applications; applicable system design and performance requirements should be confirmed for the completed installation
Environmental Benefits
- Combines panoramic, PTZ and security-alarm functions in one device, potentially reducing the number of separate cameras and associated installation materials
- Dual-channel coverage can reduce duplicated hardware and cabling for wide-area surveillance applications
- IP66-rated construction and corrosion-resistant aluminium components support extended service life and reduced replacement waste
- Supports efficient network video compression using H.265 and H.265+
Warranty Information
Hikvision IP cameras supplied through authorised Australian channels are commonly covered by a 3-year back-to-base manufacturer warranty, subject to the seller's terms, proof of purchase and Hikvision Australia warranty conditions.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm regional stock and lead time before ordering.
