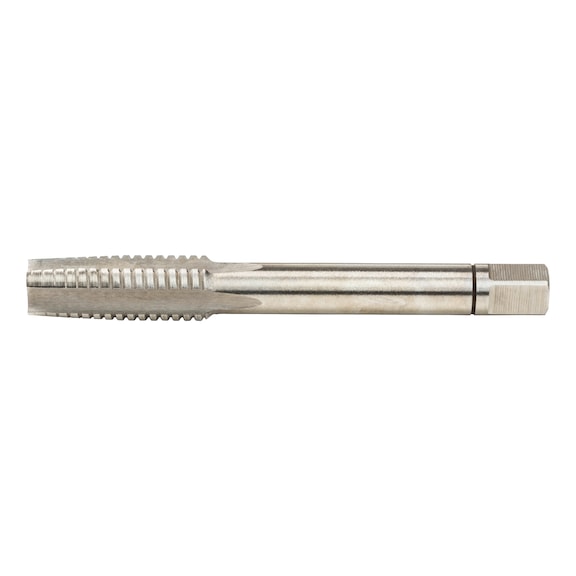

Taper Tap M6 | HSS Material | DIN 352 Compliant | Trim Cut Form A | by Wurth
The Taper Tap M6 is designed for precise metric thread cutting, featuring high-speed steel (HSS) construction for durability and compliance with DIN 352 standards. Ideal for machining applications, it produces metric ISO standard threads in steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength. Recommended for use by trained machinists, this tool ensures safety and precision in both through and blind holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Taper Tap M6 | HSS Material | DIN 352 Compliant | Trim Cut Form A | by Wurth
Brand: Wurth
SKU: 64016
Alternatively Known As: Metric Thread Cutter, Taper Tap M6, Hand Thread Tap, HSS Thread Cutter
Technical Specifications
- Type description: Taper tap
- Standards: DIN 352
- Thread type x nominal diameter: M6
- Pitch: 1.0 mm
- Length: 56 mm
- Thread length (metric thread): 19 mm
- Shank diameter: 6 mm
- Size of square: 4.9 mm
- Core hole diameter: 5.0 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 56mm x 56mm x 6mm
- Weight: 0.1 kg
Key Features
- Trim cut form A for precise thread cutting
- Complies with DIN 352 standard
- High-speed steel (HSS) material for durability
- Metric thread type M6 with 1.0 mm pitch
Professional Installation Requirements
- Use by trained machinists or professionals familiar with hand threading tools is recommended for safety and precision.
Applications
- Machining: Producing metric ISO standard threads by hand
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
- Used in through holes and blind holes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequent replacements and waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Taper Tap M6 is available now for immediate purchase. Ideal for machining applications requiring precise metric thread cutting.
