TDR Cable Length Meter | Measures Up to 3000 Feet | TDR Technology | Backlit LCD Display | by Wattmaster
The TDR Cable Length Meter is designed for precise cable length measurement up to 3000 feet, utilizing advanced Time Domain Reflectometry (TDR) technology for accurate distance-to-fault detection. Ideal for electrical contractors and data technicians, this meter features a full-colour backlit LCD display and supports multiple connection types, ensuring versatility in various applications, from electrical to data cable testing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TDR Cable Length Meter | Measures Up to 3000 Feet | TDR Technology | Backlit LCD Display | by Wattmaster
Brand: Wattmaster
SKU: A-501-915
Alternatively Known As: Cable Length Tester, TDR Cable Tester, Time Domain Reflectometer, Fault Locator Meter, Cable Fault Finder
Technical Specifications
- Cable length measurement up to 3000 feet (914 m)
- Velocity of Propagation (VoP) range: 20% to 99.9%
- Accuracy: ±(2% + 3 feet / 0.9 m)
- Display: Backlit full-colour LCD
- Power: 2 × AA Alkaline batteries
- Battery life: Approx. 15 hours active, 3 years standby

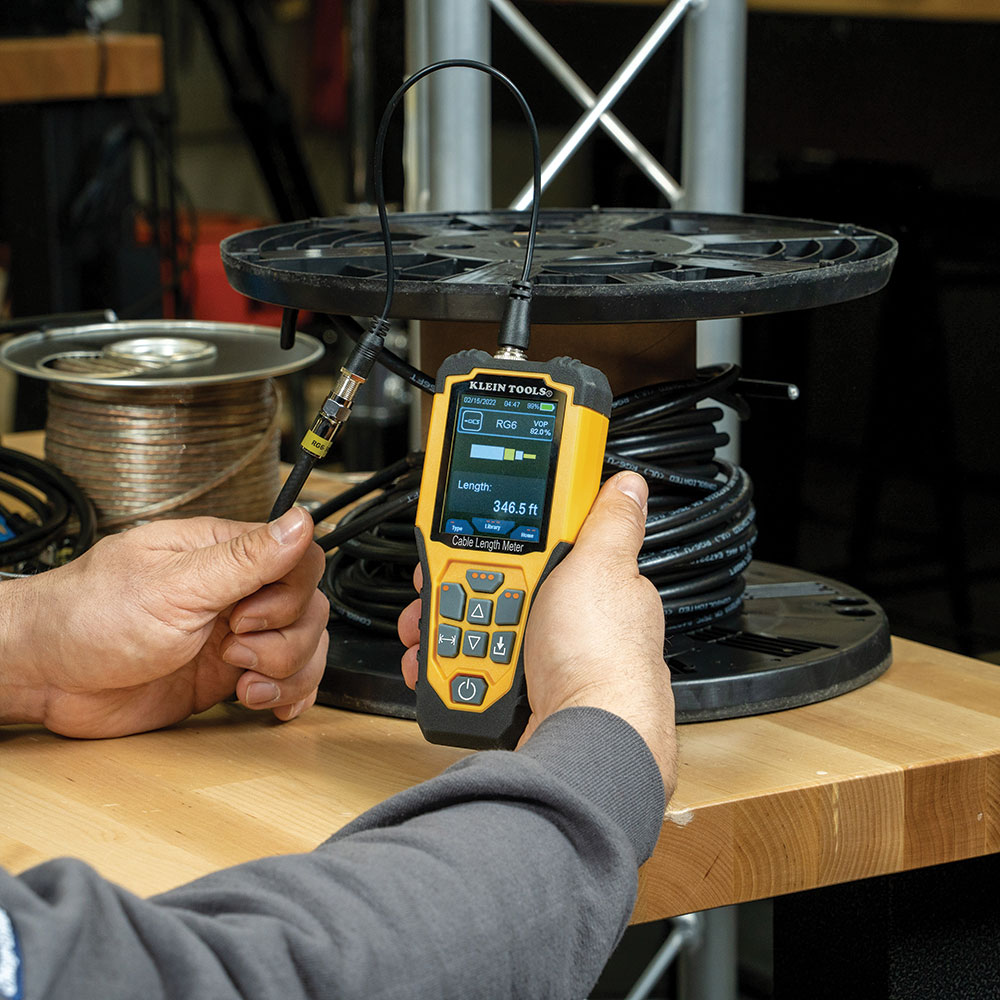

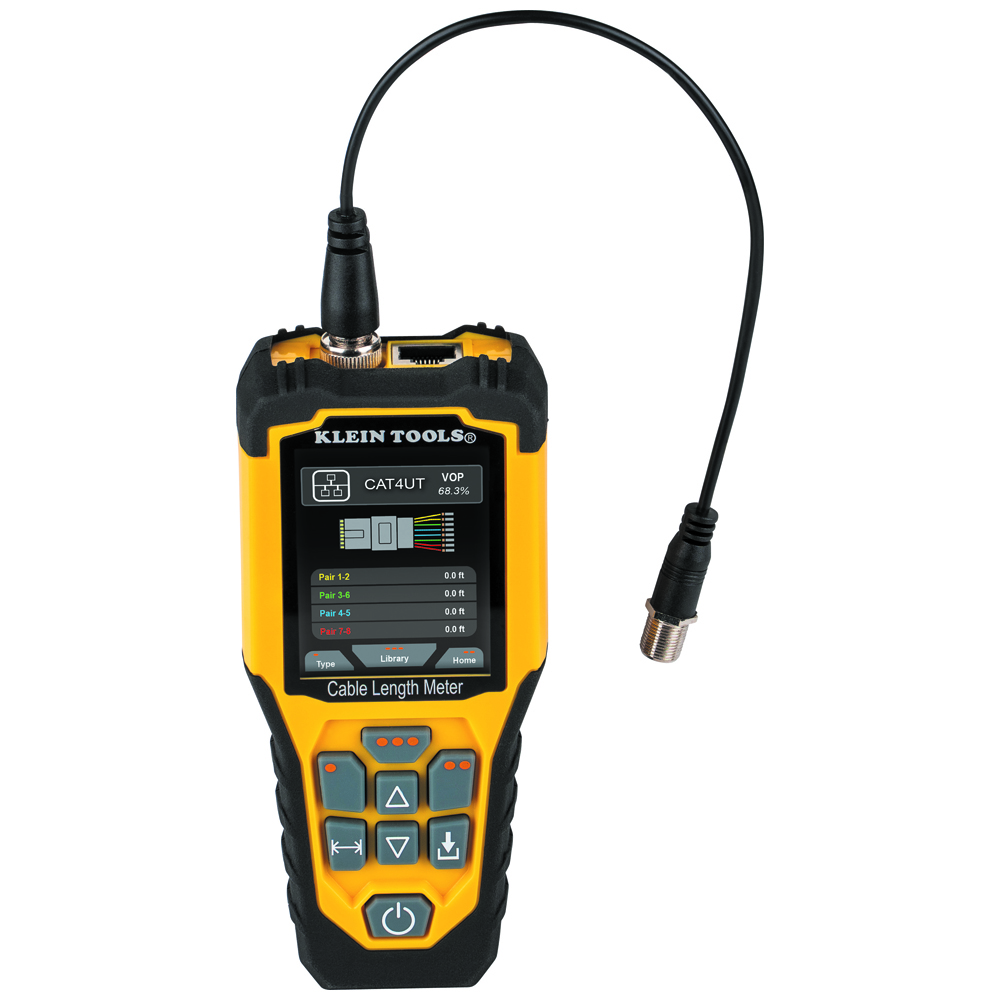

- Connection types: Alligator clips, Female Coax-F, Male Coax-F, RJ45, BNC
- Drop protection: 2 meters
- Weight: 215 g without batteries
- Material: ABS Plastic
- Dimensions (H x L x W): 157mm x 69mm x 36mm
- Weight: 0.215 kg
Key Features
- Measures cable length up to 3000 feet (914 m) for various cable types

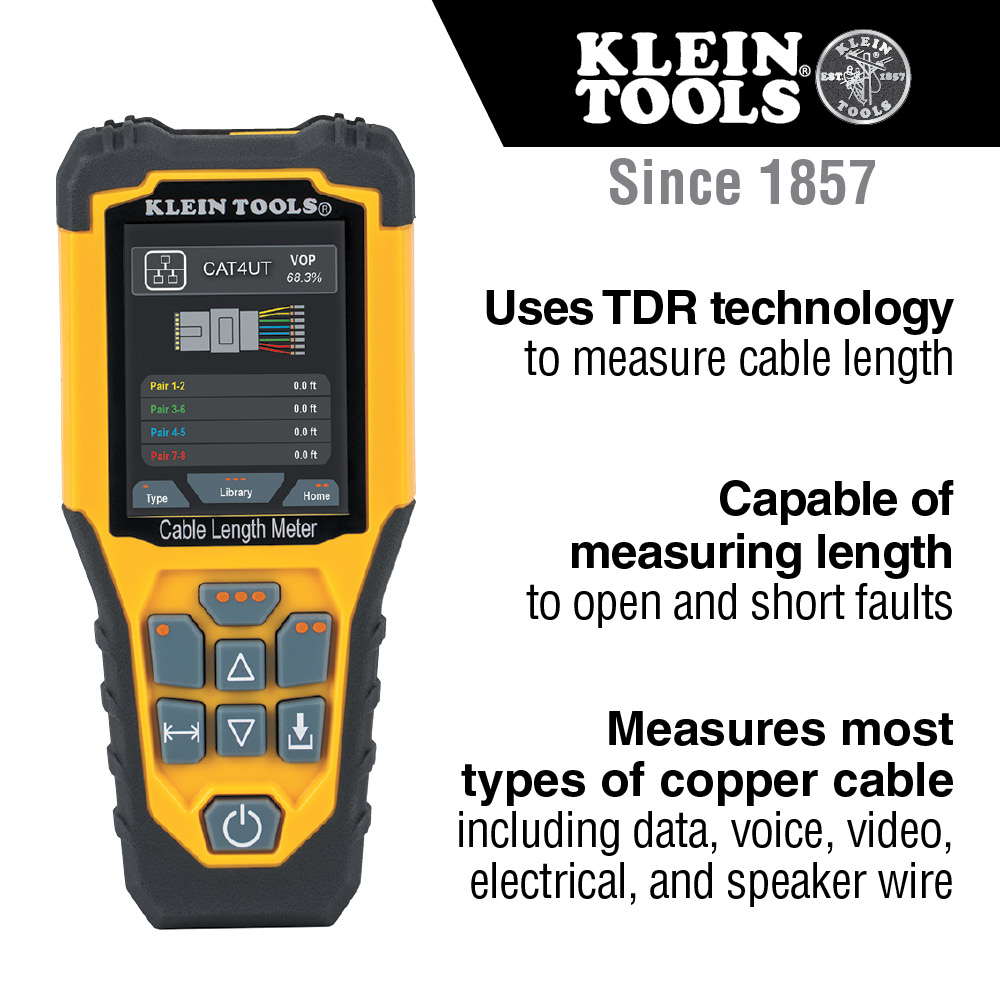

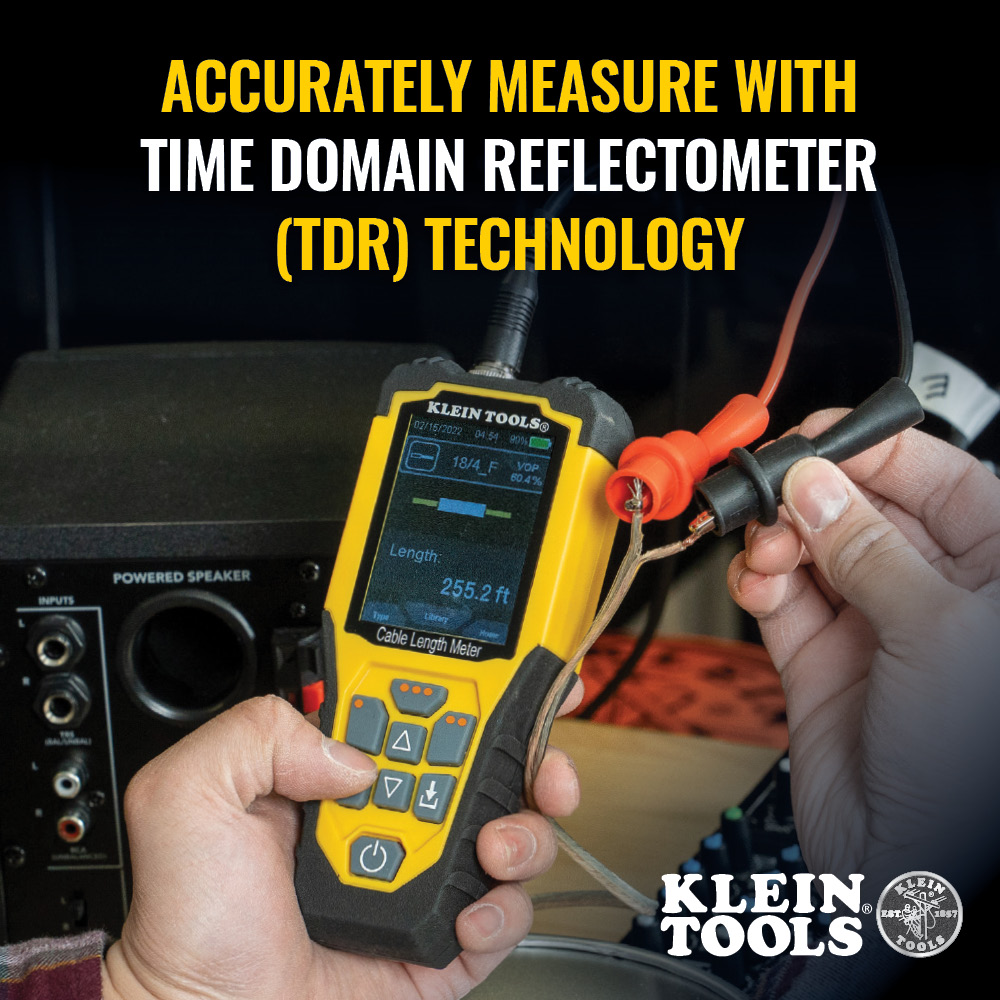

- Time Domain Reflectometry (TDR) technology for distance-to-fault detection
- Pre-programmed Velocity of Propagation (VoP) values for accurate measurements
- Stores custom VoP values for consistent accuracy

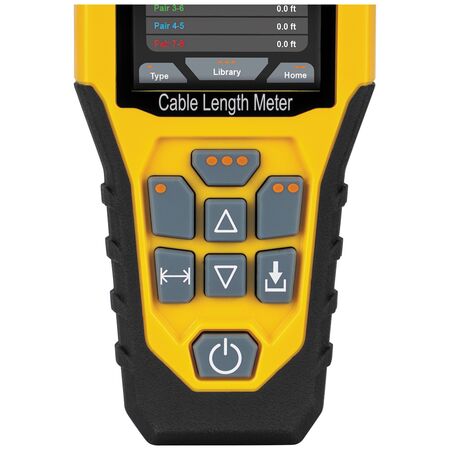

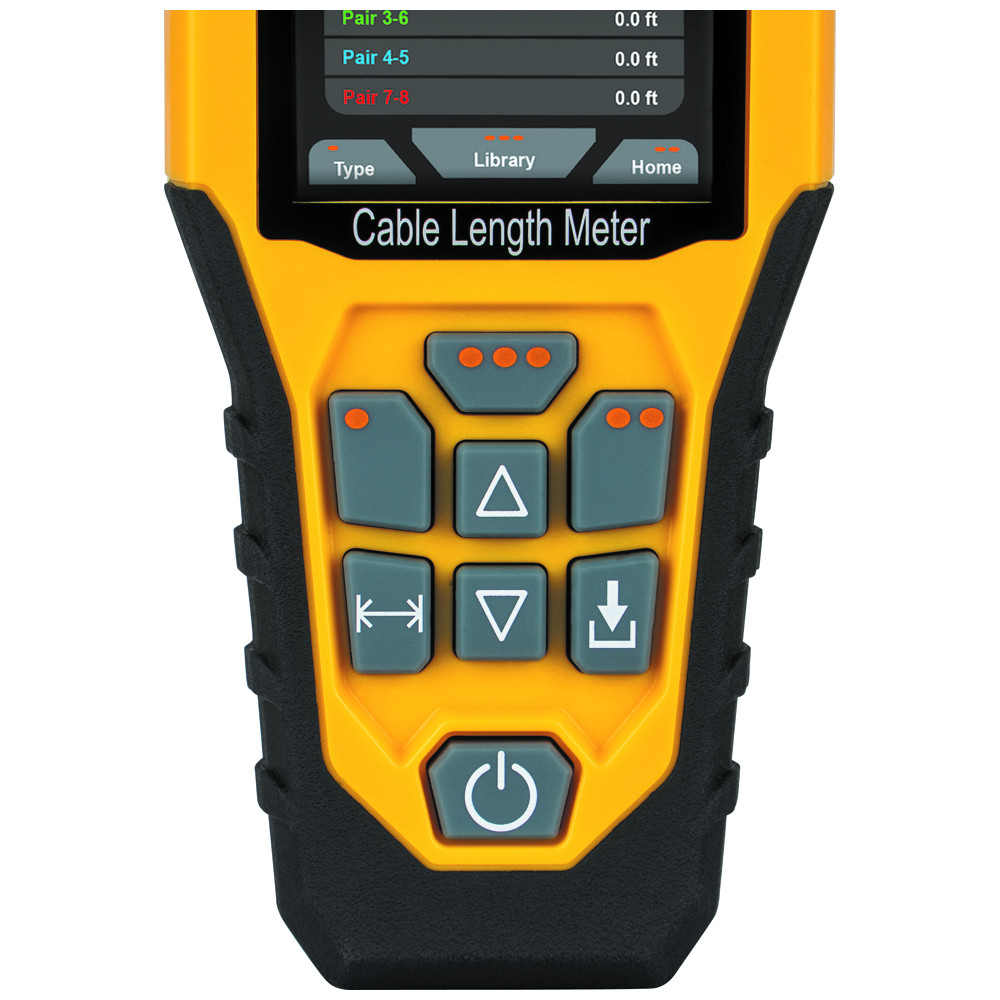

- Full-colour, interactive backlit LCD display
- Tone generation for tracing unenergised wires (requires separate analogue probe)

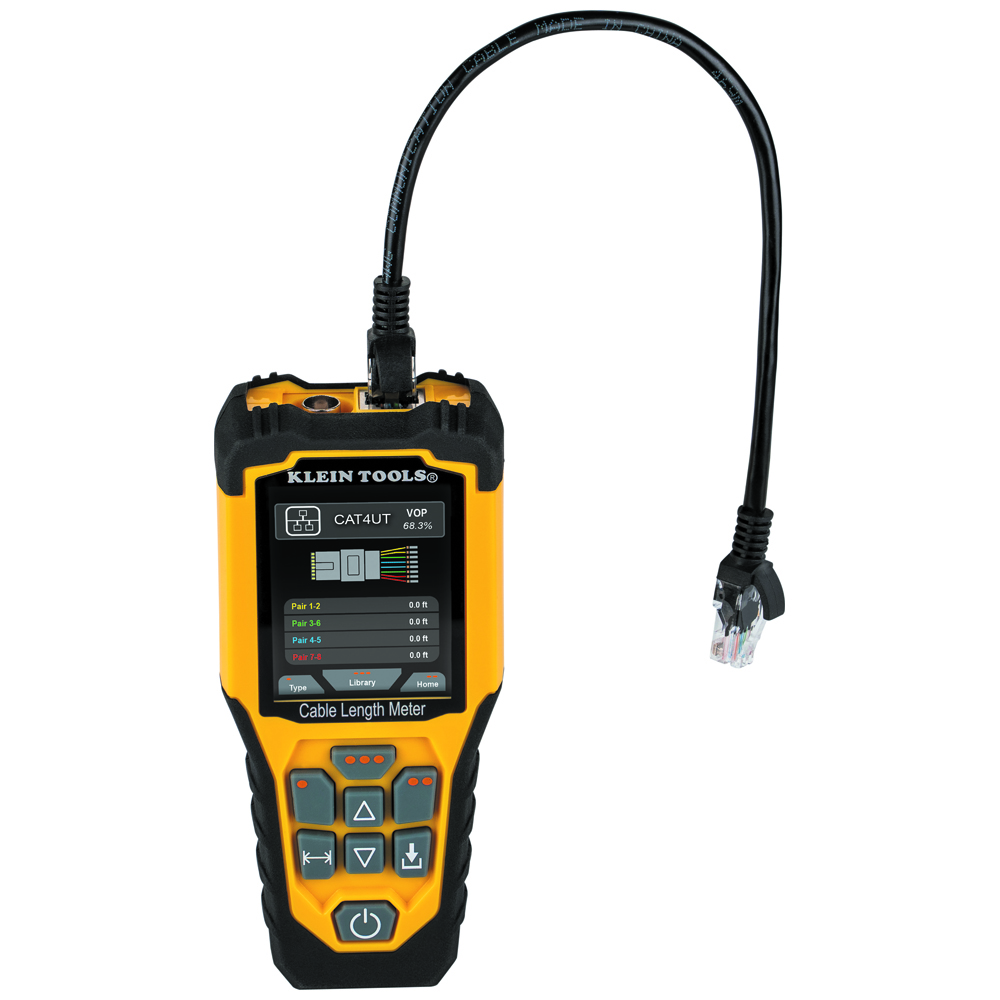

- Multiple connection types including Coax-BNC, alligator clips, and RJ45 jack
- Switchable metric and imperial units

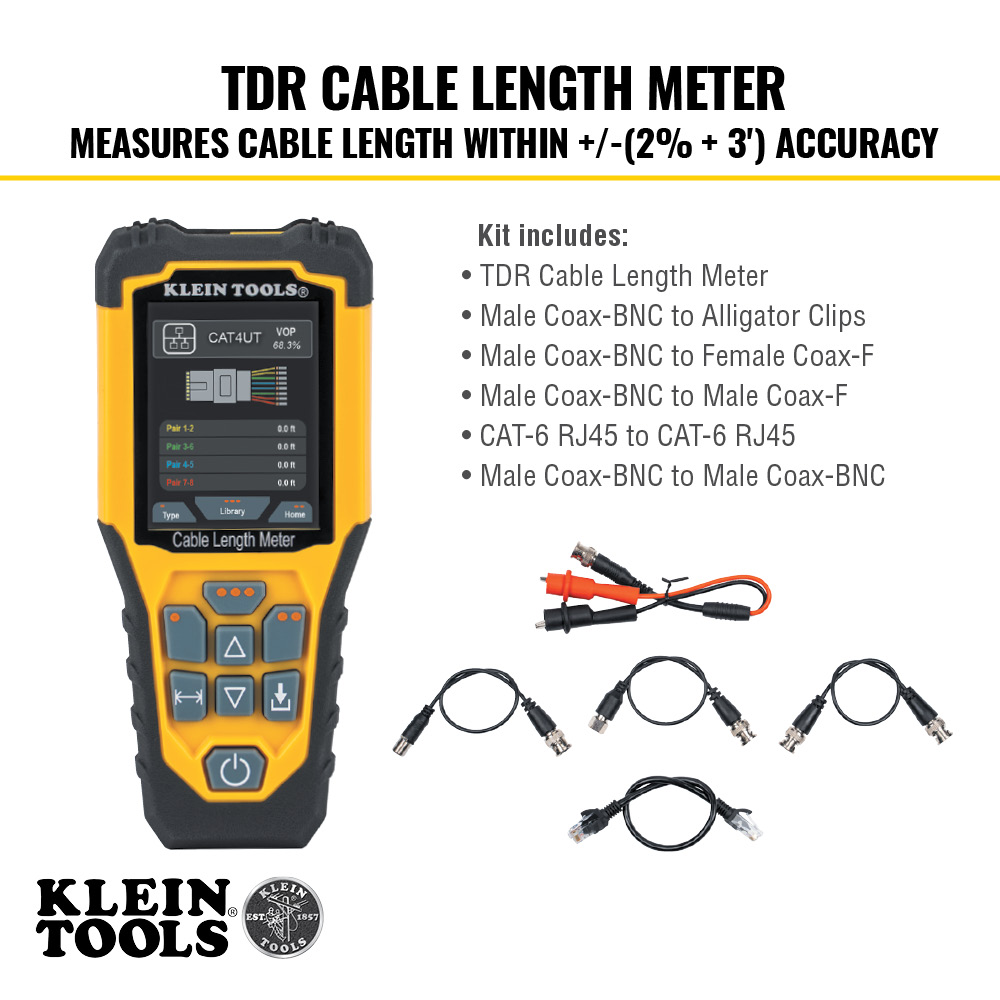

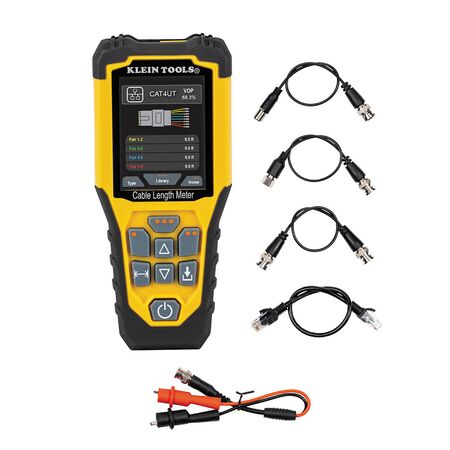

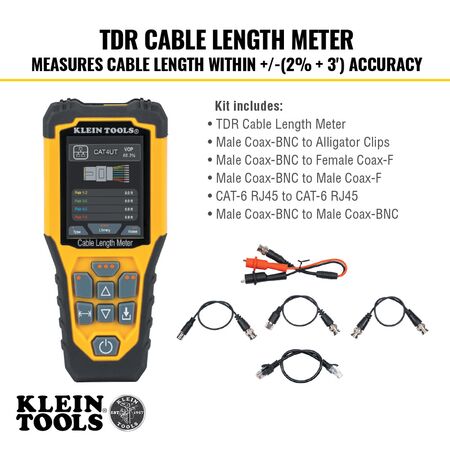

- Includes test leads, batteries, and padded carrying case
- Drop protection up to 2 meters
Professional Installation Requirements
- Professional use recommended; device should not be connected to energized cabling systems to ensure user safety.
Applications
- Electrical cable length measurement

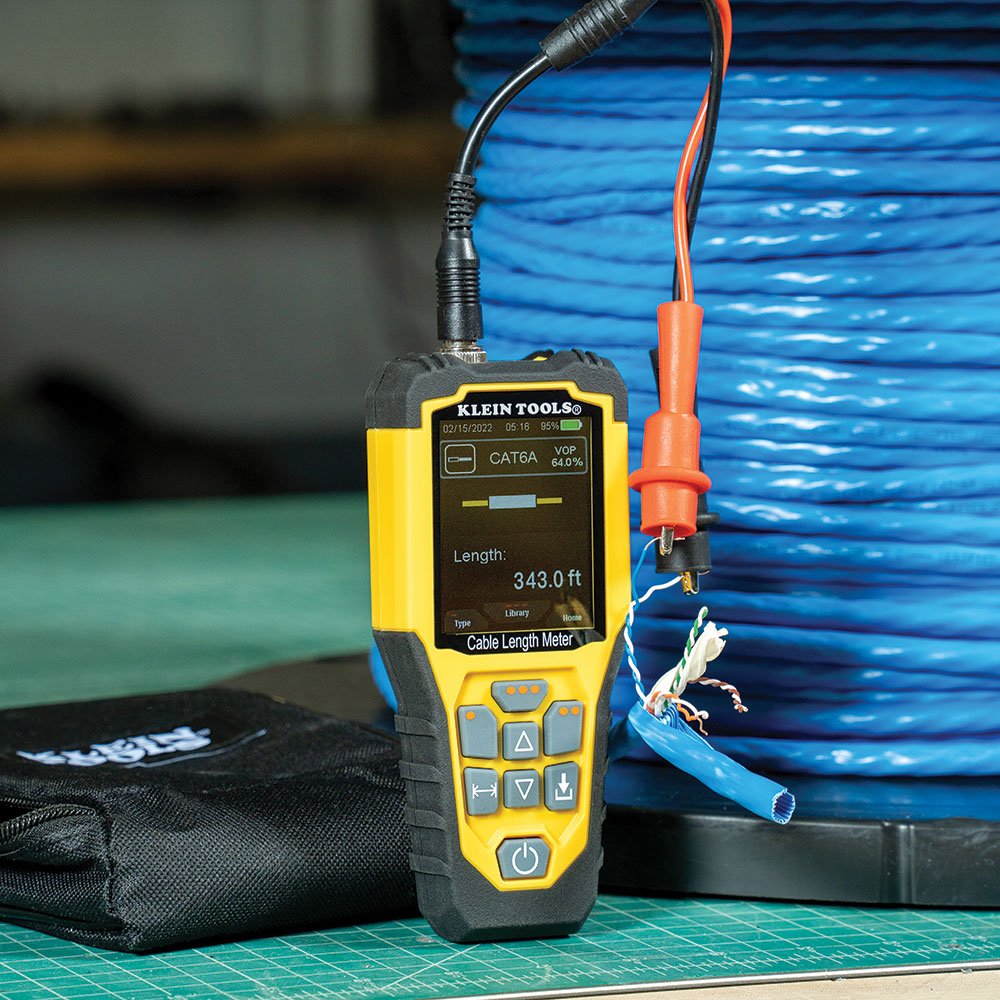

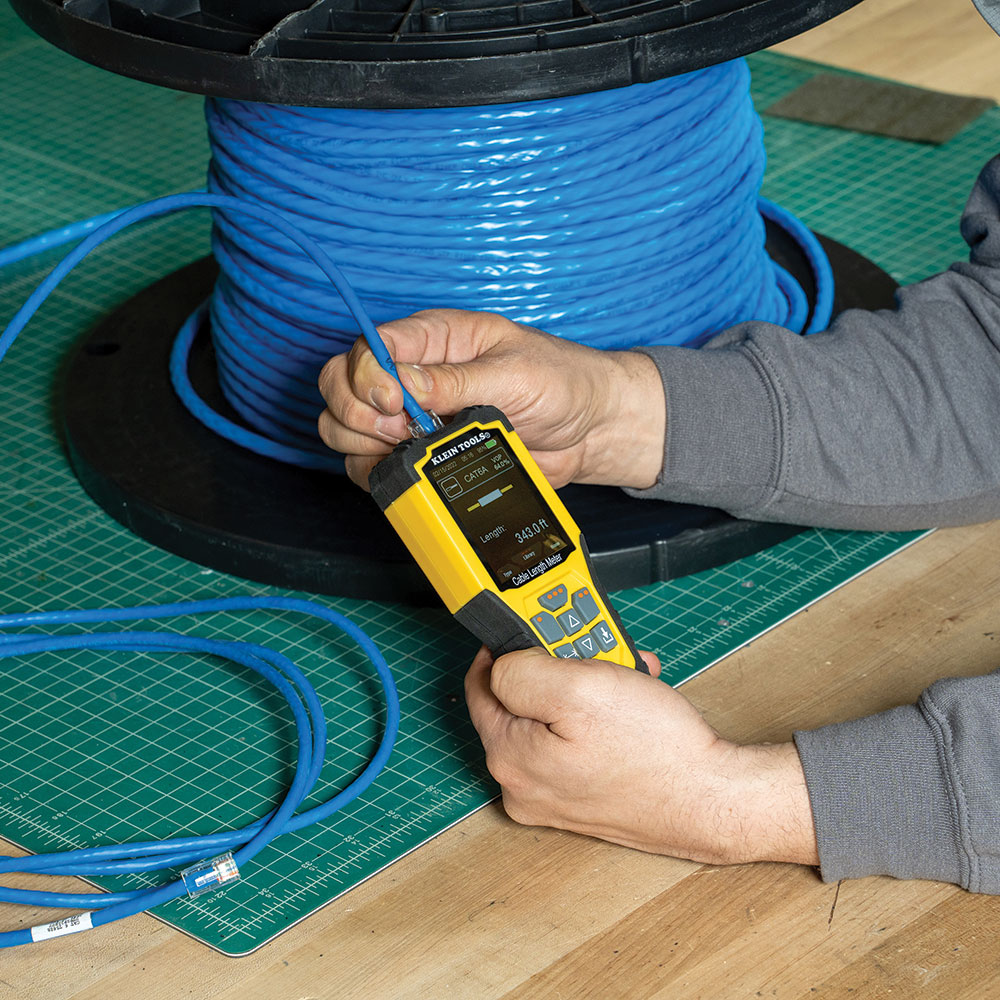

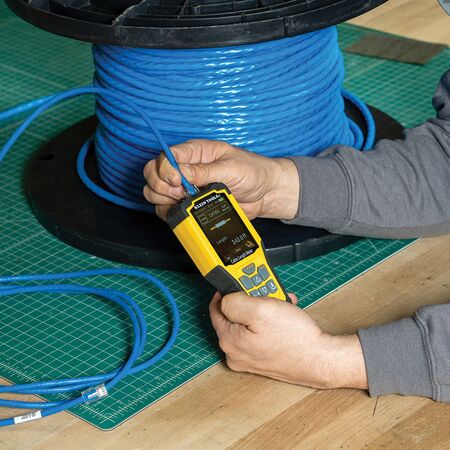

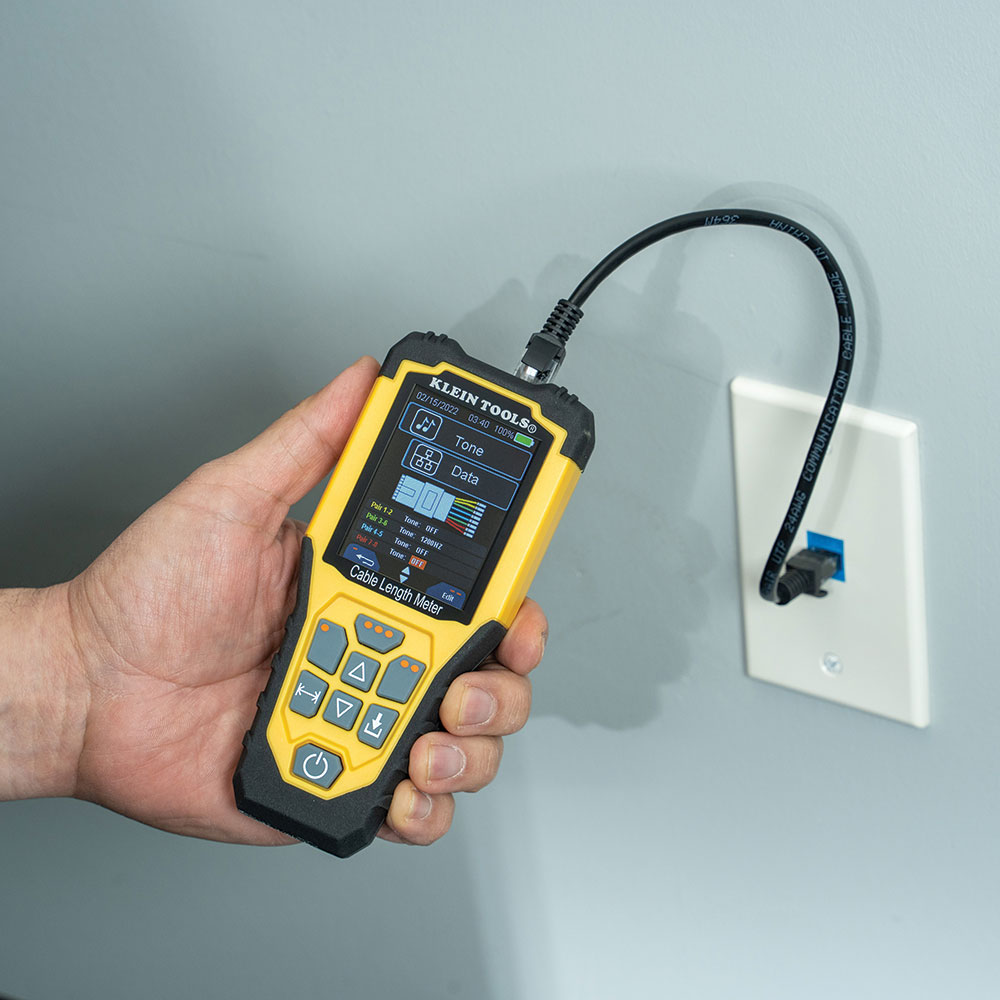

- Data cable length measurement

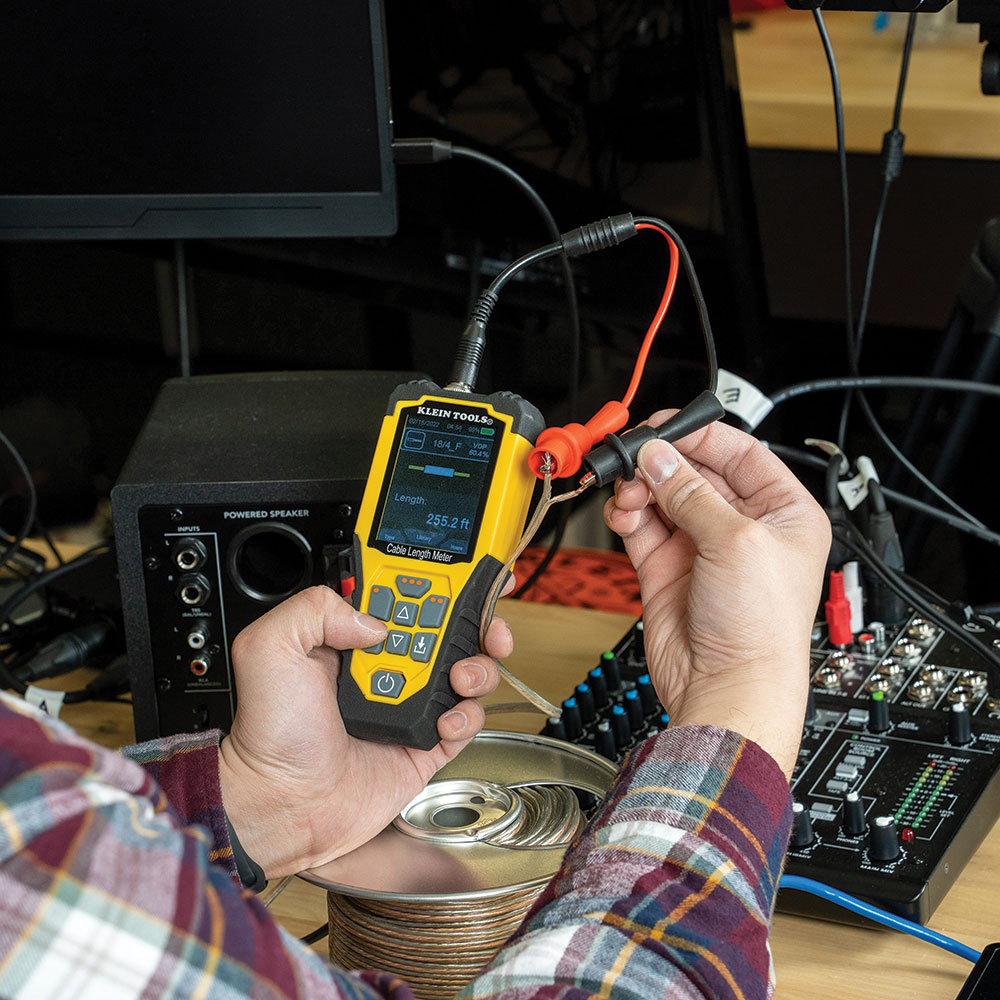

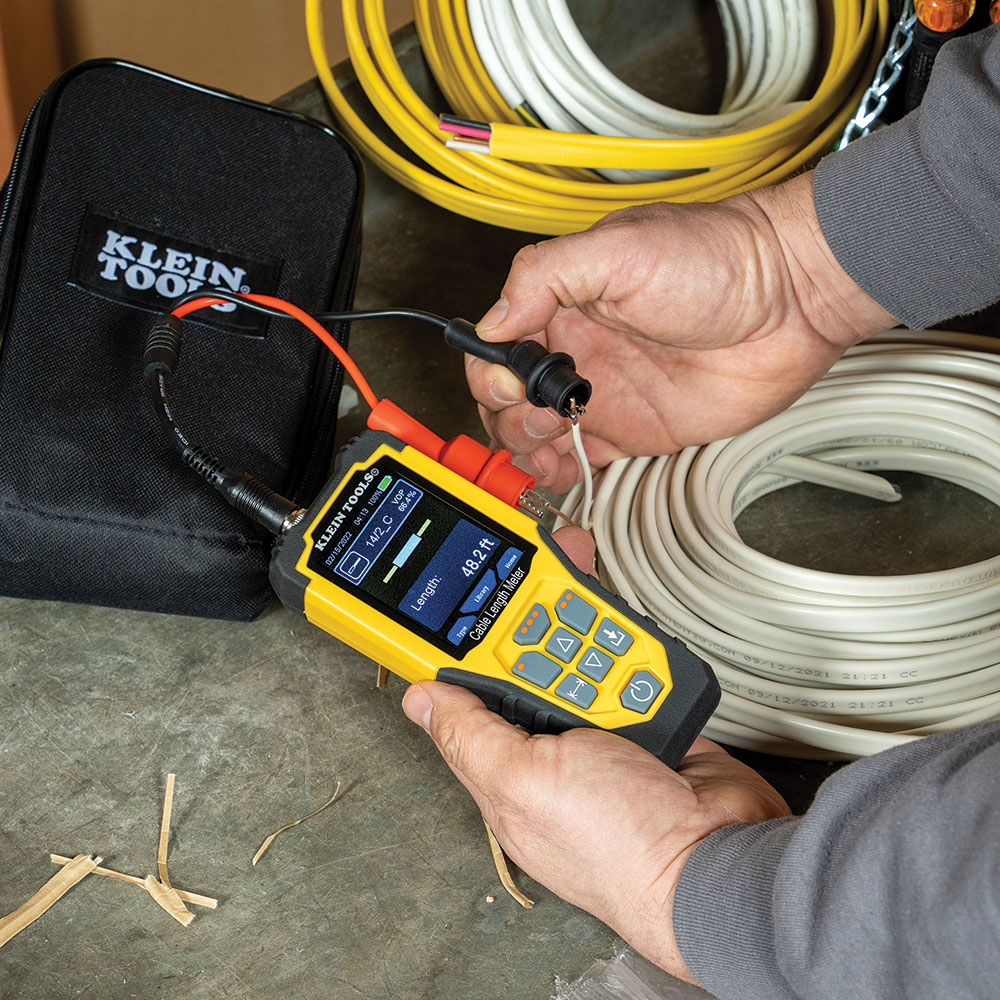

- Two-wire and Romex® cable testing
- Fault detection in cables including distance-to-fault, open or short circuits
- Cable tracing with tone generation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce cable waste by accurately locating faults and measuring cable lengths
- Portable design reduces need for multiple tools, minimizing resource use
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster TDR Cable Length Meter is available for immediate purchase, ideal for electrical contractors, data technicians, and maintenance professionals requiring precise cable length and fault detection.
