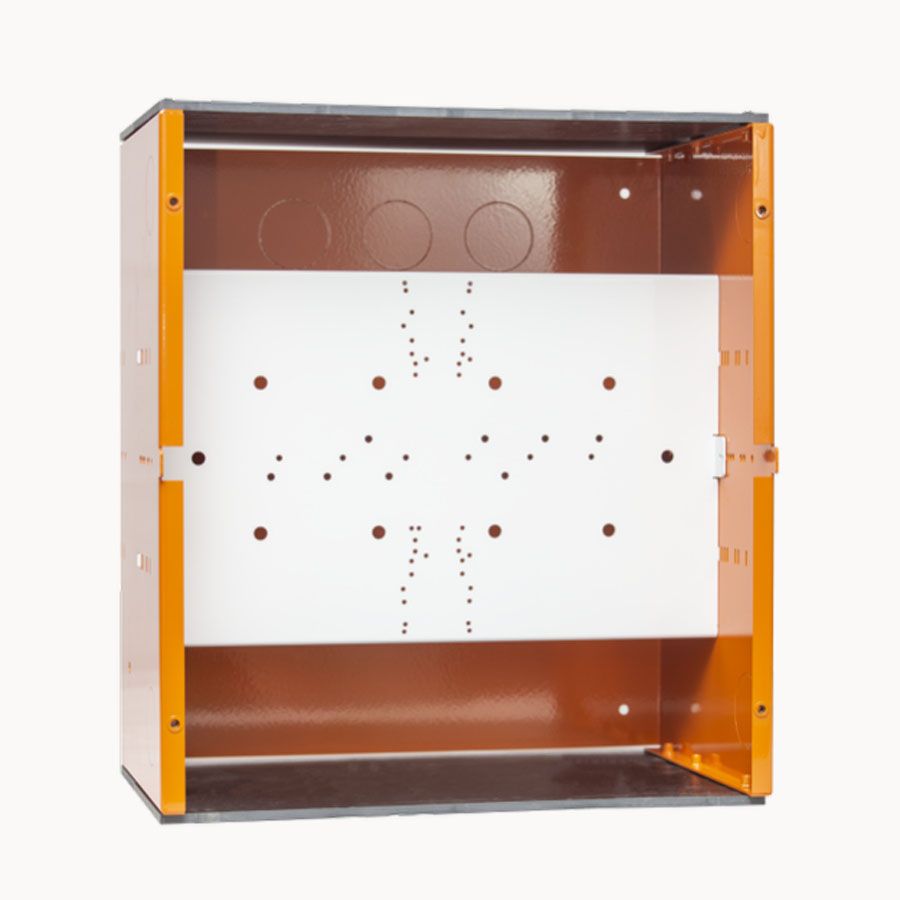

Tee Off Box Extra Large 850x600x250mm Gland Plate Orange Bovara
Bovara extra large tee off box enclosure features 850H x 600W x 250D 2mm galvanised steel body, IP20, split gland plate, white tray and X15 orange gloss finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bovara TOB.XL Tee-Off Box, Multi-Use Electrical Enclosure, Cable Termination Enclosure
Technical Specifications
- Model: TOB.XL
- Construction: 2mm galvanised mild steel body
- Ingress Protection: IP20
- Gland Plate: Split gland plate
- Internal Tray: White equipment tray
- Finish: Orange X15 gloss powder coating
- Cover Type: Lift-off cover with seal provision
- Cable Entry: Three 50mm diameter knockouts on each side
- Mounting: Wall mounted
- Dimensions (H x L x W): 850mm x 250mm x 600mm
- Weight: 42 kg
Key Features
- Extra large enclosure for high-capacity cable terminations and electrical equipment
- Robust 2mm galvanised mild steel construction
- Split gland plate simplifies cable entry and termination work
- White internal tray provides a clear equipment mounting surface
- Orange X15 gloss powder-coated finish
- Lift-off cover with provision for sealing
- Multiple 50mm cable-entry knockouts on each side
- IP20 protection for suitable indoor electrical installations
Professional Installation Requirements
- Installation, cable termination and any electrical equipment fit-out should be completed by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory service and installation rules. The IP20 rating is not suitable for exposed outdoor or wet environments without additional protection.
Applications
- Commercial electrical distribution installations
- Industrial cable termination and feeder distribution
- Multi-storey building tee-off and riser systems
- Switchboard and power distribution equipment enclosures
- Wall-mounted electrical equipment protection
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations and wiring practices
- AS/NZS 61439.1:2016 – Low-voltage switchgear and controlgear assemblies, where incorporated into a completed assembly
- AS/NZS 60529 – Degrees of protection provided by enclosures, applicable to the IP20 classification
Environmental Benefits
- Galvanised steel construction is recyclable at end of service life
- Powder-coated finish helps improve corrosion resistance and extend service life
- Durable construction can reduce replacement frequency and associated material waste
Warranty Information
No specific Bovara warranty period was located for this enclosure. Warranty coverage should be confirmed with Bovara or the authorised distributor before purchase.
Available Now
Available through authorised Bovara distributors in Australia.
