Tee Off Box Large 650x400x250mm Gland Plate Orange Bovara

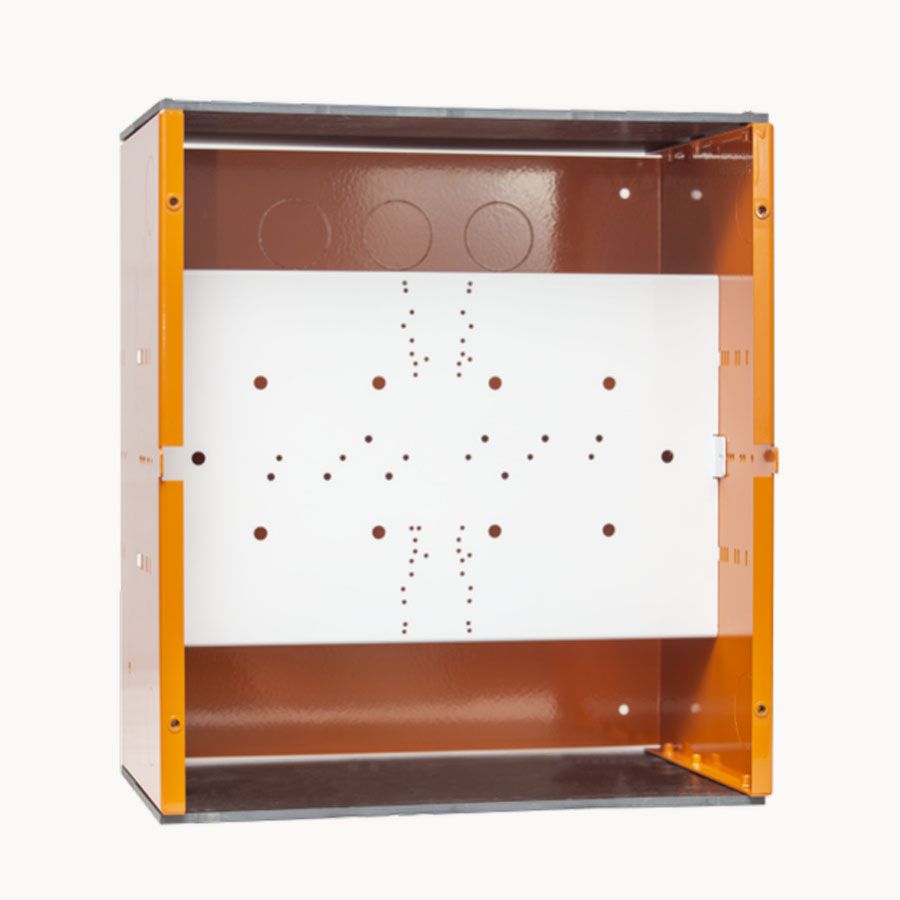

Bovara large tee off box enclosure features 650H x 400W x 250D 2mm galvanised steel body, IP20, split gland plate, white tray and X15 orange gloss finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Large Tee-Off Enclosure, Multi-Use Tee-Off Box, Electrical Tee-Off Cabinet, Power Distribution Enclosure
Technical Specifications
- Enclosure Type: Wall-mounted multi-use tee-off box
- Material: 2 mm galvanised mild steel
- Ingress Protection: IP20
- Finish: Orange X15 gloss powder coating
- Gland Plate: Split gland plate
- Internal Tray: White tray included
- Cover: Lift-off cover with seal provision
- Cable Knockouts: 50 mm diameter side knockouts
- Mounting: Wall-mounted
- Application: Suitable for tee-off and electrical distribution assemblies
- Dimensions (H x L x W): 650mm x 250mm x 400mm
- Weight: 20 kg
Key Features
- Large 650 mm high enclosure format
- Durable galvanised steel construction
- Split gland plate for simplified cable entry
- White internal tray for mounting electrical equipment
- Orange X15 gloss powder-coated finish
- Lift-off cover with provision for sealing
- IP20 protection for suitable indoor or protected locations
Professional Installation Requirements
- Installation, wiring and equipment fit-out must be performed by a licensed electrician in accordance with AS/NZS 3000 and the requirements of the completed electrical assembly. The IP20 enclosure is not weatherproof and must be installed in a suitable protected location.
Applications
- Commercial building power distribution
- Multi-storey electrical tee-off installations
- Electrical switchgear and protection equipment housings
- Metering and power distribution projects
- Custom-built low-voltage electrical assemblies
Standards & Compliance
- AS/NZS 3000:2018 for associated electrical installation work
- AS/NZS 60529 for the stated IP20 enclosure classification
- AS/NZS 61439.1:2016 applicable to the completed low-voltage switchgear and controlgear assembly
Environmental Benefits
- Galvanised steel is recyclable at the end of the enclosure's service life
- Durable steel construction and powder coating can extend service life and reduce replacement waste
- Reusable enclosure format supports repairable and customisable electrical assemblies
Warranty Information
Bovara-specific warranty terms are not publicly specified; confirm applicable warranty coverage with the authorised distributor before purchase.
Available Now
Available through authorised Bovara distributors in Australia.
