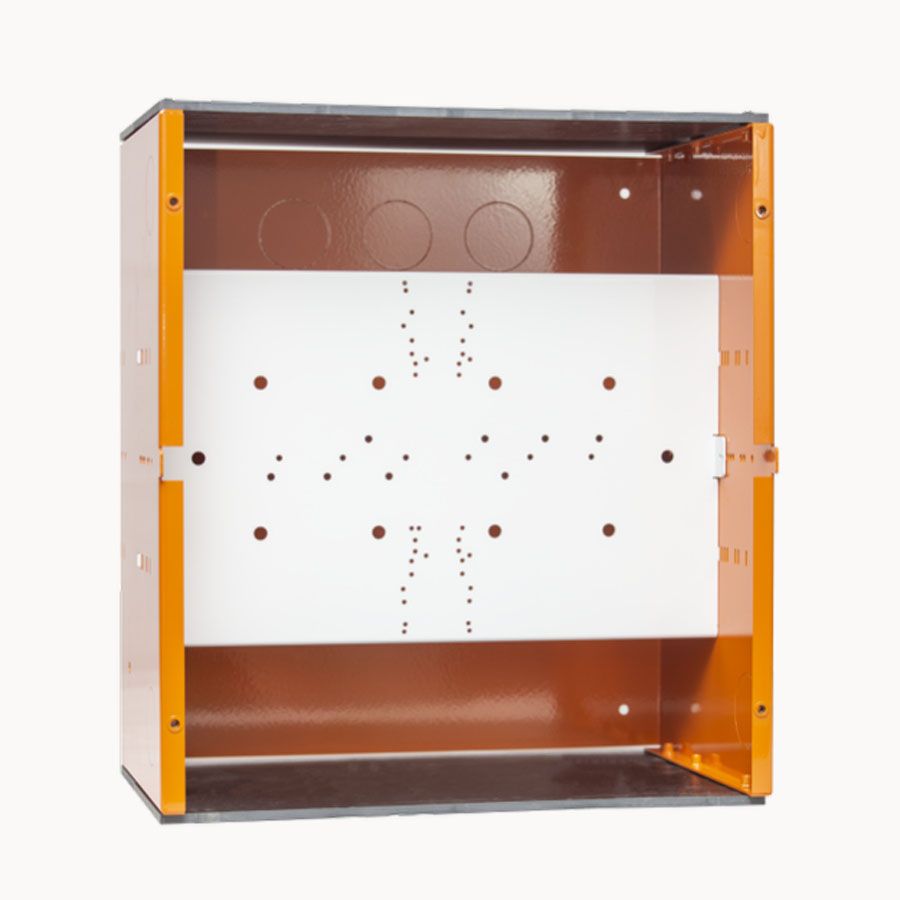

Tee Off Box Medium 450x400x250mm Gland Plate Orange Bovara
Bovara medium tee off box enclosure features 450H x 400W x 250D 2mm galvanised steel body, IP20, split gland plate, white tray and X15 orange gloss finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Medium Tee Off Enclosure, Electrical Tee Off Box, Switchboard Tee Off Enclosure
Technical Specifications
- Enclosure Type: Medium tee off box enclosure
- Material: 2 mm galvanised mild steel
- Ingress Protection: IP20
- Gland Plate: Split gland plate
- Internal Tray: White tray included
- Cable Entry: Three 50 mm diameter knockouts on each side
- Cover: Lift-off cover with seal provision
- Mounting: Wall mounted
- Finish: Orange X15 gloss powder coat
- Item Code: TOB.M
- Dimensions (H x L x W): 450mm x 250mm x 400mm
- Weight: 18 kg
Key Features
- 450 x 400 x 250 mm medium enclosure format
- Robust 2 mm galvanised steel construction
- Split gland plate for cable entry and termination
- White internal tray for mounting and cable management
- Lift-off cover with provision for sealing
- Orange X15 gloss powder-coated finish
- Suitable for tee off assemblies, fuse gear and circuit breaker protection
Professional Installation Requirements
- Installation, cable termination and the fitting of electrical protection equipment must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory service and installation rules.
Applications
- Electrical distribution and tee off assemblies
- Commercial and industrial switchboard installations
- Housing fuse gear and circuit breaker protection
- Cable termination and power take-off points
- Indoor electrical equipment enclosures
Standards & Compliance
- AS/NZS 3000:2018 for electrical installation and wiring requirements
- AS 60529:2025 reference for the stated IP20 enclosure classification
- AS/NZS 61439.1:2016 may apply where the enclosure is assembled into a low-voltage switchgear and controlgear assembly
Environmental Benefits
- Galvanised steel can be recovered and recycled at the end of the enclosure’s service life
- Durable steel construction and powder-coated finish support extended product life
- Reusable enclosure format can reduce replacement waste when internal equipment is upgraded
Warranty Information
1-year warranty against manufacturing defects, subject to Bovara and supplying distributor terms and Australian Consumer Law.
Available Now
Available through authorised Bovara distributors in Australia.
