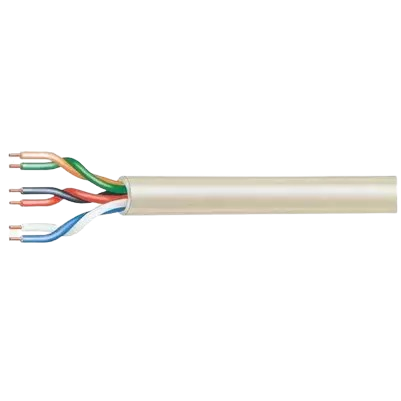

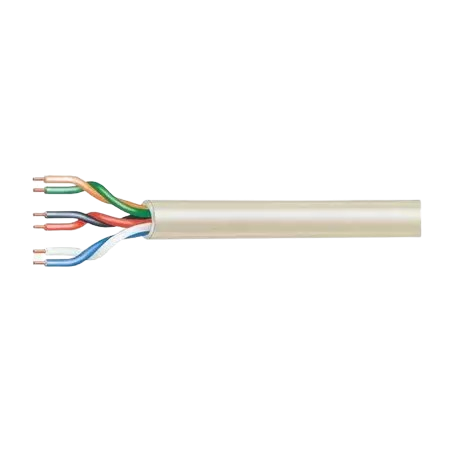

TELE50P-B 50 Pair 0.50mm Internal Telephone Cable Electra
50-pair indoor telephone and communications cable with 0.50mm copper conductors, polyethylene insulation and PVC sheath for internal wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 50 Pair Telephone Cable, 50 Pair Internal Communications Cable, 1/0.50mm Telephone Cable, Multi-Pair Internal Voice Cable
Technical Specifications
- Cable Type: Indoor telephone and communications cable
- Pair Count: 50 pairs
- Conductor: Plain annealed copper, 1/0.50mm
- Number of Cores: 100
- Insulation: Polyethylene
- Outer Sheath: PVC
- Sheath Colour: Cream
- Reference Standard: TIA-568B-C.2
- Maximum Conductor Resistance: 96 ohm/km
- Insulation Resistance: Greater than 1000 Mohm.km
- Approximate Overall Diameter: 15.0mm
- Minimum Installed Bending Radius: 135mm
- Maximum Pulling Tension: 1380N
- Pack Length: 1000m
- Dimensions (H x L x W): 15mm x 1000000mm x 15mm
- Weight: 340 kg
Key Features
- 50 individually identifiable pairs for high-density telephone and communications wiring
- Solid plain annealed copper conductors for reliable signal transmission
- Polyethylene-insulated conductors with a durable PVC outer sheath
- Designed for indoor use in telephone exchanges, commercial switchboards and interconnecting wiring systems
- Suitable for voice circuits and some lower-speed data applications
- Colour-coded conductors support pair identification during termination
Professional Installation Requirements
- Installation should be performed by an appropriately registered telecommunications cabler in accordance with AS/CA S009 installation requirements. Maintain required separation from mains wiring and observe the cable's 135mm minimum installed bending radius.
Applications
- Telephone exchanges and equipment rooms
- Commercial switchboards and private automatic branch exchanges
- Building telecommunications distribution systems
- Interconnecting internal communications wiring
- Legacy analogue telephone and voice systems
- Selected low-speed data and control applications
Standards & Compliance
- AS/CA S008:2020 Requirements for Customer Cabling Products, including Amendment No. 1:2025, is the applicable Australian customer-cabling product standard
- AS/CA S009:2020 Installation Requirements for Customer Cabling applies to fixed or concealed telecommunications cabling installation
Environmental Benefits
- Copper conductors are recyclable at end of service life
- Durable PE insulation and PVC sheathing can support long service life and reduce replacement waste
- The 1000m bulk pack can reduce packaging and handling per metre compared with multiple shorter cable lengths
Warranty Information
12 months against manufacturing defects, subject to the supplier's warranty terms.
Available Now
Available through Electra Cables and authorised Australian electrical and communications distributors, subject to distributor stock.
