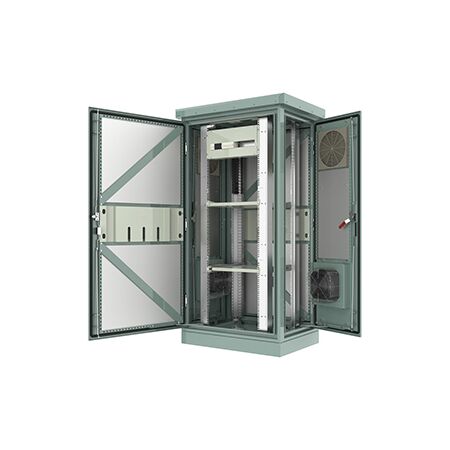

Telecommunication Field Cabinet | IP56 | Marine Grade Aluminium | Smoke Blue by B&R Enclosures
Telecommunication field cabinet with IP56 rating and marine grade aluminium—ideal for housing ITS equipment. Built for harsh Australian conditions, with powdercoated smoke blue finish and lockable metering section.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: QLD MRTS Standard & Extended ITS - Metered
Brand: B&R Enclosures
SKU: FEQ180906/A/M
Alternatively Known As: Telecommunication Field Cabinet, ITS Equipment Enclosure, Outdoor Equipment Housing
Technical Specifications
- IP Rating: IP56
- Material: 2mm 5052 H32 marine grade aluminium
- Powdercoated finish: T33 Smoke Blue with gloss finish
- Lockable supply authority metering section (FEQ180906/A/M only)
- 100mm stainless steel mounting base
- Sloped sun canopy for rain runoff
- Four concealed lifting lugs
- Stainless steel lockable swing handle
- Dimensions (H x L x W): 1850mm x 620mm x 900mm
- Weight: 50 kg
Key Features
- Designed specifically to protect equipment from harsh Australian conditions.
- Complies with the QLD MRTS226 Telecommunication Field Cabinet.
- Configurable for both 19″ and 21″ equipment.
- Fully wired including load centre, lighting, power rails and high flow fans.
- IP56 rating for weather protection.
- Tested for up to 500W heat load with included fan & filter ventilation system.
- 3-point locking to front and rear door.
- Manufactured from 2mm 5052 H32 marine grade aluminium.
Professional Installation Requirements
- Professional installation is recommended to ensure compliance with local regulations and optimal performance.
Applications
- Housing of intelligent transport systems (ITS) equipment
- GPS receivers and transmitters
- Road monitoring and traffic management equipment
- Radio communications equipment
Standards & Compliance
- Complies with QLD MRTS226 Telecommunication Field Cabinet.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The QLD ITS Enclosure is available now for immediate purchase, ideal for infrastructure projects requiring robust protection for electronic equipment.
