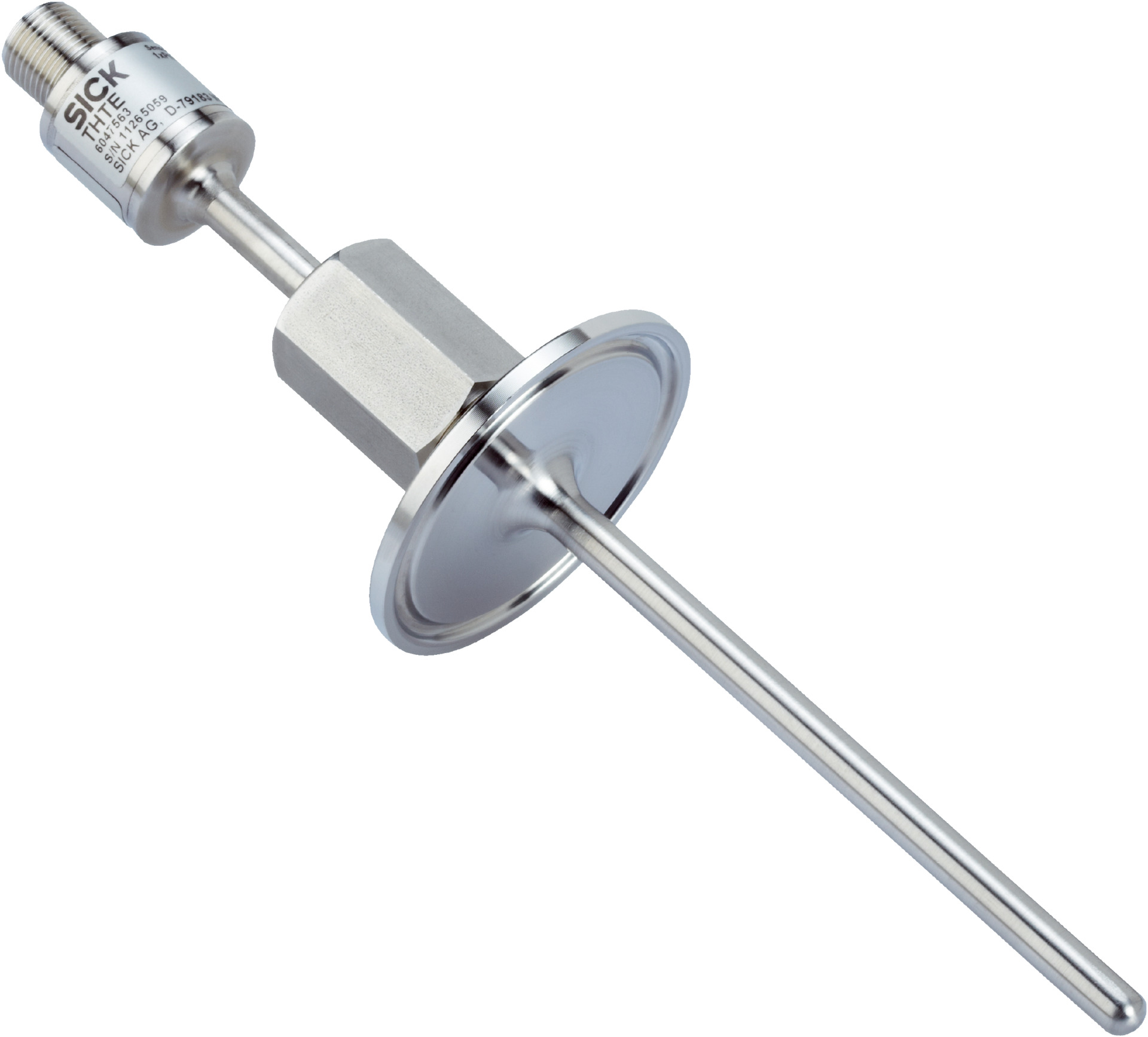

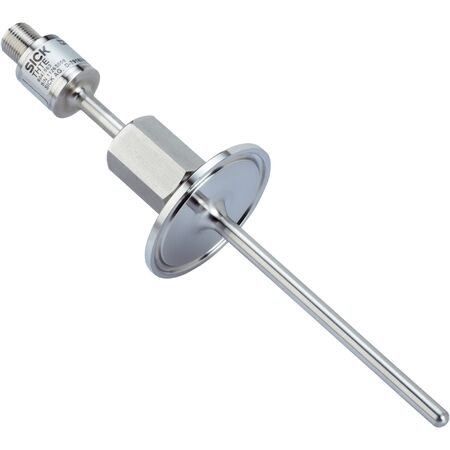

Temperature Sensor THTE-1PA541506MZ | -50°C to +150°C Range | Hygienic DIN 11851 Connection | IP67 & IP69 Rated | by SICK
The THTE-1PA541506MZ temperature sensor is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +150°C and a Pt100 sensor element with a 4-wire output for high accuracy. Ideal for the food and beverage industry, this sensor ensures hygienic process connections and is built with durable stainless steel for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Temperature Sensor THTE-1PA541506MZ | -50°C to +150°C Range | Hygienic DIN 11851 Connection | IP67 & IP69 Rated | by SICK
Brand: SICK
SKU: 6047627
Alternatively Known As: Pt100 Temperature Sensor, Hygienic Temperature Probe, Industrial Temperature Sensor, DIN 11851 Temperature Sensor
Technical Specifications
- Measuring range: -50 °C to +150 °C
- Sensor element: Pt100
- Output signal: Pt100, 4-wire
- Process connection: Conical coupling (DIN 11851) DN 40 with union nut
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 40 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Measuring current: 0.1 mA to 1 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC
- Response time: t50 ≤ 4.7 s, t90 ≤ 12.2 s
- Shock resistance: 50 g, 6 ms
- Ambient temperature range: -40 °C to +85 °C
- Dimensions (H x L x W): 150mm x 150mm x 40mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +150 °C
- Pt100 sensor element with 4-wire output signal for high accuracy
- Conical coupling (DIN 11851) DN 40 with union nut for hygienic process connection
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for protection against dust and water ingress
- Electrical safety protection class III with dielectric strength of 500 V AC
- Fast initialization time of max. 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic process connections
- Chemical and pharmaceutical industries requiring precise temperature monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- High accuracy sensor reduces energy waste by enabling precise temperature control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTE-1PA541506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
