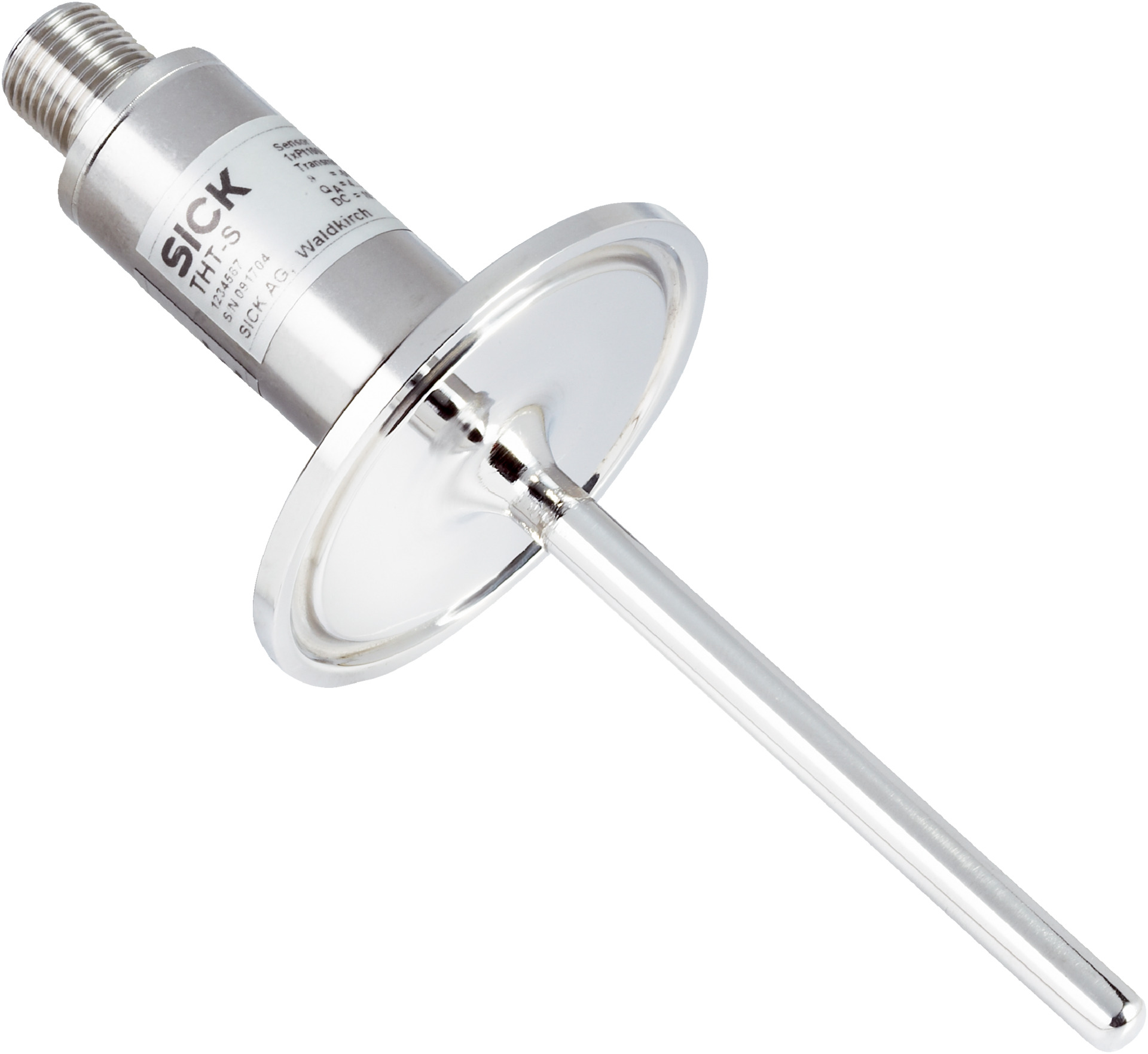

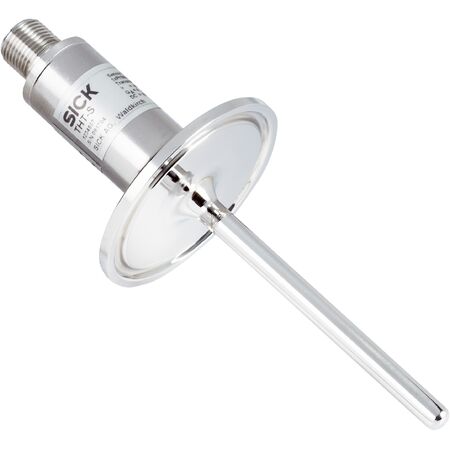

Temperature Sensor THTS-1AAT50256MZ | -50°C to +150°C Range | Pt1000 Element | IP67 & IP69 Rated | by SICK
The THTS-1AAT50256MZ temperature sensor is designed for precise industrial temperature measurement, featuring a measuring range from -50°C to +150°C and a Pt1000 sensor element for accurate readings. With a robust stainless steel construction and IP67/IP69 ratings, it's perfect for hygienic applications in the food, beverage, and pharmaceutical industries, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Temperature Sensor THTS-1AAT50256MZ | -50°C to +150°C Range | Pt1000 Element | IP67 & IP69 Rated | by SICK
Brand: SICK
SKU: 6068281
Alternatively Known As: Industrial temperature sensor, Pt1000 temperature probe, Hygienic temperature sensor, Tri-clamp temperature sensor
Technical Specifications
- Measuring range: –50 °C to +150 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Tri-clamp ½", ¾"
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 16 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature range: –40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 120mm x 120mm x 20mm
- Weight: 0.2 kg
Key Features
- Measuring range from –50 °C to +150 °C
- Pt1000 sensor element for accurate temperature sensing
- 2-wire 4 mA to 20 mA output signal
- Tri-clamp process connection options of ½" and ¾"
- Stainless steel 1.4435 / 316L wetted parts with smooth surface finish (Ra ≤ 0.8 µm)
- IP67 and IP69 rated enclosure for protection against dust and water ingress
- Supply voltage range from 10 V DC to 35 V DC
- Electrical safety with protection class III and reverse polarity protection
- Fast initialization time of maximum 4 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry with hygienic process connections
- Pharmaceutical and chemical processing requiring precise temperature monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 2-wire 4-20 mA output
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1AAT50256MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
