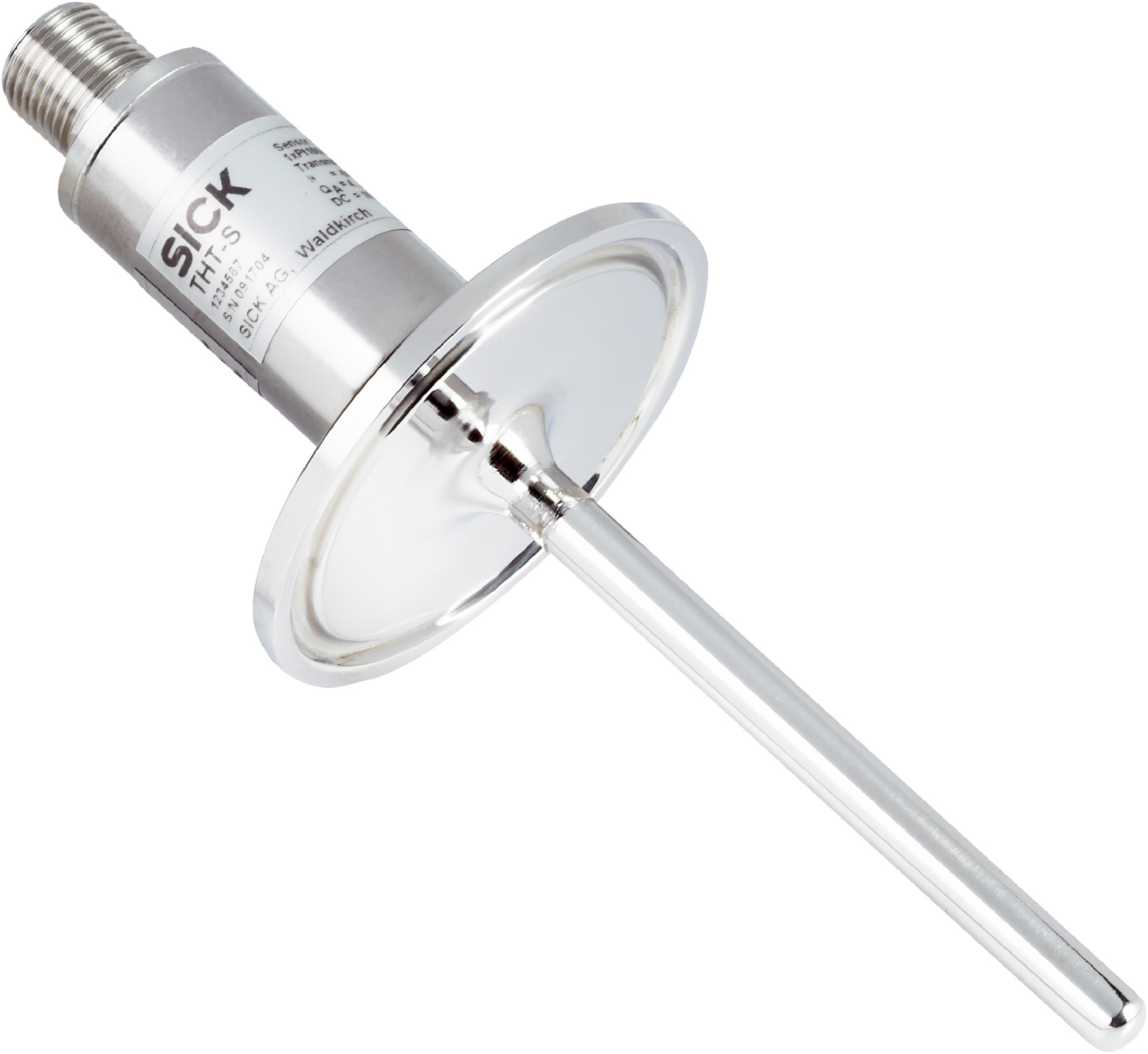

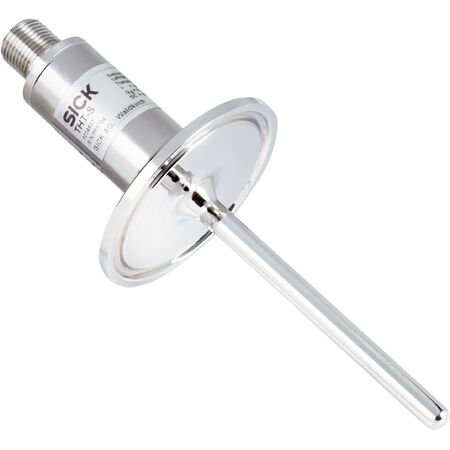

Temperature Sensor THTS-1AB520506MZ | -50°C to +250°C Range | IP67 & IP69 Rated | by SICK
The THTS-1AB520506MZ temperature sensor is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C and a Pt1000 sensor element. With an IP67 and IP69 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for food, beverage, and chemical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Temperature Sensor THTS-1AB520506MZ | -50°C to +250°C Range | IP67 & IP69 Rated | by SICK
Brand: SICK
SKU: 6047739
Alternatively Known As: Pt1000 Temperature Sensor, Industrial Temperature Probe, 4-20mA Temperature Transmitter, Hygienic Temperature Sensor
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Conical coupling (DIN 11851) DN 25 with union nut
- Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm
- Maximum process pressure: ≤ 40 bar
- Housing material: Stainless steel (CrNi)
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67 and IP69
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: ≤ 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy: Class A according to IEC 60751
- Response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Ambient temperature range: -40 °C to +85 °C
- Shock resistance: 50 g, 6 ms
- Relative humidity: ≤ 100%
- Dimensions (H x L x W): 100mm x 150mm x 25mm
- Weight: 0.3 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Conical coupling (DIN 11851) DN 25 with union nut for secure process connection
- Stainless steel 1.4435 / 316L wetted parts with surface roughness Ra ≤ 0.8 µm
- IP67 and IP69 rated enclosure for protection against dust and water
- Supply voltage range 10 V DC to 35 V DC
- Electrical safety with protection class III and reverse polarity protection
- Fast response time: t50 ≤ 3.3 s, t90 ≤ 9.7 s
- Shock resistant up to 50 g, 6 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Food and beverage industry requiring hygienic sensor design
- Chemical and pharmaceutical process monitoring
- General temperature sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety and performance
- Complies with AS/NZS 61010 for measurement and control equipment safety
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient sensor operation minimizes power consumption
- High accuracy reduces process waste and improves energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK THTS-1AB520506MZ temperature sensor is available for immediate purchase, ideal for industrial and hygienic temperature measurement applications.
